CISCO IE-9310-26S2C-E SWITCH

Part No:	IE-9310-26S2C-E
Detail:	Switch, 22 x Gigabit SFP + 2 x combo 10/100/1000Base-T / 100/1000Base-FX SFP + 4 x Gigabit SFP (uplink), managed, rack-mountable
List Price:	~~US$8,470.14~~
Price:	$4,750.00
You Save:	$3,720.14 (44% OFF)
Condition:	Brand New Sealed
Availability:	Ask For ETA
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Properties
Specifications
Accessories
Shipping

Description

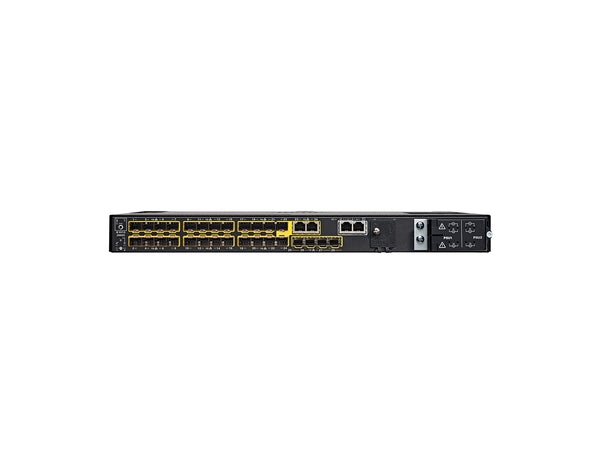

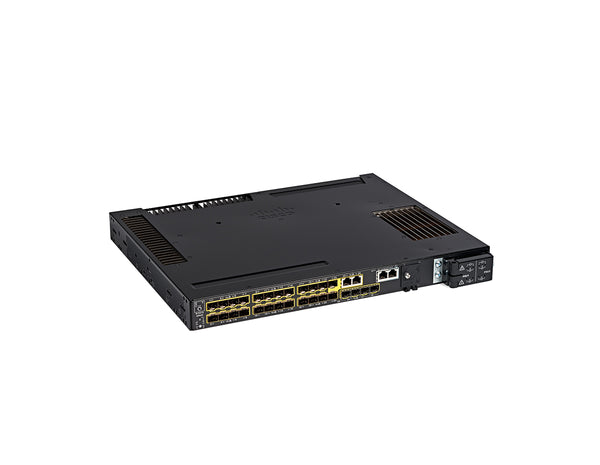

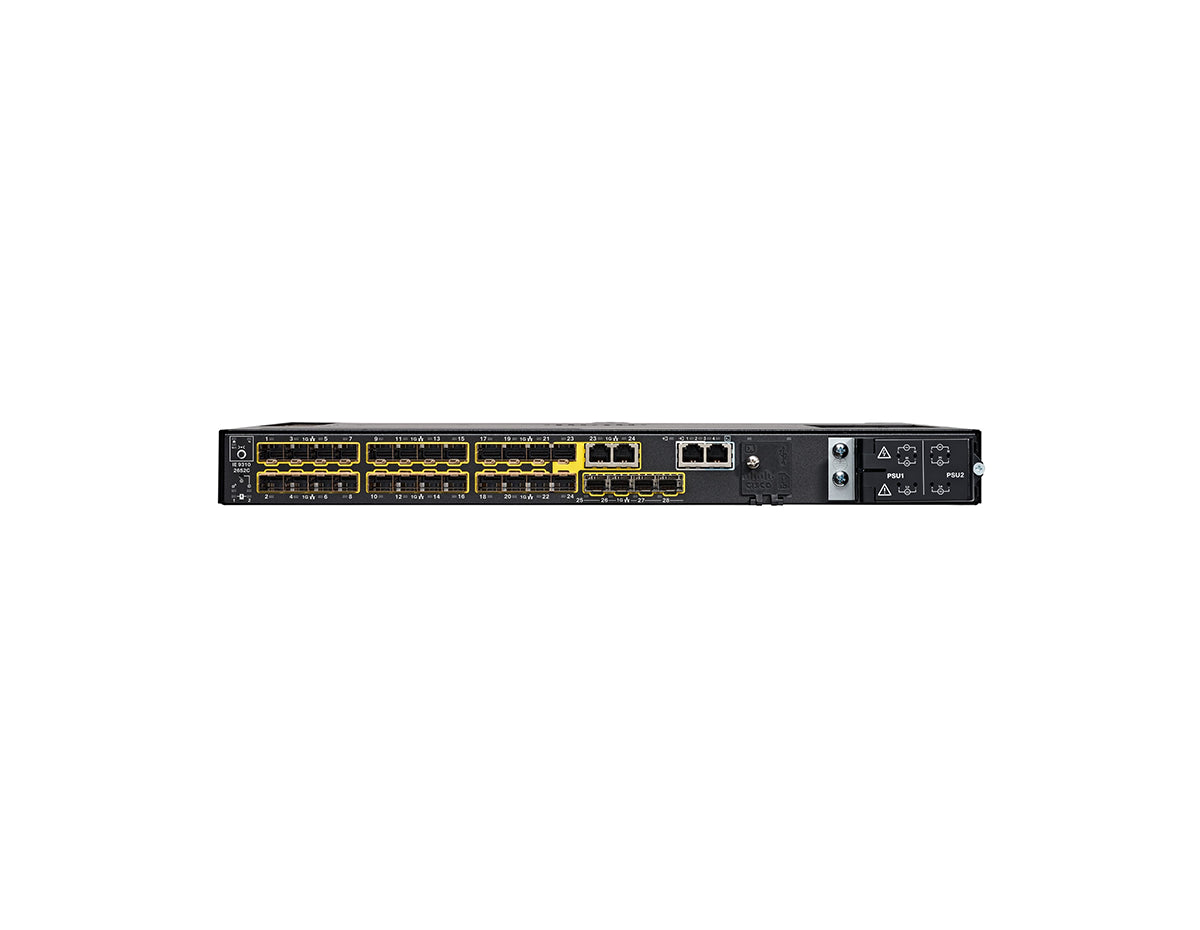

Cisco IE-9310-26S2C-E Industrial Ethernet Switch

The Cisco IE-9310-26S2C-E is a high-performance industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and mission-critical environments. This switch features 26 SFP ports and 2 combination SFP+ ports, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-9310-26S2C-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control. As a part of the Cisco Catalyst IE9300 Rugged Series, it comes with the Network Essentials license, providing essential capabilities for industrial applications.

Key Features:

26 x SFP Ports: Provides flexible and high-speed fiber connectivity for various industrial applications, ensuring stable network communication.
2 x Combination SFP+ Ports: Offers additional uplink options with high-speed 10 Gigabit connectivity, supporting bandwidth-intensive applications.
Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for challenging industrial environments.
Advanced Layer 2 and Layer 3 Features: Supports VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
High Availability: Offers redundancy features to ensure continuous network operation in mission-critical applications.

Technical Overview:

Recommended for: Industrial environments requiring robust fiber-based Ethernet connectivity with essential management and high availability.
Ports: 26 x SFP ports, 2 x combination SFP+ ports.
Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
Form Factor: Rugged, rack-mountable design suitable for space-constrained industrial environments.
Licensing: Includes Network Essentials for essential capabilities and features.

You can check the related tab for the Cisco IE-9310-26S2C-E datasheet.

Accessories

SD-IE-4GB=	4GB SD memory card for IE
CAB-STK-0.5M=	Cisco 0.5M stack cable
CAB-STK-1M=	Cisco 1M stack cable
RM-RGD-19IN=	Spare 19IN rack-mount kit
RM-RGD-23IN=	23IN NEBS rack-mount kit
RM-RGD-ETSI=	ETSI rack-mount kit
PWR-RGD-AC-DC-H	Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC
PWR-RGD-LOW-DC-H	Hazloc Power Supply Low DC 24-60V/10A
PWR-RGD-AC-DC-250	Hazloc Power Supply 100-240VAC/100-250VDC
PWR-RGD-AC-DC-400	Hazloc Power Supply 100-240VAC/100-250VDC, 400W

Specifications

Specifications	IE-9310-26S2C-E
DRAM	4 GB
Flash Memory	8 GB
Flash (user accessible)	2.5 GB
Switching capacity	56 Gbps
Forwarding rate	28 Mpps
MAC addresses	16000
Number of queues / port	8 egress
MTBF (hours)	435,092
Internet Group Management Protocol (IGMP) multicast groups	1000
VLANs	1024
Cisco StackWise ports	-
Operating Temperature	-40° to 70°C
Safety	Information technology equipment: UL/CSA 60950-1 EN 60950-1, CB to IEC 60950-1 with all country deviations UL/CUL 62368-1, CB to IEC62368-1 with country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): CB report and certificate to IEC 61010-2-201 UL/CSA 61010-2-201 CSA C22.2, No.142 Hazardous locations: UL 121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC, ec) EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC, ec)
Electromagnetic emissions	FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A CNS159366 EN 300 386 EN 61000-3-2 Harmonic Current Emissions EN 61000-3-3 Voltage Fluctuations and Flicker KS C9832
Environmental	Reduction of Hazardous Substances (ROHS) 5

Properties

Properties	IE-9310-26S2C-E
Description	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE
Product Family	Cisco Catalyst IE9300 Rugged Series
Product Type	Ethernet Switch
Number of Ports	28
Downlinks	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)
Uplinks (SFP/SFP+)	4 ports 1000M
Cisco IOS Software	Network Essentials
Optional Removable Storage	USB, SD Card
Console ports	1 RS-232 (via RJ-45), 1 Micro USB
Power inputs	Dual AC/DC power inputs
Power consumption	61W
Fans	Fanless
Dimensions W/ Default Power Supply	1.73 X 17.5 X 14 (with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H)
Rack Mountable	Yes
