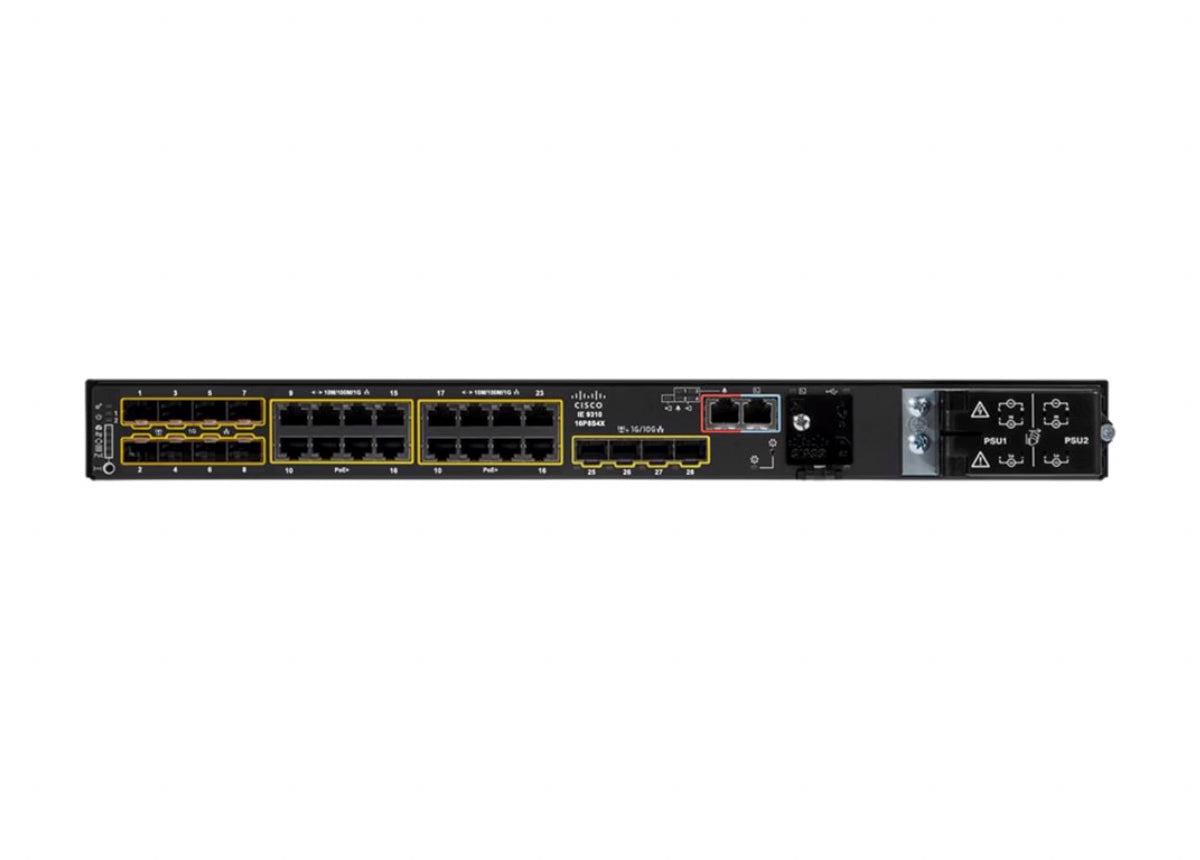

Cisco Catalyst IE-9310-16P8S4X-E Rugged Ethernet Switch 16 port PoE+

Name: Cisco Catalyst IE-9310-16P8S4X-E Rugged Ethernet Switch 16 port PoE+
Brand: Cisco
SKU: IE-9310-16P8S4X-E-NEW
Price: 4816.96 USD
Availability: InStock

Part Number: IE-9310-16P8S4X-E

Technical Details

28 ports, 16x PoE+ Gigabit, 8x SFP, 4x 1/10G uplinks, 720W PoE budget, fanless rugged design

$8,758.12

$4,816.96

45% OFF

You Save: $3,941.16

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Ruggedized Gigabit Switching with Advanced PoE+

The Cisco Catalyst IE-9310-16P8S4X-E Rugged Series Switch is purpose-built for demanding industrial networks. With 28 total ports, high PoE+ capacity, and secure 10G uplinks, it delivers resilient connectivity for critical infrastructure, automation, and extended enterprise environments.

Key Benefits & Features

Industrial-grade design: Operates reliably from -40°C to 75°C, fanless and hardened for vibration, shock, and surge immunity.
High-density PoE+: Supports up to 16 Gigabit PoE+ ports with a maximum 720W budget, powering cameras, APs, and IoT devices.
Flexible uplinks: Equipped with 8 SFP ports and 4x 1/10G SFP+ uplinks for high-speed expansion and redundancy.
Advanced security: Integrated Cisco TrustSec, MACsec-256, and zero-trust remote access with Cisco Secure Equipment Access.
Smart management: Runs Cisco IOS XE with WebUI, Catalyst Center integration, and full NetFlow for traffic visibility.

Ideal Use Cases

Manufacturing plants requiring high-availability Ethernet with PoE-powered automation devices.
Smart cities and transportation systems demanding ruggedized, high-performance networking.
Oil, gas, and mining operations needing reliable, hardened connectivity in harsh environments.
Energy and utility facilities deploying SCADA and precision-timed industrial systems.

Technical Specifications

Total Ports: 28 (16x 10/100/1000M PoE+, 8x 100/1000M SFP, 4x 1/10G SFP+ uplinks)
PoE Power Budget: Up to 720W with dual 400W supplies
Switching Capacity: 56 Gbps full-duplex
Forwarding Rate: 95.23 Mpps
Operating Temperature: -40°C to 75°C (fanless)
Memory: 4 GB DRAM, 8 GB Flash
Form Factor: 1RU rack-mount, fanless design
Security: MACsec-256, TrustSec, Cisco Cyber Vision, Secure Boot
Software: Cisco IOS XE with Network Essentials
Dimensions & Weight: 1.72 x 17.5 x 14.0 in, 10.6 lb

Empower Your Industrial Network Today

Deploy the Cisco Catalyst IE-9310-16P8S4X-E for resilient, secure, and high-speed industrial connectivity. Order now to strengthen your critical infrastructure.

Properties

Model	Cisco Catalyst IE-9310-16P8S4X-E
Product Type	Rugged Industrial Ethernet Switch
Total Ports	28
Downlink Ports	16 × 10/100/1000M PoE+ (RJ45), 8 × 100/1000M SFP
Uplink Ports	4 × 1/10G SFP+
PoE Capability	Up to 480W with dual 400W PSUs
Software License (default)	Network Essentials
Operating System	Cisco IOS XE
Mounting	Rack-mountable, 1RU
Cooling	Fanless, convection cooled
Operating Temperature	−40 °C to 75 °C (−40 °F to 167 °F)
IP Rating	IP30 (per EN60529)
Power Consumption	105W (chassis only)
Power Supply Options	PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Memory	4 GB DRAM, 8 GB flash (2.5 GB user accessible)
MTBF	265,827 hours
Dimensions (H × W × D)	1.72 × 17.5 × 14.0 in (with 150W PSU) / up to 15.57 in (with 400W PSU)
Weight	10.6 lb (4.81 kg)

Specifications

Forwarding Rate	95.23 Mpps
Switching Bandwidth	128 Gbps (full duplex)
Unicast MAC Addresses	24,000
VLAN IDs	4096 (1024 active VLANs)
IPv4 Routes	8192 direct, 7000 indirect
IPv6 Routes	3500 indirect
ACL Entries	1536 (PACL, VACL, RACL)
Queues per Port	8 egress
SD Card Capacity	16 GB (optional)
Industrial Protocols	EtherNet/IP (CIP), PROFINET, ModBus TCP, GOOSE
Security Features	Secure Boot, MACsec-256, TrustSec, Cyber Vision, Secure Equipment Access
Compliance	EN 55032 Class A, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201, ATEX Zone 2, IECEx Zone 2
Humidity	5% to 95% non-condensing
Shock / Vibration	IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Altitude	Up to 15,000 ft (4572 m) without derating

Accessories

Included	Rack-mount kit (19-inch), User Documentation
Optional – Power Supplies	PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Optional – Cables	CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)
Optional – Rack Kits	RM-RGD-19IN, RM-RGD-23IN, RM-RGD-ETSI
Optional – Memory	SD-IE-16GB (16GB SD card)
