CISCO IE-3400H-8FT-A SWITCH
| Model: | IE-3400H-8FT-A |
| Detail: |
|
| List Price: | |
| Price: | $3,150.00 |
| You Save: | $5,398.66 (63% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

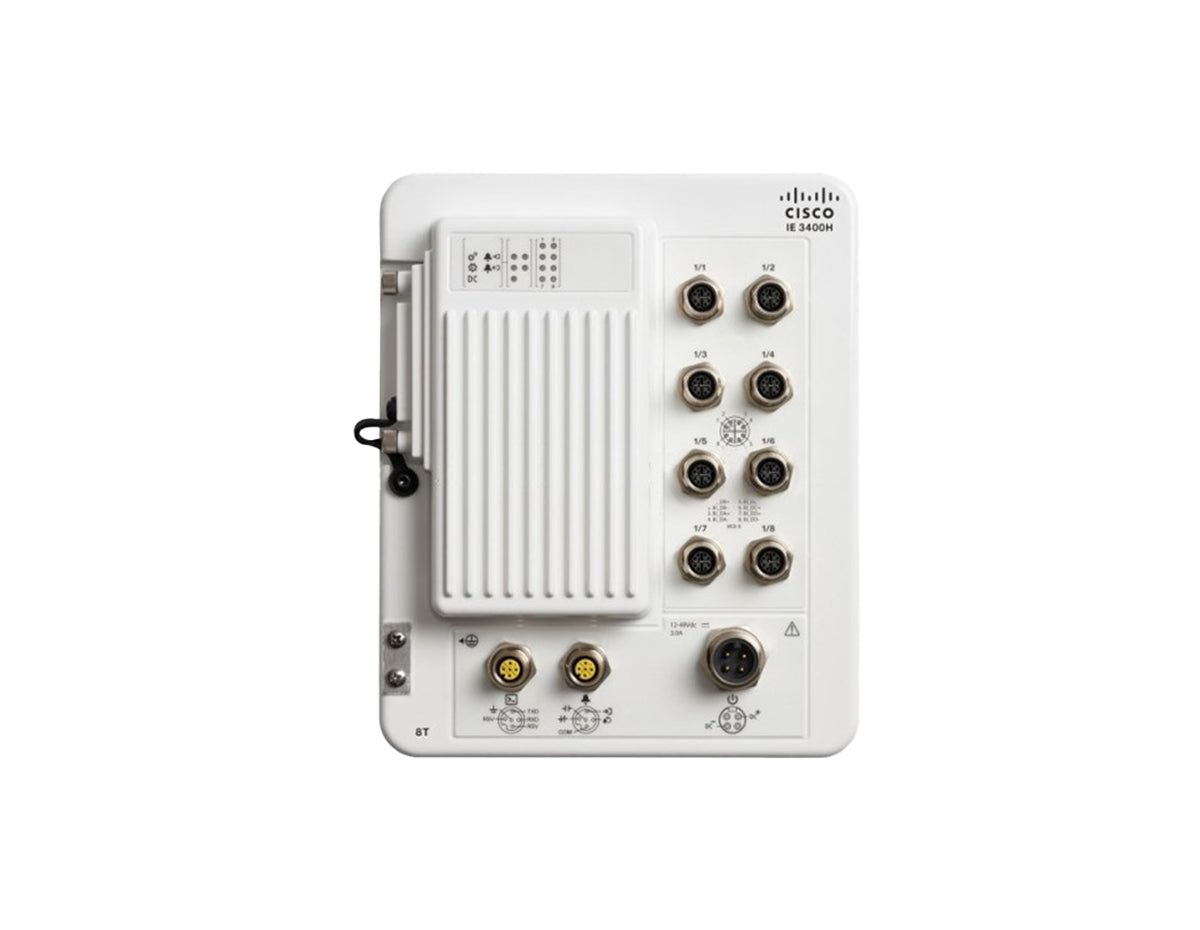

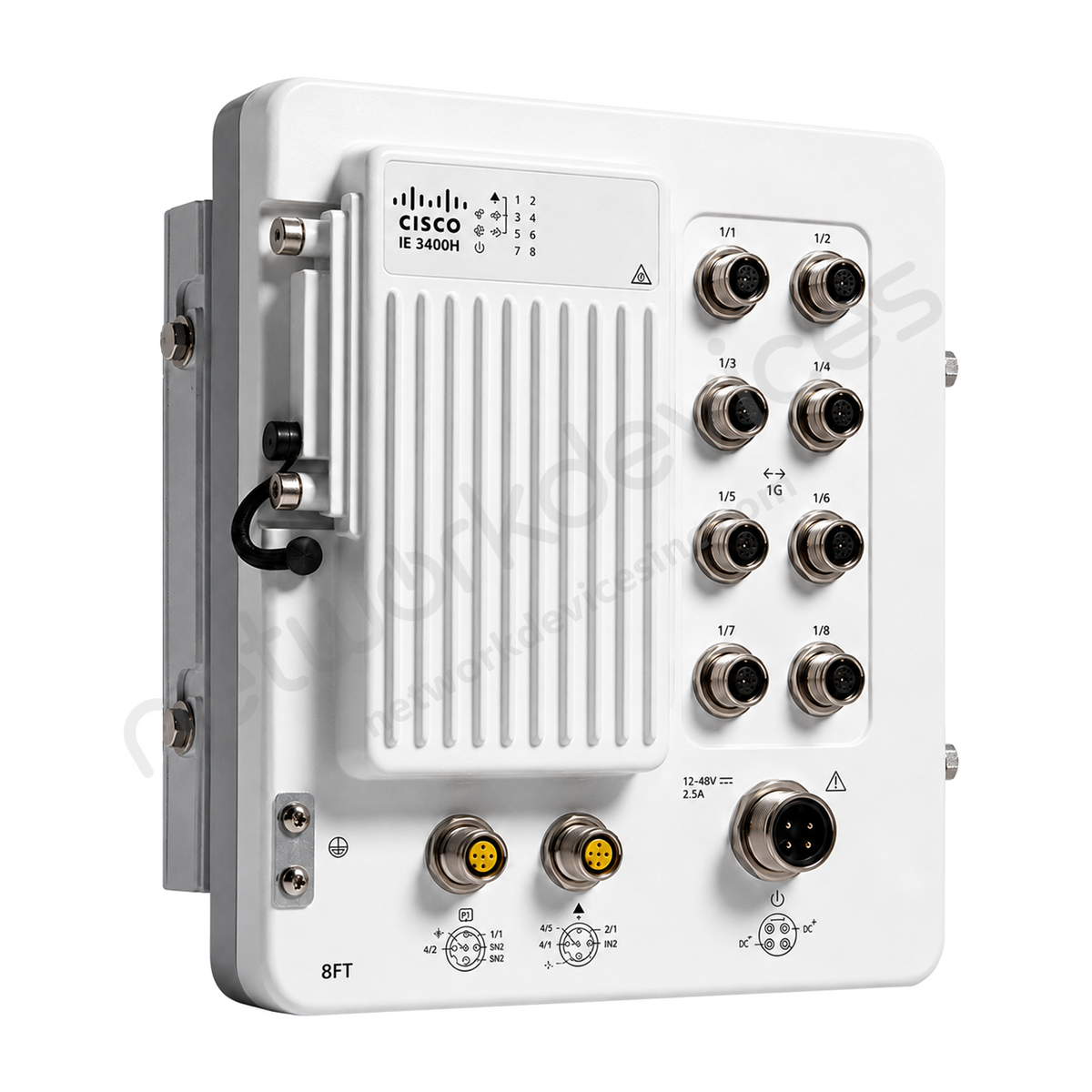

Cisco IE-3400H-8FT-A Industrial Ethernet Switch
The Cisco IE-3400H-8FT-A is a high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh and demanding environments. This switch features 8 Fast Ethernet ports, making it an ideal solution for connecting critical industrial devices such as sensors, controllers, and automation systems. The IE-3400H-8FT-A is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 8 x Fast Ethernet Ports: Provides reliable and efficient data connectivity for various industrial devices, ensuring stable network communication.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it suitable for challenging industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
- High-Availability Design: Supports redundancy features to ensure continuous network operation in mission-critical applications.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management and high-availability features.
- Ports: 8 x Fast Ethernet ports.
- Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3400H-8FT-A datasheet.
Accessories
| PWR-IE160W-67-DC= | IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W |
Specifications
| Specifications | IE-3400H-8FT-A |
| Forwarding rate |
Line rate for all ports for all packet sizes
|
| Number of queues | 8 |
| Unicast MAC addresses | 8000 |
| IGMP multicast groups | 1000 |
| No. of Vlans | 256 |
| IPv4 Indirect routes | 2000 |
| IPv6 Indirect routes | 512 |
| Spanning Tree Protocol instances | 128 |
| Access Control Entries (PACLs) | 3024 |
| DRAM | 4 GB |
| Flash (user accessible) | 1.5 GB |
| SD card capacity2 | 4 GB |
| Jumbo Frames | 2000 bytes |
| MTBF | 489,458 |
| Operating temperature | -40°C to +85°C |
| Industry standards |
EN 61000-6-1 Immunity standards for light industrial ENV
EN 61000-6-2 Immunity standards for industrial ENV EN 61000-6-4- Emission standard industrial ENV EN 61326-1 Industrial control ODVA Industrial Ethernet/IP PROFINET certification AREMA C and S section 11, 19 |
| IEEE standards |
IEEE 802.1D MAC Bridges, STP
IEEE 802.1p Layer 2 COS prioritization IEEE 802.1q VLAN IEEE 802.1s MSTP IEEE 802.1w RSTP IEEE 802.1X Port Access Authentication IEEE 802.1AB LLDP IEEE 802.3ad Link Aggregation (LACP) "IEEE 1588v2 PTP IEEE 802.3x full duplex on 10BASE-T IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification" |
Properties
| Properties | IE-3400H-8FT-A |
| Description |
Catalyst IE3400 Heavy Duty w/ 8 FE M12 interfaces, IP67, Network Advantage
|
| Product Family | IE3400 Heavy Duty Series Switches |
| Product Type | Industrial Ethernet Switch |
| Total M12 ports | 8 |
| 10/100 Fast Ethernet (D-code) ports | 8 |
| 10/100/1000 Gigabit Ethernet (X-code) ports | - |
| Default IOS-XE feature set | Network Advantage |
| Removable storage | SD card |
| Alarm2, 3 | 1 alarm output relay, 1 alarm input |
| Console ports2 | 1 |
| Power input | Mini-change, (single power source) |
| Input voltage range (Absolute) | 9.6 to 60VDC |
| Input current @ (9.6V / 60V) | 3.0A/0.51A |
| Power consumption @ (9.6V / 60V) | 28.8W/30.6W |
| Dimensions | 9.58 x 7.90 x 3.15 |
| Mounting | Wall mount |
