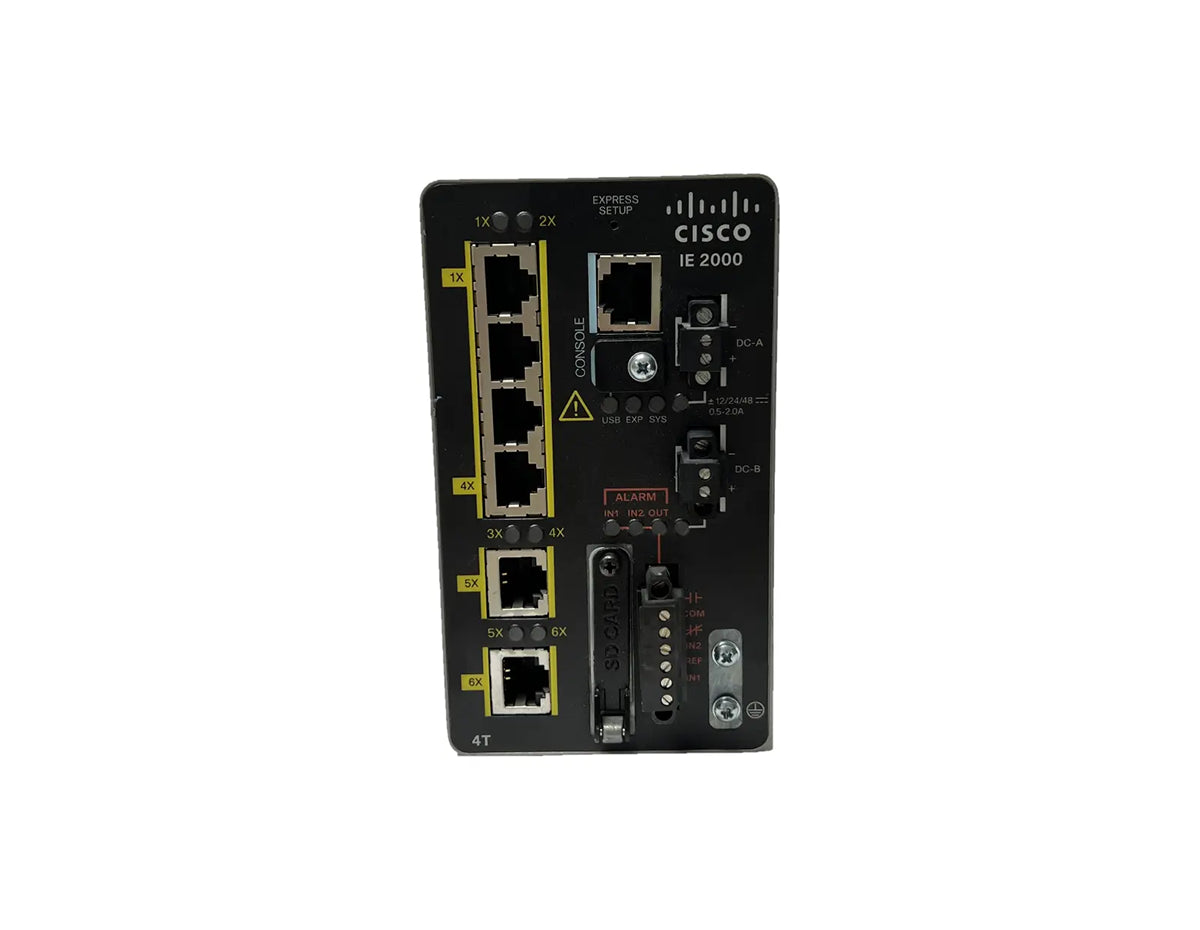

Cisco IE-2000-4T-L Switch

Name: Cisco IE-2000-4T-L Switch
Brand: Cisco
SKU: IE-2000-4T-L-NEW
Price: 589.00 USD
Availability: InStock

Part Number: IE-2000-4T-L

Technical Details

Switch Managed 6 × 10/100 DIN-rail mountable

$1,307.00

$589.00

55% OFF

You Save: $718.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Cisco IE-2000-4T-L Industrial Ethernet Switch

The Cisco IE-2000-4T-L is a compact, rugged industrial Ethernet switch designed for harsh environments. This LAN Lite model provides six Fast Ethernet copper ports (no SFP/combo), meeting strict industrial standards while offering essential Layer 2 manageability and protocol support.

Key Features:

6 × FE RJ-45 ports: Reliable copper access for field devices.
Industrial hardening: -40°C to +70°C operation (extended/type-test per datasheet) with high shock/vibration tolerance.
Managed L2 stack: VLANs, QoS, IGMP snooping, REP/MRP, monitoring (SPAN/RSPAN).
Simple operations: Fast Boot, zero-touch discovery, SD-card auto-sync, Web/CLI/SNMP management.
Compact DIN-rail form factor: Fits space-constrained panels and cabinets.

Technical Overview:

Software license: LAN Lite; upgradable to LAN Base (Type 3).
Performance: 7.6 Gbps switching / 3.8 Gbps forwarding; 5.66 Mpps; 2 MB egress buffer.
Environment: -40°C to +70°C typical; -40°C to +85°C type test (16 h); up to 15,000 ft altitude.
Power: Typical consumption 9.5–15 W; external AC/DC supplies available.
Security/management: SSHv2, SNMPv3, TACACS+/RADIUS; SmartPort profiles.

You can check the related tab for the Cisco IE-2000-4T-L datasheet.

Properties

Properties	Cisco IE-2000-4T-L
Description	IE2000 switch with 6 FE copper ports (LAN Lite license)
Product Family	Industrial Ethernet 2000
Product Type	Ethernet Switch
Switches
Total Ports	6
RJ45 Ports	6 FE
Combo Ports (SFP or RJ45)	–
SFP Ports	–
Manufacturing License	LAN Lite
Type of Possible Upgrade	3
IEEE 1588	–
NAT	–
PoE(+)	–
Conformal Coating	–
Type of possible upgrade legend
1	LAN Base to IP Lite Cisco IOS Software Upgrade
2	Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3	LAN Lite to LAN Base Cisco IOS Software Upgrade
4	LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
U	Upgradable to L2NAT via Enhanced LAN Base or IP Lite license
Software Features
LAN Lite license	Baseline features
Layer 2 Switching	IEEE 802.1, 802.3, 802.3at, 802.3af (see datasheet), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security	SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast	IGMPv1/v2/v3 Snooping, IGMP filtering, IGMP Querier
Management	Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet	EtherNet/IP, PROFINET v2
Dimensions (H×W×D)	5.1″H × 2.95″W × 4.51″D (130 mm H × 74.9 mm W × 115 mm D)
Weight	2.45 lb (1.11 kg)

Specifications

Specifications	IE-2000-4T-L
DRAM	256 MB DRAM with ECC memory
Flash Memory	64 MB
Hardware	IEEE 1588v2 FPGA; 1 GB removable SD flash memory card (optional); Mini-USB connector
Max. Forwarding Bandwidth	3.8 Gbps
Max. Switching Bandwidth	7.6 Gbps
Max. Forwarding Rate	5.66 Mpps
Egress Buffer	2 MB
Unicast MAC Addresses	8000
Internet Group Management Protocol (IGMP) Multicast Groups	255
Max. VLANs	1005
IPv4 MAC Security ACEs	384 (default TCAM template) bidirectional; 128 NAT translation entries
IPv4 Routing	3500
IPv6 Routing	1750
Alarm	Alarm I/O: two alarm inputs (dry contact) and one alarm output relay
Power consumption	9.5–15 W
Connectors and cabling	100BASE-FX MMF (2 km), -LX SMF (10 km), -ZX SMF (100 km), BX10 SMF (10 km); SFP and CWDM SFP-based ports: LC fiber connectors 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Mean Time Between Failure (MTBF)	374,052 hours (42.7 years)
Operating Temperature	-40°C to +70°C (vented enclosure – 40 LFM Air Flow); -40°C to +60°C (sealed enclosure – 0 LFM Air Flow); -34°C to +75°C (fan/blower – 200 LFM Air Flow); -40°C to +85°C (IEC 60068-2-2 environmental type testing, 16 hours)
Storage Temperature	-40°C to +85°C
Operating Altitude	Up to 15,000 ft
Safety Certifications	UL/CSA 60950-1; EN 60950-1; CB to IEC 60950-1 (with country deviations); NOM-019-SCF1; CE Marking
EMI Emissions and Immunity Compliance	FCC 47 CFR Part 15 Class A; EN 55022 Class A; VCCI Class A; RoHS compliance; AS/NZS CISPR 22 Class A / CISPR 24; CISPR11/22 Class A; ICES 003 Class A; KCC; CE Marking; C-Tick (Australia); Russia/Brazil certifications; IEC/EN 61000-4-2/3/4/5/6/8/9/10/11/29; IEC/EN 61000-6-1/2/4; EN 61326
Shock and Vibration	IEC 60068-2-27 (Operational shock: 30G 11 ms, half-sine); IEC 60068-2-27 (Non-operational shock: 55–70G, trapezoidal); IEC 60068-2-6 / -2-64; EN 61373
Industry Standards	UL508; CSA C22.2 No. 142; EN 61131-2; Protective coating (specific models only); Marine DnV; Substation KEMA (IEEE 1613, IEC 61850-3); Railway EN 50155; EN 50121-3-2/-4; NEMA TS-2; ABB Industrial IT certification; IP30; ODVA EtherNet/IP support; PROFINET v2.3 support
Hazard Locations (* Cabinet enclosure required)	ANSI/ISA 12.12.01 (Class 1, Div 2 A–D) ; EN 60079-0, -15 ATEX (Class 1, Zone 2 A–D)
Humidity	IEC 60068-2-52 (salt fog mist, test Kb) marine environments; IEC 60068-2-3; IEC 60068-2-30; Relative humidity: 5% to 95% non-condensing

Accessories

Accessories and License Upgrade PIDs
SD-IE-1GB=	1 GB Ruggedized SD memory card (must be ordered, not included by default)
STK-RACK-DINRAIL=	19 in. DIN Rail mount kit
IE-LICENSE-SPARE	Spare license for software upgrade (L2 to L3 features, MRP ring, etc)
L-IE2000-L-B=	IE2000 LAN Lite to LAN Base e-license
L-IE2000-B-E=	IE2000 LAN Base to Enhanced LAN Base e-license
LIC-IE2000-IP-L=	IE2000 LAN Base or Enhanced LAN Base to IP Lite e-license
LIC-IE2000-L-IP=	IE2000 LAN Lite to IP Lite e-license
LIC-MRP-MANAGER=	MRP Ring Manager license
LIC-MRP-Client=	MRP Ring Client license
Wallmount-IE2k-04=	Wall mount kit accessory for IE2000 4-ports downlink PID
IE 2000 Series Power Supplies
Product Number	Wattage
PWR-IE50W-AC=	50W AC Power Supply
PWR-IE50W-AC-L=	50W AC-L Power Supply
PWR-IE65W-PC-AC=	65W AC Power Supply
PWR-IE65W-PC-DC=	65W DC Power Supply
PWR-IE170W-PC-AC=	170W AC Power Supply
PWR-IE170W-PC-DC=	170W DC Power Supply
PWR-IE240W-PCAC-L=	240W AC-L Power Supply
PWR-IE480W-PCAC-L=	480W AC-L Power Supply
