Consolidated SD-Branch Security with PoE, 4G LTE, and Onboard Storage

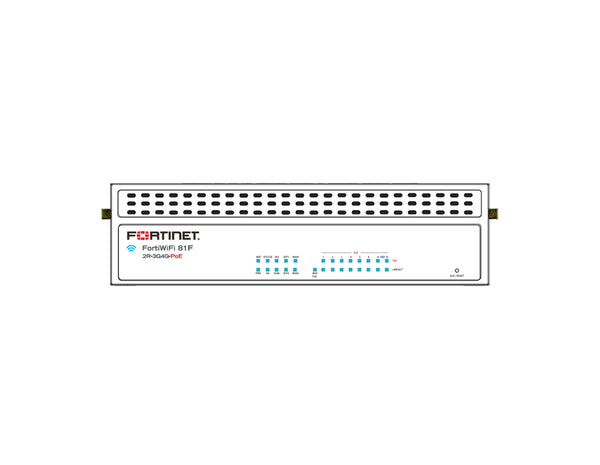

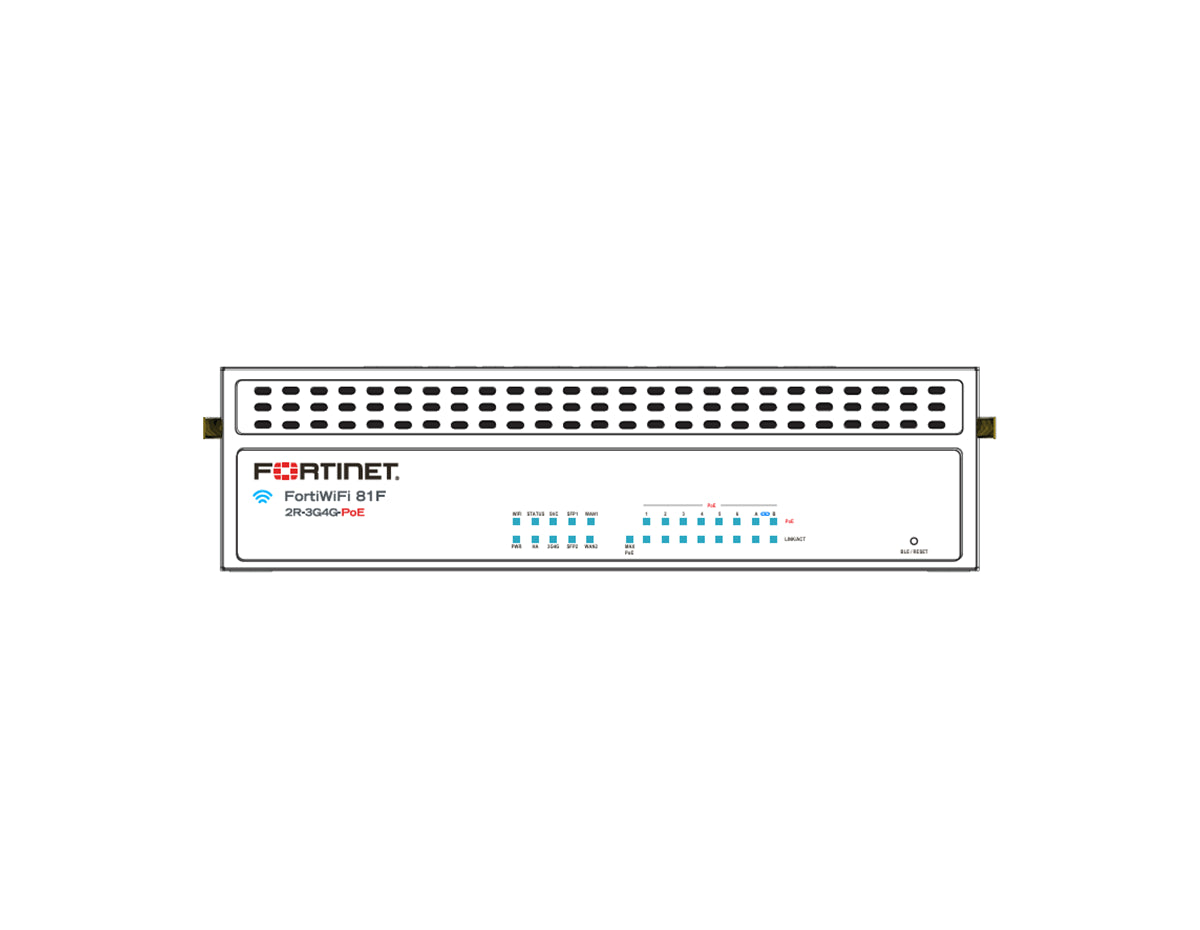

The FortiWiFi 81F-2R-3G4G-POE is a flagship convergence appliance designed for modern branch offices. It seamlessly integrates unified network security, high-density PoE+ switching, Wi-Fi 6 wireless access, and multi-WAN redundancy. This comprehensive 3-Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) bundle ensures your network remains shielded against sophisticated cyber threats. The appliance features 128GB of onboard SSD storage for intensive local logging and reporting. Driven by the purpose-built SP4 ASIC, it provides eight GE PoE+ ports and an embedded 3G/4G/LTE modem to guarantee always-on connectivity.
This all-in-one solution streamlines branch infrastructure by eliminating the need for separate power injectors and cellular routers. It delivers resilient connectivity through diverse WAN options and provides high-speed Wi-Fi 6 access with hardware-accelerated security inspection.
Advanced SD-WAN Performance and Converged Security with UTP
- 3-Year Unified Threat Protection (UTP): Includes FortiCare Premium and essential FortiGuard services like IPS, Anti-Malware, URL/DNS Filtering, and Anti-Spam.
- Superior IPv4 Firewall Throughput: Delivers up to 10/10/7 Gbps (1518/512/64 byte UDP) for wire-speed security processing.

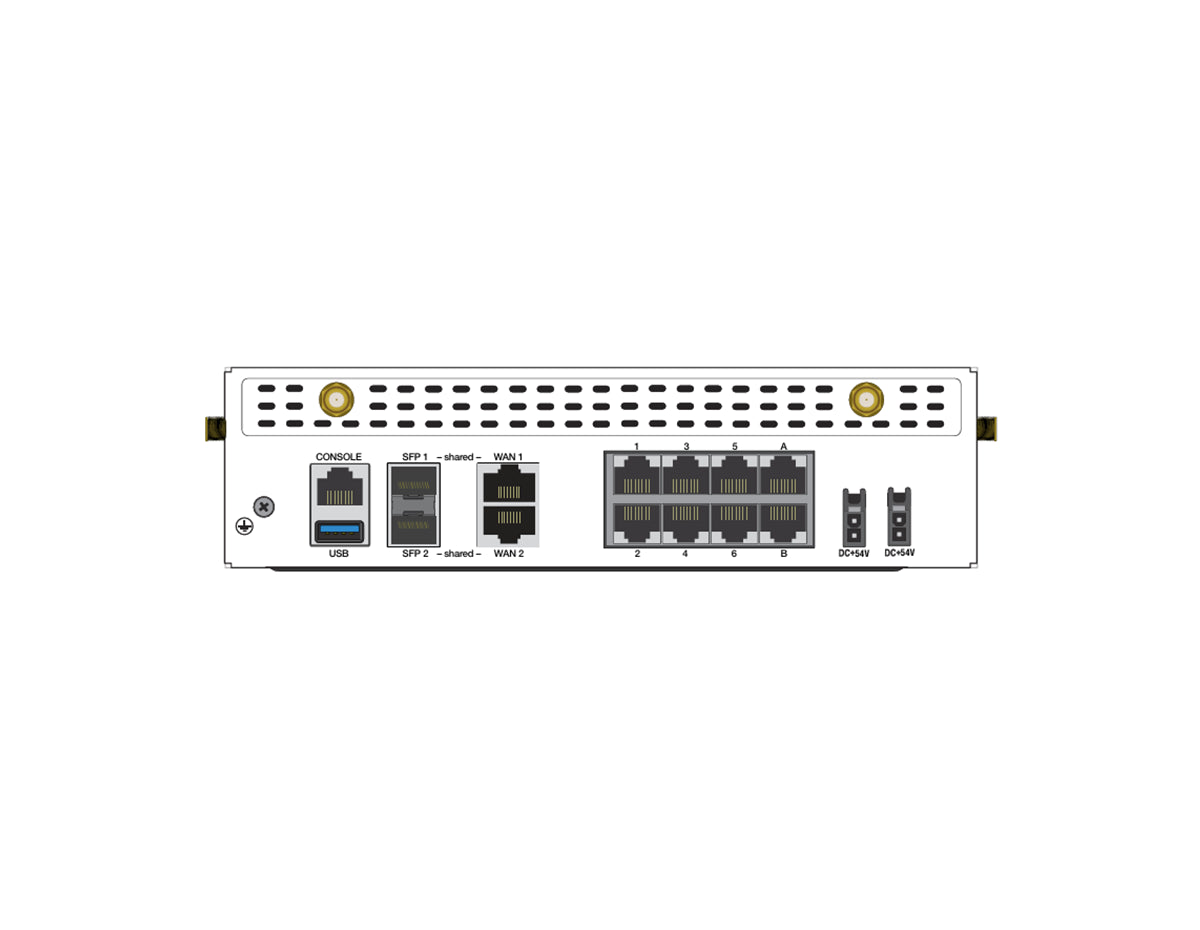

- Integrated PoE+ Switching: 8x GE RJ45 PoE+ ports (including 2x FortiLink ports) with a robust 96W total budget, supporting up to 30W per port (802.3at).
- Embedded 4G LTE WAN: Built-in 3G/4G/LTE modem with dual Nano-SIM slots for automated failover and WAN redundancy.
- Dedicated 128GB Onboard SSD: Reliable internal storage for local data caching and system logging.
- Enterprise Wi-Fi 6: Dual-band 802.11ax wireless supported by a third scanning radio for continuous spectrum monitoring and security.
Ideal Use Cases
- All-in-One Branch Office: Perfect for retail or satellite offices needing integrated power for cameras/APs and cellular backup.
- High-Availability Remote Sites: Ensures business continuity in areas where wired broadband is unreliable by utilizing LTE failover.
- Secure SD-Branch: Simplifies complex network architectures by managing security, LAN, and WLAN through a single FortiOS interface.
Technical Specifications Summary
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 10 / 10 / 7 Gbps
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- IPsec VPN Throughput: 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- PoE Budget: 96W total (802.3at support)
- Cellular: Integrated 3G/4G/LTE modem with dual Nano-SIM support.
- Dimensions / Weight: 60 x 216 x 178 mm; 1.4 kg (3.1 lbs)
Upgrade Your Network Security
Modernize your branch infrastructure with the high-performance FortiWiFi 81F-2R-3G4G-POE and 3-Year UTP bundle.
