Consolidated SD-Branch Security with PoE, 4G LTE, and Onboard Storage
The FortiWiFi 81F-2R-3G4G-POE (FWF-81F-2R-3G4G-POE-A) is a high-performance convergence appliance designed for modern branch offices. It integrates industry-leading network security, SD-WAN, switching, and Wi-Fi 6 into a single desktop form factor. This bundle includes 3 Year of Enterprise Protection, combining FortiCare Premium with advanced FortiGuard security services for comprehensive threat defense. Featuring 128 GB of onboard SSD storage, this model is optimized for local logging and intensive security reporting.
Powered by the specialized Fortinet SP4 ASIC, the appliance manages complex security tasks without compromising network speed. With 8x GE PoE+ ports and an embedded 3G/4G/LTE modem, it simplifies infrastructure by eliminating the need for separate power injectors and external cellular routers. It ensures business continuity through automated failover between broadband and cellular links while providing secure, high-speed wireless connectivity.
Key Benefits
- 3-Year Enterprise Protection: Gain access to FortiCare Premium and a full suite of FortiGuard services, including IPS, Anti-Malware, URL/DNS Filtering, and AI-based Inline Malware Prevention.
- 128GB Onboard SSD: Provides dedicated internal storage for reliable local logging, data buffering, and enhanced system performance.
- Integrated PoE+ Switching: Includes 8x GE PoE+ ports with a 96W power budget to directly power IP phones, cameras, and access points.
- Embedded 4G LTE WAN: Features a built-in cellular modem with dual Nano SIM slots for reliable WAN redundancy and automatic failover.
- Advanced Wi-Fi 6 Performance: Utilizes a dual-band 802.11ax radio with a dedicated scanning radio to provide high-speed access and continuous security monitoring.
- Hardware-Accelerated Security: The SP4 ASIC delivers up to 10 / 10 / 7 Gbps firewall throughput and 6.5 Gbps IPsec VPN performance, ensuring rapid application access for branch users.
Ideal Use Cases
- Secure SD-Branch: Perfect for locations requiring a single box solution that provides security, wireless, and power for networked devices.
- Remote and Retail Sites: Ensures high availability with 4G LTE failover in areas where wired broadband may be unstable.
- Compliance-Focused Deployments: The combination of Enterprise Protection and local SSD logging supports strict regulatory and data retention requirements.
Technical Specifications Summary
- Security Performance: IPS 1.4 Gbps; NGFW 1 Gbps; Threat Protection 900 Mbps.
- Firewall Performance: 10 / 10 / 7 Gbps (1518 / 512 / 64 byte UDP) with ultra-low 3.23 μs latency.
- VPN and Capacity: 6.5 Gbps IPsec VPN throughput; supports up to 200 concurrent SSL-VPN users.

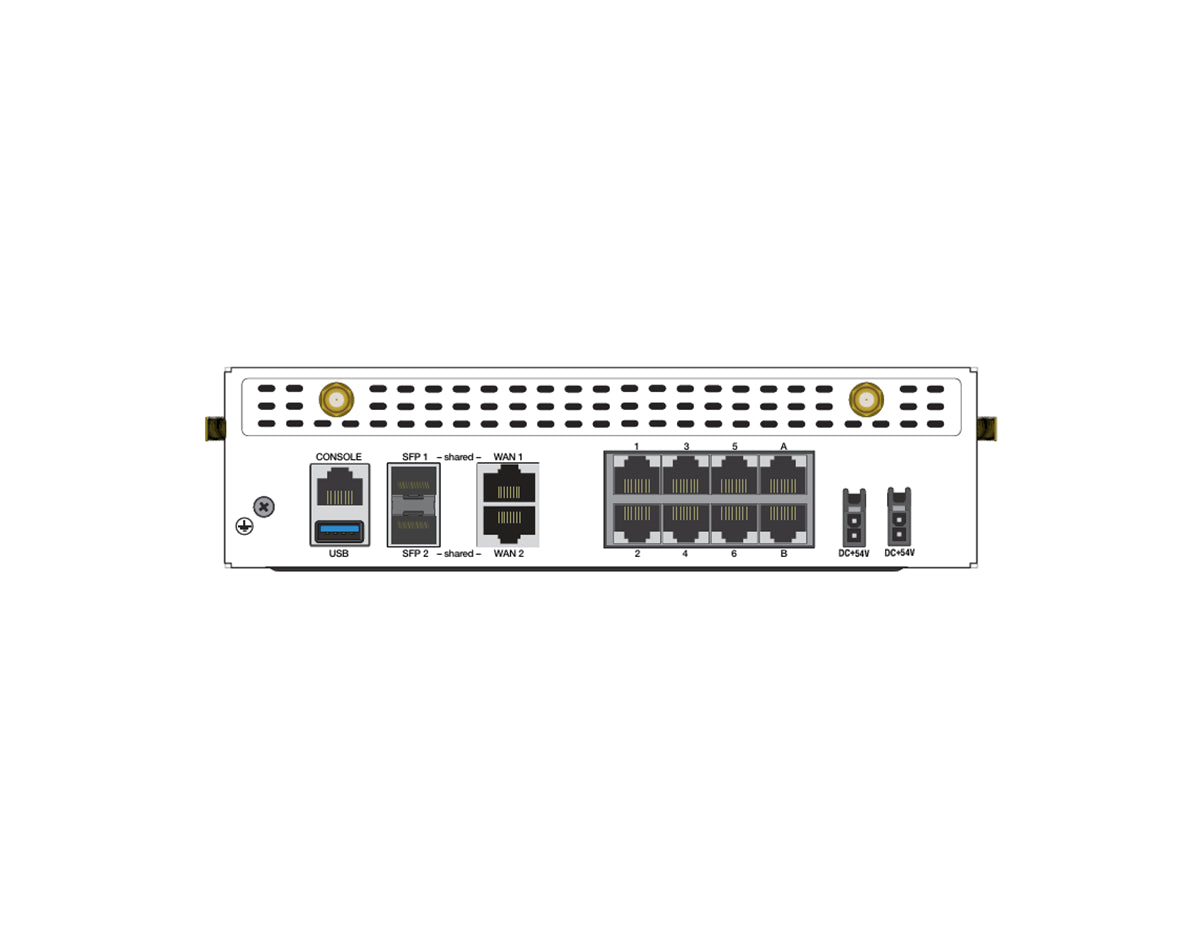

- Connectivity: 2x GE RJ45/SFP shared media pairs; 8x GE RJ45 PoE+ ports; 1x USB 3.0; 1x RJ45 console.
- Wireless and Cellular: Wi-Fi 6 (802.11ax) dual-band radio plus scanning radio; integrated 3G/4G/LTE modem with dual Nano SIM support.
- Physical and Environmental: Compact desktop form factor; 60 x 216 x 178 mm; 1.4 kg; operating range 0 to 40 deg C.
Upgrade Your Network Security
Simplify your branch infrastructure and fortify your perimeter with the FortiWiFi 81F-2R-3G4G-POE and 3-Year Enterprise Protection bundle.
