Consolidated SD-Branch Security with PoE, 4G LTE, and Onboard Storage

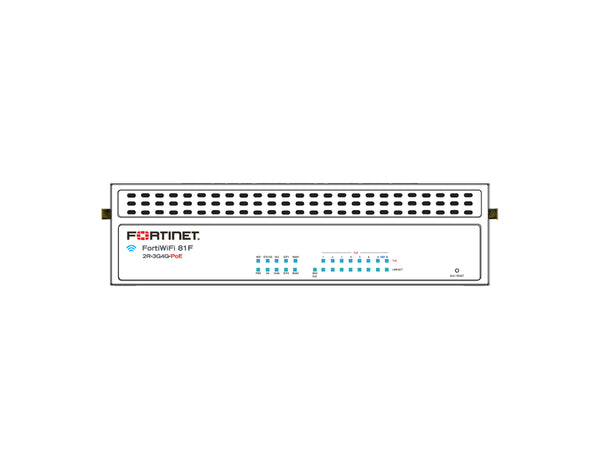

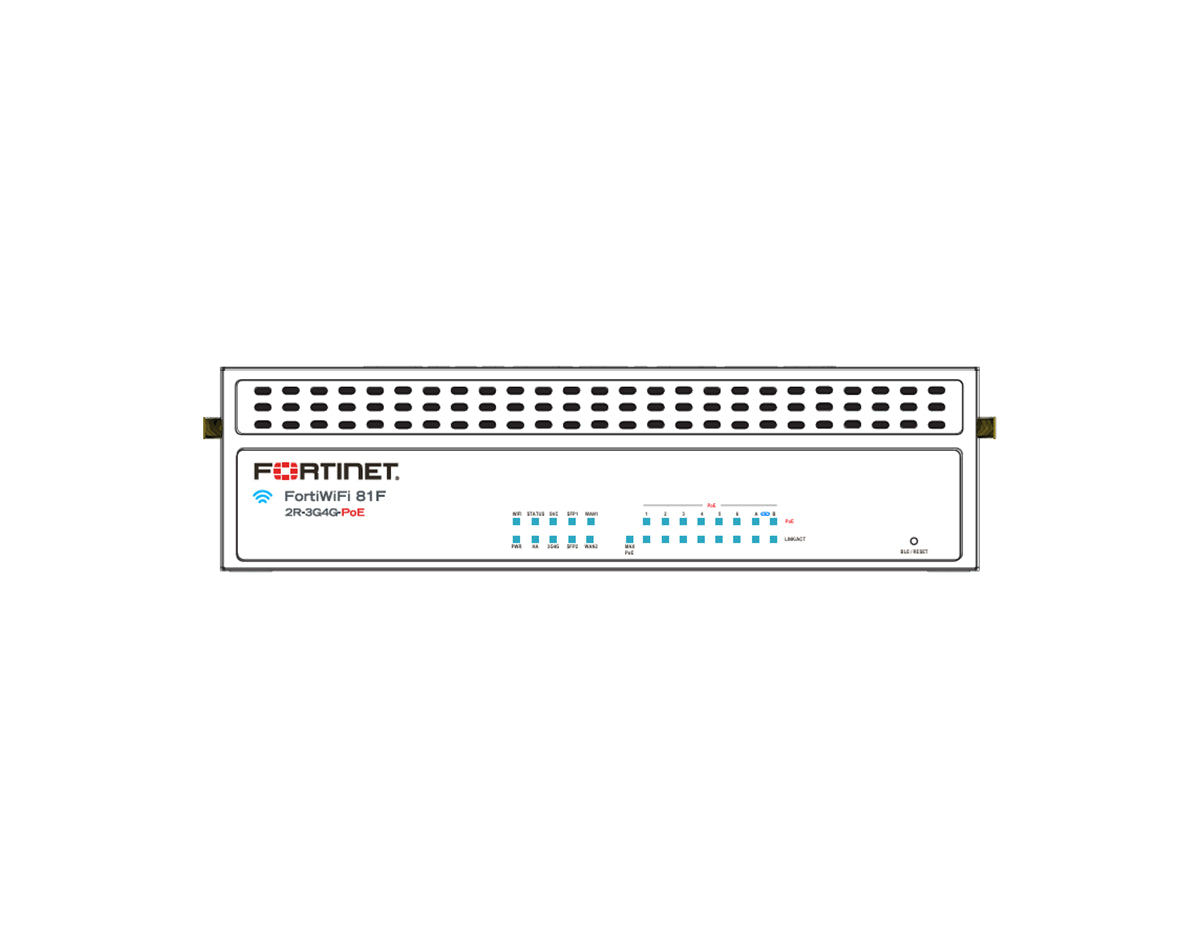

The FortiWiFi 81F-2R-3G4G-POE (FWF-81F-2R-3G4G-POE-A) is the ultimate convergence appliance for branch offices, combining network security, switching, wireless access, and multi-WAN redundancy. The appliance features 8x PoE+ ports with a 96W budget, enabling simplified deployment of connected devices like IP phones and access points. It includes 128GB of SSD storage for local logging and reporting. Powered by the specialized SD-WAN ASIC, it delivers high-performance IPv4 firewall throughput up to 10/10/7 Gbps and accelerates deep security inspection.
The integrated dual-band Wi-Fi 6 radio and embedded 3G/4G/LTE cellular modem provide both high-speed local access and reliable WAN failover, ensuring business continuity without needing external modems or injectors.
Key Benefits

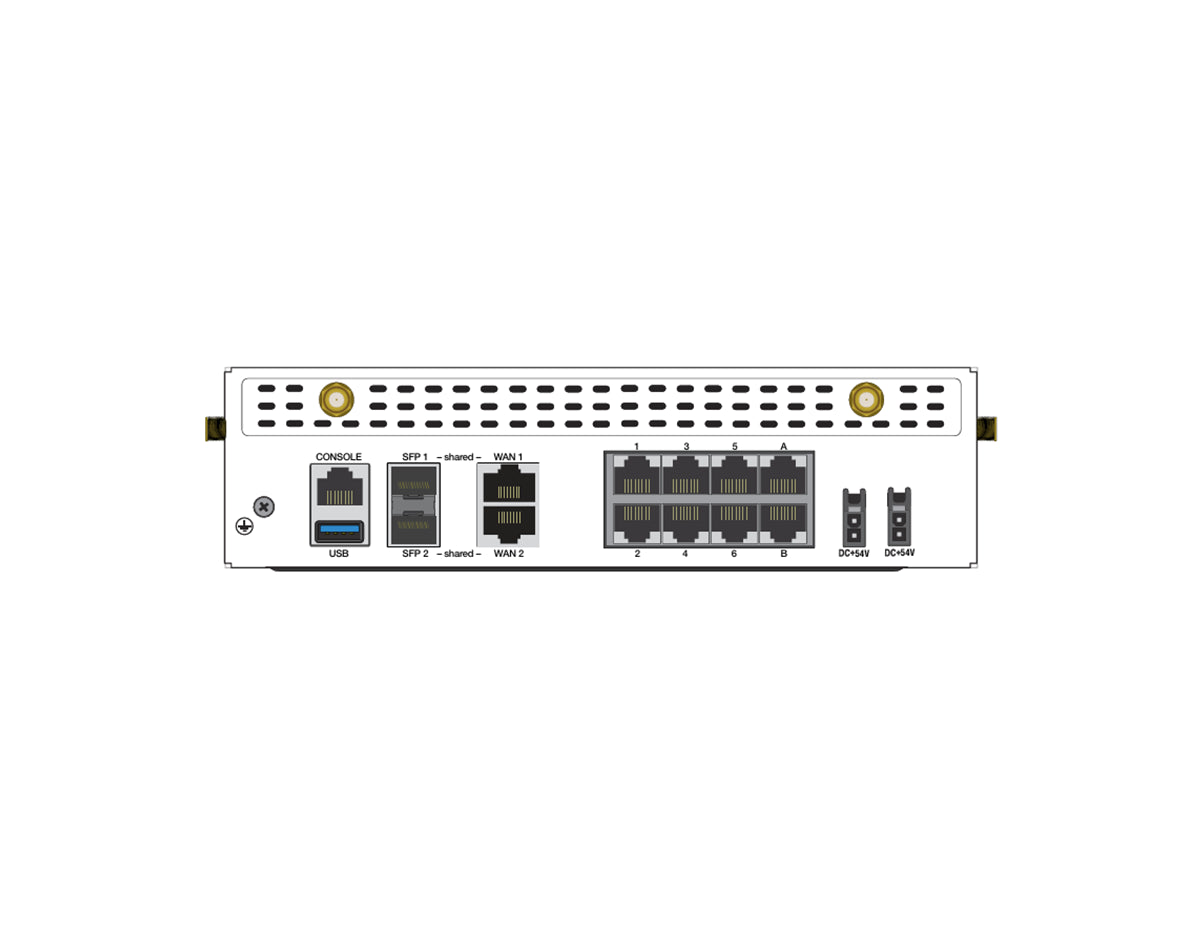

- Built-in PoE+ Switching: Features 8x GE RJ45 PoE+ ports (including 2x dedicated FortiLink ports) with a 96W total budget, reducing cabling and complexity for powering access points and VOIP phones.
- 128GB Onboard SSD: Dedicated internal storage for local logging, reporting, and operational visibility at the branch edge.
- Embedded 4G LTE WAN: Provides automatic failover via an integrated 3G/4G/LTE cellular modem with dual Nano SIM slots, ensuring robust WAN redundancy and uptime.
- High-Performance Wi-Fi 6: Features built-in dual-band 802.11ax wireless with a dedicated scanning radio for secure, high-speed wireless access.
- Accelerated SD-WAN & Security: Custom SPU delivers up to 10/10/7 Gbps IPv4 firewall throughput and 6.5 Gbps IPsec VPN throughput for secure direct internet access.
- SD-Branch Ready: Uses 2x GE RJ45 PoE+ FortiLink ports to converge security and manage downstream FortiSwitch and FortiAP devices from a single console.
Ideal Use Cases
- Consolidated Branch Office: Ideal for locations requiring PoE functionality and cellular failover for critical business applications.
- Retail and Kiosks: Centralized security and power distribution for POS terminals, digital signage, and surveillance cameras in compact environments.
- Remote Sites: Ensures maximum uptime and security in environments where primary wired WAN links may be unreliable.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Mix): 900 Mbps
- IPv4 Firewall Throughput (1518/512/64 byte UDP): 10/10/7 Gbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- Internal Storage: 1x 128 GB SSD
- PoE Power Budget: 96W (8x PoE+ ports total)
- Wireless Interface: Dual WiFi Radio (2.4 GHz/5 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
- Form Factor: Compact Desktop or Wall Mountable
- Dimensions (H x W x L): 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
- Noise Level: 31.56 dBA
Upgrade Your Network Security
Simplify and secure your branch with the converged FortiWiFi 81F-2R-3G4G-POE for high-performance protection and connectivity.
