Ultimate Branch Continuity with Integrated Multi-WAN and Wi-Fi 6
The FortiWiFi 81F-2R-3G4G-DSL is Fortinet's most highly converged desktop appliance, designed for resilient Secure SD-WAN at branch offices. This 1-Year Unified Threat Protection (UTP) bundle fortifies security with essential services like IPS, Anti-Malware, and Web Filtering. The model features 128GB of SSD storage for extensive local logging and reporting. Powered by the SP4 ASIC, it integrates four distinct WAN connectivity options: two flexible GE SFP/RJ45 ports, an embedded DSL modem, and a redundant 3G/4G/LTE cellular modem with dual SIM slots.
This appliance eliminates the need for external modems, cellular routers, and wireless access points, drastically simplifying the infrastructure stack. It ensures maximum uptime and business continuity through automatic failover across fiber, broadband, and cellular networks, all while providing high-speed Wi-Fi 6 access and comprehensive security protection.
Key Benefits
- 1-Year Unified Threat Protection: Includes essential security services: IPS, Advanced Malware Protection, URL Filtering, and Anti-Spam.
- 128GB Onboard SSD: Dedicated internal storage for extensive local logging and detailed reporting, significantly aiding compliance and network analysis.
- Quad-WAN Resiliency: Integrates SFP/RJ45 ports, a dedicated DSL port, and an embedded 3G/4G/LTE cellular modem with two SIM slots, guaranteeing connectivity redundancy.
- Integrated Wi-Fi 6: Features built-in dual-band 802.11ax wireless with a dedicated scanning radio, providing secure, high-speed access for users and IoT devices.
- Powered by SP4 ASIC: Delivers up to 10/10/7 Gbps IPv4 firewall throughput and accelerates IPsec VPN performance up to 6.5 Gbps for efficient direct internet access.
- SD-Branch Ready: Integrates FortiLink ports (2) to converge security and network access, extending control to FortiSwitch and FortiAP devices.
Ideal Use Cases
- Remote/Branch Offices: Perfect for mission-critical branches requiring DSL primary access with automatic 4G/LTE failover and integrated Wi-Fi 6.
- Temporary Sites: Ideal for pop-up stores or construction sites where reliable broadband access is unavailable, relying on cellular connectivity.
- Small to Medium Businesses (SMB): Provides enterprise-grade protection and high-speed Wi-Fi 6 in a cost-effective desktop form factor.
Technical Specifications Summary
- IPv4 Firewall Throughput: 10/10/7 Gbps (1518/512/64 byte UDP)
- IPS Throughput (Enterprise Mix): 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps

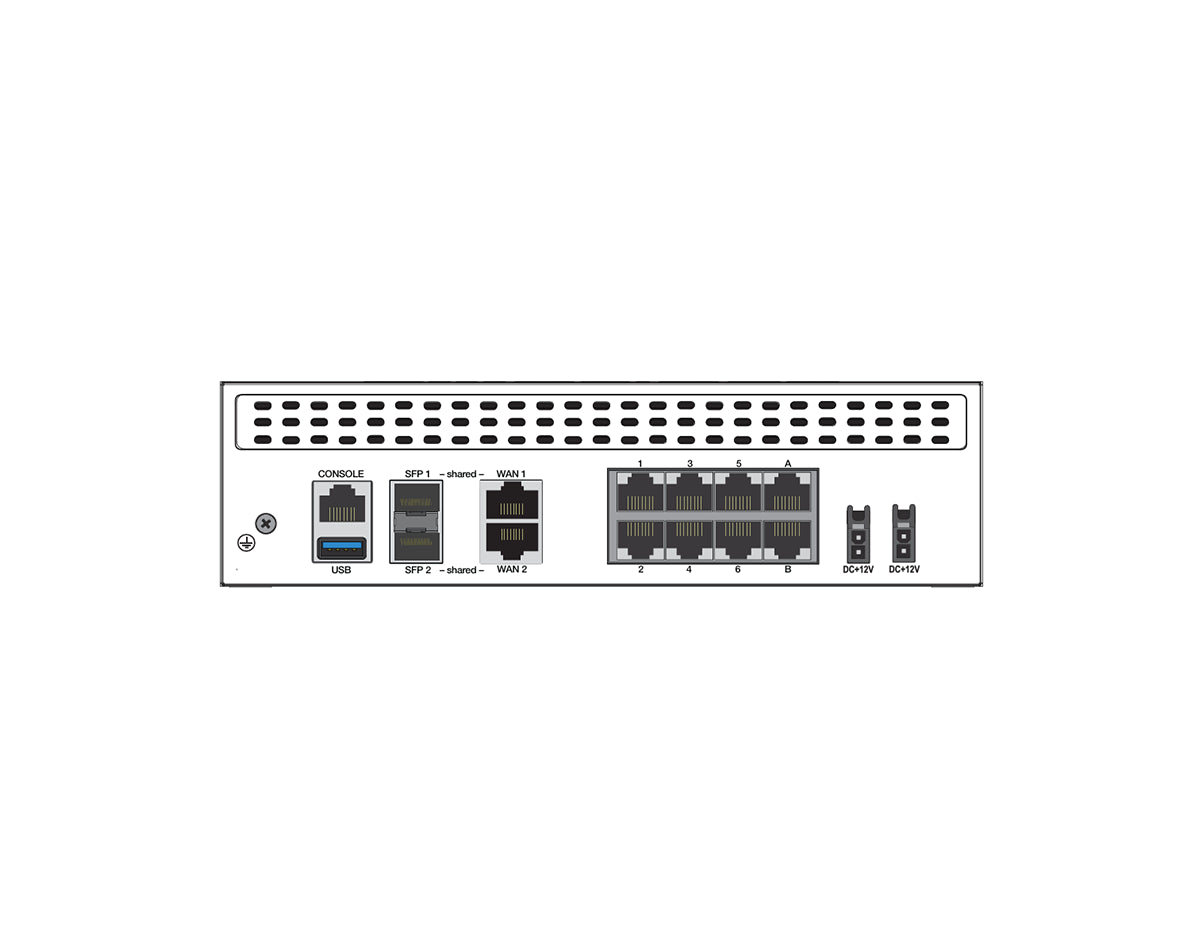

- Ports & Interfaces: 2 x GE RJ45/SFP shared media, 6 x GE RJ45 internal, 2 x GE RJ45 FortiLink (default), 1 x DSL (RJ11), 3G4G/LTE modem, 2 x Nano SIM, 1 x USB, 1 x console (RJ45)
- Wi-Fi: Dual WiFi radio (5 GHz & 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 scanning radio; max 1300 Mbps @ 5 GHz and 450 Mbps @ 2.4 GHz
- Cellular: Sierra Wireless EM7565, LTE CAT-12; dual SIM (one active, one passive)
- Power: 12V DC, 5A; 29.2 W average / 35.6 W maximum; 121.5 BTU/h heat dissipation
- Physical & Environment: 60 x 216 x 178 mm; operating temperature 0°C to 40°C; noise level 24.14 dBA
Upgrade Your Network Security
Ensure maximum uptime and convergence with the FortiWiFi 81F-2R-3G4G-DSL and 1-Year Unified Threat Protection bundle.
