Consolidated DSL Connectivity and Wi-Fi 6 Security

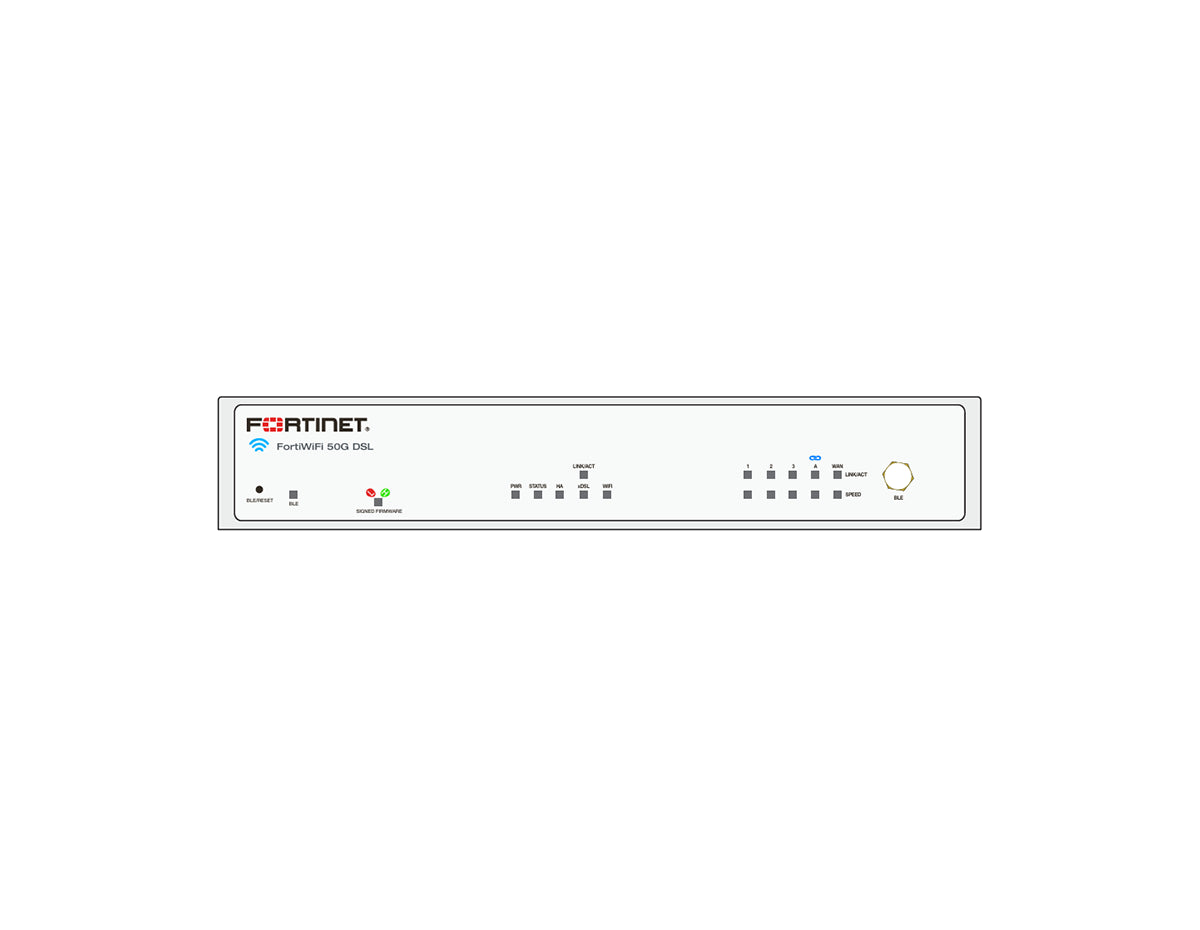

The FortiWiFi 50G-DSL (FWF-50G-DSL-A) offers a unique all-in-one solution for distributed enterprises, combining Next-Generation Firewall (NGFW) security, SD-WAN, Wi-Fi 6, and a built-in DSL modem. Powered by the SP5 ASIC, it eliminates the need for separate DSL modems and wireless access points, simplifying deployment and management while delivering up to 5 Gbps of firewall throughput.
Designed for branch offices utilizing DSL connections, this compact desktop appliance ensures reliable connectivity with support for VDSL2 and ADSL2+ standards. Its fanless design allows for silent operation, and the integrated Wi-Fi 6 radio provides high-speed wireless access for employees and guests, managed entirely through the unified FortiOS interface.
Key Benefits
- Integrated DSL Modem: Built-in RJ11 port supports VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, and G.Lite modes, reducing the need for external modems.
- Powered by SP5 ASIC: Delivers up to 5 / 5 / 4 Gbps firewall throughput (1518/512/64 byte UDP) and 4.5 Gbps IPsec VPN throughput.
- Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MU-MIMO for fast and secure wireless connectivity.
- Fanless Operation: Silent 0 dBA noise level ensures suitability for noise-sensitive office environments.
- Unified Management: Manage DSL WAN, Wi-Fi, and security policies from a single pane of glass, reducing operational complexity.
- Secure SD-WAN: Optimizes application performance over DSL links with integrated SD-WAN capabilities.
Ideal Use Cases
- Small Branch Offices: All-in-one connectivity (DSL + Wi-Fi + Security) for locations relying on broadband DSL lines.
- Retail Locations: Secure, silent, and compact solution for POS systems and guest Wi-Fi.
- Home Offices: Enterprise-grade security and reliable DSL/Wi-Fi connectivity for remote workers.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 2.25 Gbps
- NGFW Throughput (Enterprise Mix): 1.25 Gbps
- Threat Protection Throughput (Enterprise Mix): 1.1 Gbps
- IPsec VPN Throughput (512 byte): 4.5 Gbps
- SSL Inspection (IPS, avg. HTTPS): 1.3 Gbps throughput, 699 CPS, 74,000 concurrent sessions
- Firewall Latency (64 byte UDP): 2.42 μs
- Session Capacity: 720,000 concurrent sessions (TCP), 85,000 new sessions/second (TCP), 2,000 firewall policies

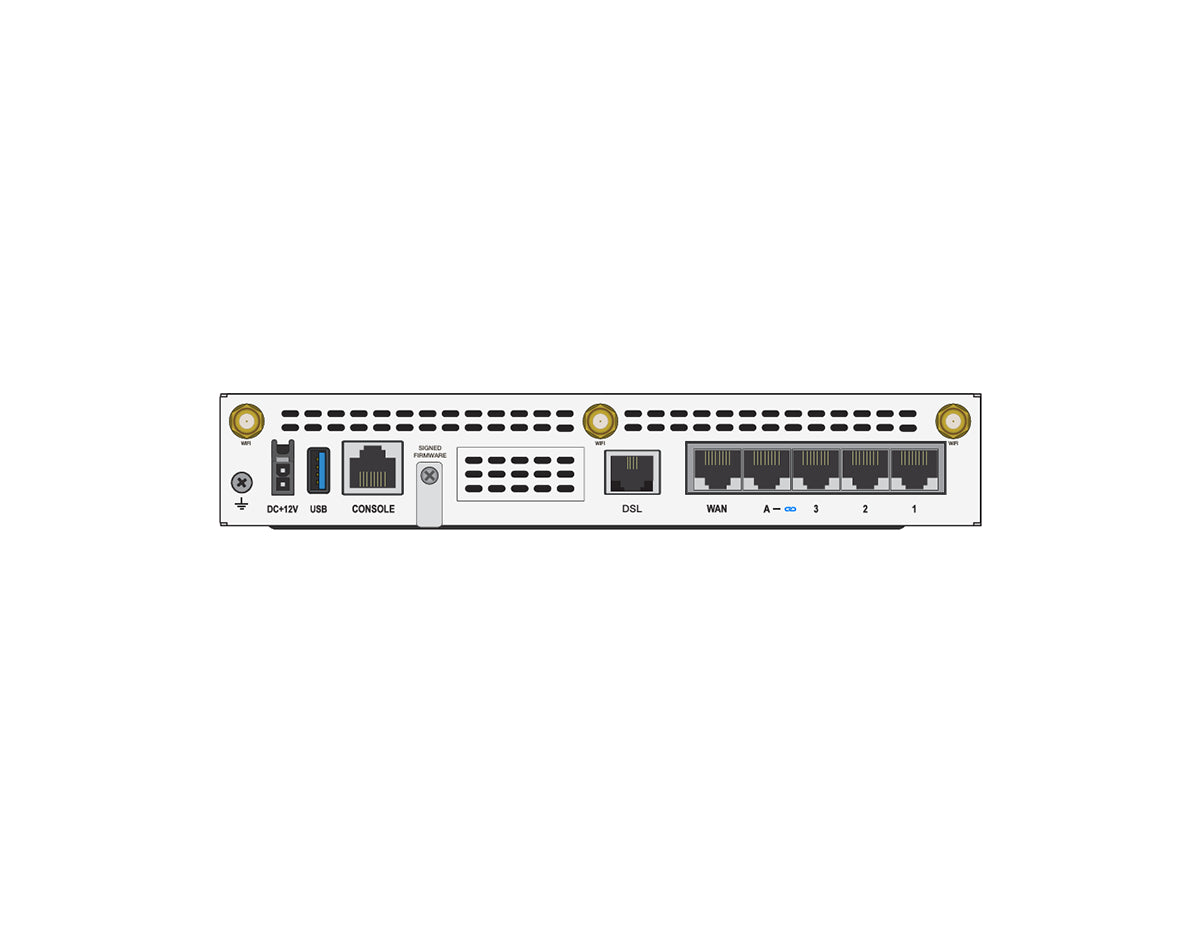

- Ports & Connectivity: 1x DSL RJ11, 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 3x WiFi antenna ports (SMA), 1x USB, 1x RJ45 console
- Wireless: Dual-radio 2.4/5 GHz, 802.11 a/b/g/n/ac/ax, 2x2 MU-MIMO, 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz
- Power & Thermal: 17.74 W avg / 19.0 W max, 64.79 BTU/h heat dissipation, fanless 0 dBA
- Environment & Compliance: 0°C to 40°C operating, 10% to 90% non-condensing humidity, FCC/ISED/CE/UL/cUL/CB, USGv6/IPv6
Upgrade Your Network Security
Streamline your branch connectivity with the FortiWiFi 50G-DSL today.
