Converged 5G Wireless WAN and Wi-Fi 6 Security
The FortiWiFi 50G-5G-II (FWF-50G-5G-II) is a next-generation desktop appliance designed for the modern distributed enterprise. It uniquely integrates an embedded 3G/4G/LTE/5G wireless WAN module and a Wi-Fi 6 (802.11ax) access point directly into the firewall. Powered by Fortinet's patented SP5 ASIC, it eliminates the need for multiple devices by providing firewalling, SD-WAN, and wireless connectivity in a single compact unit.
This model is ideal for locations requiring redundant connectivity or primary wireless WAN. The embedded dual-SIM 5G modem supports a wide range of 5G and LTE bands, while the integrated Wi-Fi 6 radio delivers high-throughput local wireless access. With enterprise-grade threat protection and unified management via FortiOS, the FWF-50G-5G-II simplifies network architecture while enhancing security and performance.
Key Benefits
- Embedded 5G Connectivity: Integrated high-performance modem with dual-SIM slots ensures reliable primary or failover WAN connectivity.
- Powered by SP5 ASIC: Delivers up to 5 / 5 / 4 Gbps firewall throughput and accelerated VPN performance, significantly faster than traditional CPU-based firewalls.
- Integrated Wi-Fi 6: Features dual-band 802.11ax technology with 2x2 MIMO, providing secure and fast wireless access for staff and guests.
- Unified Management: Manage 5G WAN, Wi-Fi 6, and security policies from a single console, reducing operational complexity.
- Secure SD-WAN: Application-aware traffic steering optimizes performance across 5G, wired WAN, and internet links.
- High Availability: Dual-SIM support enables carrier redundancy for improved connectivity resilience.
Ideal Use Cases
- Remote Sites & Branches: All-in-one connectivity solution (5G + Wi-Fi + Security) perfect for locations with limited wired internet options.
- Retail & Pop-up Stores: Rapid deployment using 5G as the primary link, with secure Wi-Fi for POS systems and customers.
- Mission-Critical Failover: Provides an automatic, high-speed 5G backup link to ensure uninterrupted operations during wired outage.
Technical Specifications Summary
- Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
- IPS / NGFW / Threat Protection: 2.25 Gbps / 1.25 Gbps / 1.1 Gbps
- VPN Capacity & Performance: 4.5 Gbps IPsec; 200 gateway-to-gateway tunnels; 250 client-to-gateway tunnels
- Wi-Fi 6 Radio: Dual Radio 2.4 GHz/5 GHz (802.11 a/b/g/n/ac/ax), 2x2 MU-MIMO; up to 1201 Mbps @ 5 GHz and 574 Mbps @ 2.4 GHz
- 5G/LTE Modem: Telit Cinterion FN990A28-HP; 2x Nano SIM (active/passive); max Tx power 23 dBm (Power Class 3) / 26 dBm (Power Class 2 in B41/n41)

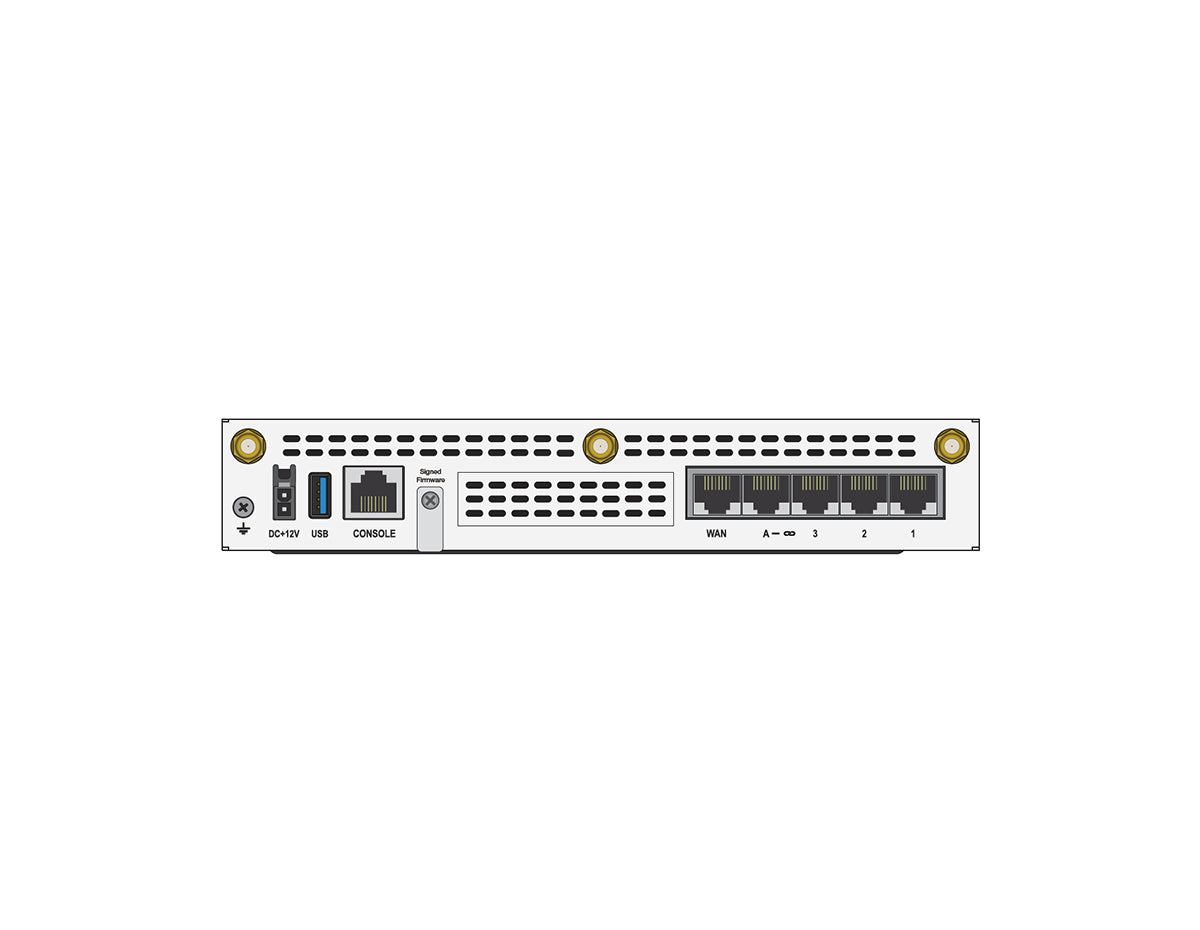

- Interfaces & Physical: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x LAN) + 1x USB + 1x RJ45 console; 42 x 216 x 178 mm; 1.1 kg; 12VDC, 3A; 20.43 W avg / 23.59 W max; 21.73 dBA
Upgrade Your Network Security
Ensure reliable connectivity anywhere with the power of 5G and SP5 in the FortiWiFi 50G-5G-II.
