Model: | FTS-2500E |
Detail: |
|
List Price: | |
Price: | $22,149.00 |
You Save: | $9,951.00 (31% OFF) |
Condition: | Brand New Sealed |
Availability: | SPECIAL ORDER |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |
Optional Accessories | |
FN-TRAN-GC | 1GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots |
FN-TRAN-LX | 1GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
FN-TRAN-SX | 1GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
FN-TRAN-SFP+LR | 10GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
FN-TRAN-SFP+SR | 10GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-FS-SFP+1 | 10GE SFP+ Passive Direct Attach Cable, 1 m for Systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-FS-SFP+3 | 10GE SFP+ Passive Direct Attach Cable, 3 m for Systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-FS-SFP+5 | 10GE SFP+ Passive Direct Attach Cable, 5 m for Systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-FS-SFP+7 | 10GE SFP+ Passive Direct Attach Cable, 7 m for Systems with SFP+ and SFP/SFP+ slots |
SP-CABLE-ADASFP+ | 10GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
STANDALONE MODE | |
HTTP Throughput | 20.0 Gbps |
HTTP Connections Per Second | 1 035 000 |
HTTP Concurrent Connections | 9 000 000 |
SSL Throughput | 14.07 Gbps |
SSL Connections Per Second | 16 900 |
SSL Concurrent Connections | 80 000 |
IPsec | Yes |
SSL-VPN | Yes |
Protocol TCP (CIFS, SMB, FIX, FTP, IMAP, LDAP, NFS, POP3, RDP, SMTP, SSH), UDP, DHCP, ICMP, RTSP/RTP | Yes |
RFC2544 and 3511 | Yes |
IPS, Malware, MITRE ATT&CK, FUZZING, and DDOS | Yes |
Replay — PCAP, Traffic, Attack, GTP | Yes |
Traffic Mix Enterprise / Lite / Fortinet Mix | Yes |
Test Center Mode with 8 Devices | |
HTTP Throughput | 160.0 Gbps |
HTTP Connections Per Second | 8 135 000 |
HTTP Concurrent Connections | 72 000 000 |
SSL Throughput | 109.92 Gbps |
SSL Connections Per Second | 128 400 |
SSL Concurrent Connections | 640 000 |
IPsec | Yes |
SSL-VPN | Yes |
Protocol TCP (CIFS, SMB, FIX, FTP, IMAP, LDAP, NFS, POP3, RDP, SMTP, SSH), UDP, DHCP, ICMP, RTSP/RTP | Yes |
RFC2544 and 3511 | Yes |
IPS, Malware, MITRE ATT&CK, FUZZING, and DDOS | Yes |
Replay — PCAP, Traffic, Attack, GTP | Yes |
Traffic Mix Enterprise / Lite / Fortinet Mix | Yes |
Dimensions in. | 1.73 x 17.24 x 22.83 |
Power Source | 100–240V AC, 63-47 Hz, Redundant |
Power Consumption (Average) | 300 W / 360 W |
Maximum Current | 120V/5A, 240V/3A |
Heat Dissipation | 1160 BTU/h |
Redundant Power Supplies | Dual Power Supplies |
Operating Temperature | 32–104°F (0–40°C) |
Regulatory Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/c |
Safety | CSA, C/US, CE, UL |
Properties | FTS-2500E |

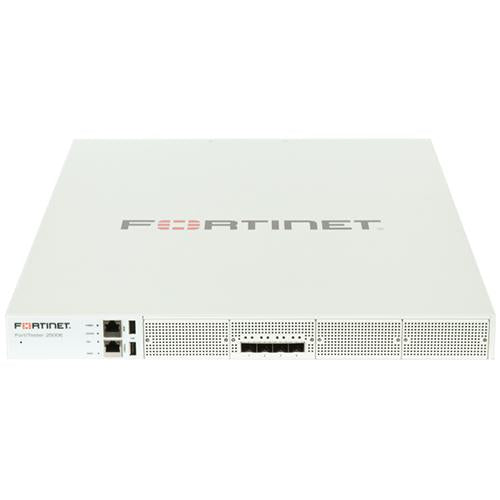

Description | Network Performance and Security Testing System for Enterprises and Service Providers – 1x GE RJ45, 4x 10 GE SFP+, 1 TB storage. |
Product Family | FortiTester |
Product Type | Testing Systems |
Hardware Specifications | |
Total Interfaces | 4x 10 GE SFP+ slots, 1x Management GE RJ45 port |
Storage | 1 TB HD |
Form Factor | 1U |
SSL Acceleration Card | Yes |
