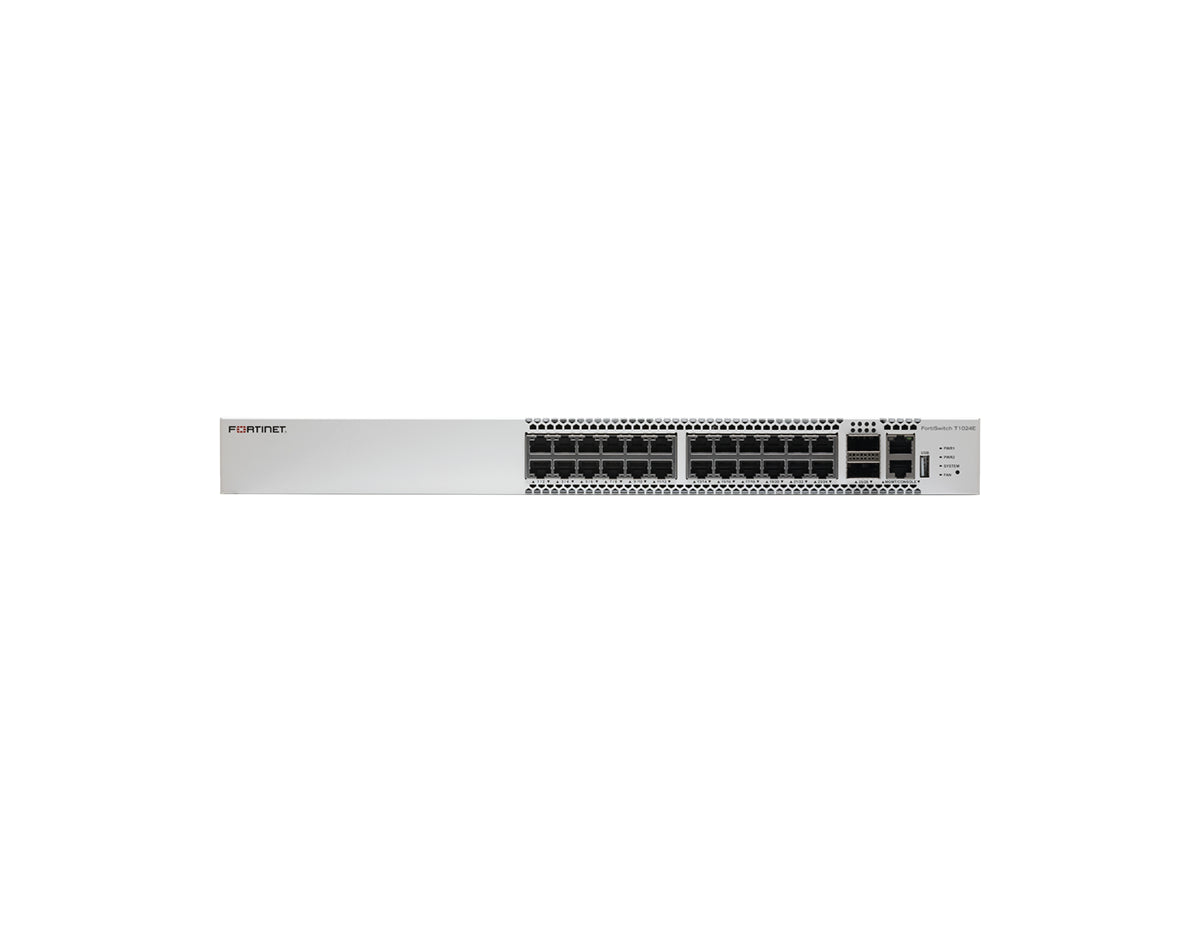

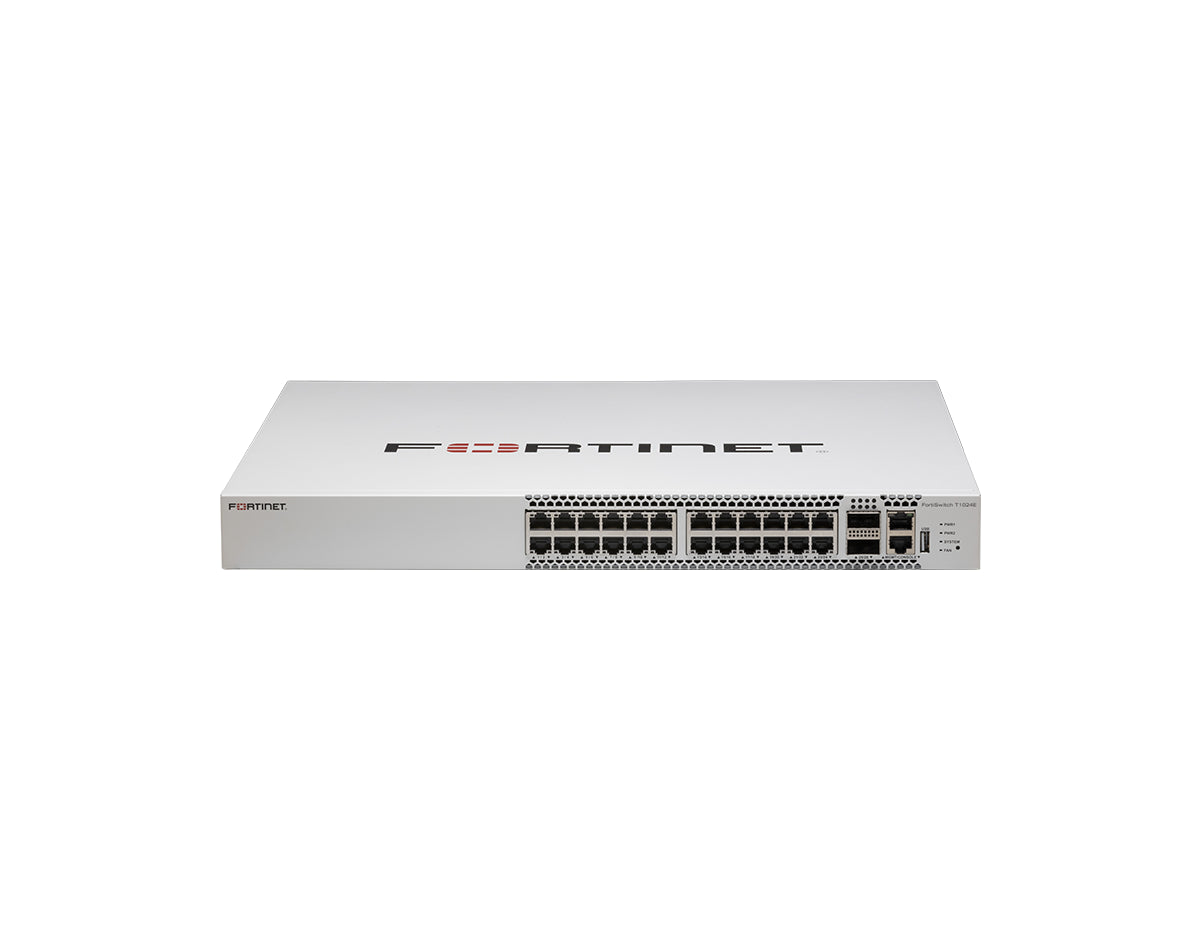

Fortinet FortiSwitchFS-T1024E 24 Port Managed Switch
24x multi-gigabit 10GBASE-T ports, 2x 100G QSFP28 uplinks, Layer 2 and Layer 3 switching, dual hot-swappable AC power, 1U rack-mountable design
$15,908.00
$10,818.00
Instant Savings
$5,090.00
High-Density 10G Switching for Modern Data Centers
The Fortinet FortiSwitch T1024E is a high-performance Layer 2 and Layer 3 Ethernet switch designed for data center, campus core, and high-bandwidth aggregation deployments. With 24 multi-gigabit copper ports and dual 100G uplinks, it delivers exceptional throughput, ultra-low latency, and enterprise-grade resiliency for demanding network environments.
Purpose-built for top-of-rack and firewall aggregation use cases, the FortiSwitch T1024E integrates seamlessly with FortiGate firewalls through FortiLink or operates independently as a standalone managed switch. This flexibility enables organizations to scale performance while maintaining centralized visibility and control.
Key Benefits & Features
- Multi-Gigabit Copper Access: Twenty-four 1G, 2.5G, 5G, and 10GBASE-T ports support high-speed servers, storage, and virtualization workloads without changing cabling.
- Ultra-High-Speed Uplinks: Two 100G QSFP28 ports provide massive aggregation bandwidth and support breakout configurations for flexible network design.
- Layer 2 and Layer 3 Capabilities: Advanced routing, VLAN segmentation, multicast support, and traffic optimization enable scalable campus and data center architectures.
- High Availability Design: Dual hot-swappable AC power supplies and support for multi-chassis link aggregation enhance uptime and operational resilience.
- Fortinet Security Fabric Integration: Native FortiLink support allows unified policy enforcement and simplified management when paired with FortiGate appliances.
Ideal Use Cases
- Top-of-rack switching for high-density server environments
- Firewall aggregation and data center core deployments
- Campus core networks requiring multi-gigabit access
- Virtualized and cloud-ready infrastructure
- SD-Branch and enterprise backbone architectures
Technical Specifications
- Access Ports: 24x 1G / 2.5G / 5G / 10GBASE-T
- Uplink Ports: 2x 100G QSFP28
- Switching Capacity: 880 Gbps
- Forwarding Rate: 1309 Mpps
- Latency: Approximately 1 microsecond
- MAC Address Table: 64K entries
- Memory: 8 GB DDR4
- Power Supplies: Dual hot-swappable AC
- Form Factor: 1U rack-mountable
- Airflow: Front to back
Upgrade Your Core Switching Today
Deploy enterprise-grade performance and scalable 10G connectivity with the Fortinet FortiSwitch T1024E. Order today.
| Brand | Fortinet |
| Product Line | FortiSwitch |
| Model | T1024E |
| SKU | FS-T1024E |
| Product Type | Managed Ethernet Switch |
| Layer Support | Layer 2 and Layer 3 |
| Form Factor | Rack-mountable (1U) |
| Total Ports | 24 |
| Access Ports | 24 x 1G / 2.5G / 5G / 10GBase-T |
| Uplink Ports | 2 x 100 Gigabit QSFP28 |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 1309 Mpps |
| Latency | ~1 µs |
| MAC Address Table | 64K entries |
| VLAN Support | Up to 4,000 VLANs |
| Airflow | Front to back |
| Stacking Support | Yes (FortiLink/MCLAG) |
| Management Interfaces | CLI, Web GUI, SNMP v1/v2c/v3, SSH, Telnet, REST API |
| Memory | 8 GB DDR4 |
| Power Supply | Dual hot-swappable AC power supplies |
| Redundant Power | Yes (1+1) |
| Power Consumption (Max) | 128 W |
| Dimensions (H x W x D) | 44 x 440 x 410 mm |
| Weight | 6.54 kg |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | > 10 years |
| Supported Ethernet Standards | IEEE 802.3, 802.3ab, 802.3an, 802.3ae, 802.3bz, 802.3ba, 802.3bj, 802.3bm |
| VLAN Standards | IEEE 802.1Q, 802.1ad, Private VLAN |
| Spanning Tree | STP, RSTP, MSTP |
| Link Aggregation | LACP (IEEE 802.3ad), MC-LAG |
| Routing Protocols | OSPFv2, RIP, VRRP, BGP, IS-IS, Static IPv4/IPv6 |
| Multicast Support | IGMP Snooping, IGMP Proxy, PIM-SSM |
| Security Features | 802.1X (Port & MAC-based), ACLs, DHCP Snooping, Dynamic ARP Inspection, MAC-IP Binding |
| QoS Features | 802.1p Priority Queuing, DSCP, ECN, Rate Limiting |
| Packet Buffer | 8 MB |
| Queues per Port | 8 |
| Jumbo Frame Support | Yes |
| Management Protocols | SNMP, Syslog, SNTP, RMON, sFlow |
| Automation & APIs | RESTful API, Zero-touch provisioning |
| Certifications | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS 2 |
| Included | Dual AC power supplies; Rack-mount kit; Documentation (included in the box) |
| Optional | QSFP28 transceiver modules; Spare AC power supply (FS-PSU-300); Advanced Features License |
