Fortinet FS-148E-POE Switch

Name: Fortinet FS-148E-POE Switch
Brand: Fortinet
SKU: FS-148E-POE-NEW
Price: 1015.00 USD
Availability: InStock

Part Number: FS-148E-POE

Technical Details

L2+ managed POE switch with 48GE +4SFP, 24 ports POE with max 370W POE limit

$1,593.00

$1,015.00

36% OFF

You Save: $578.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

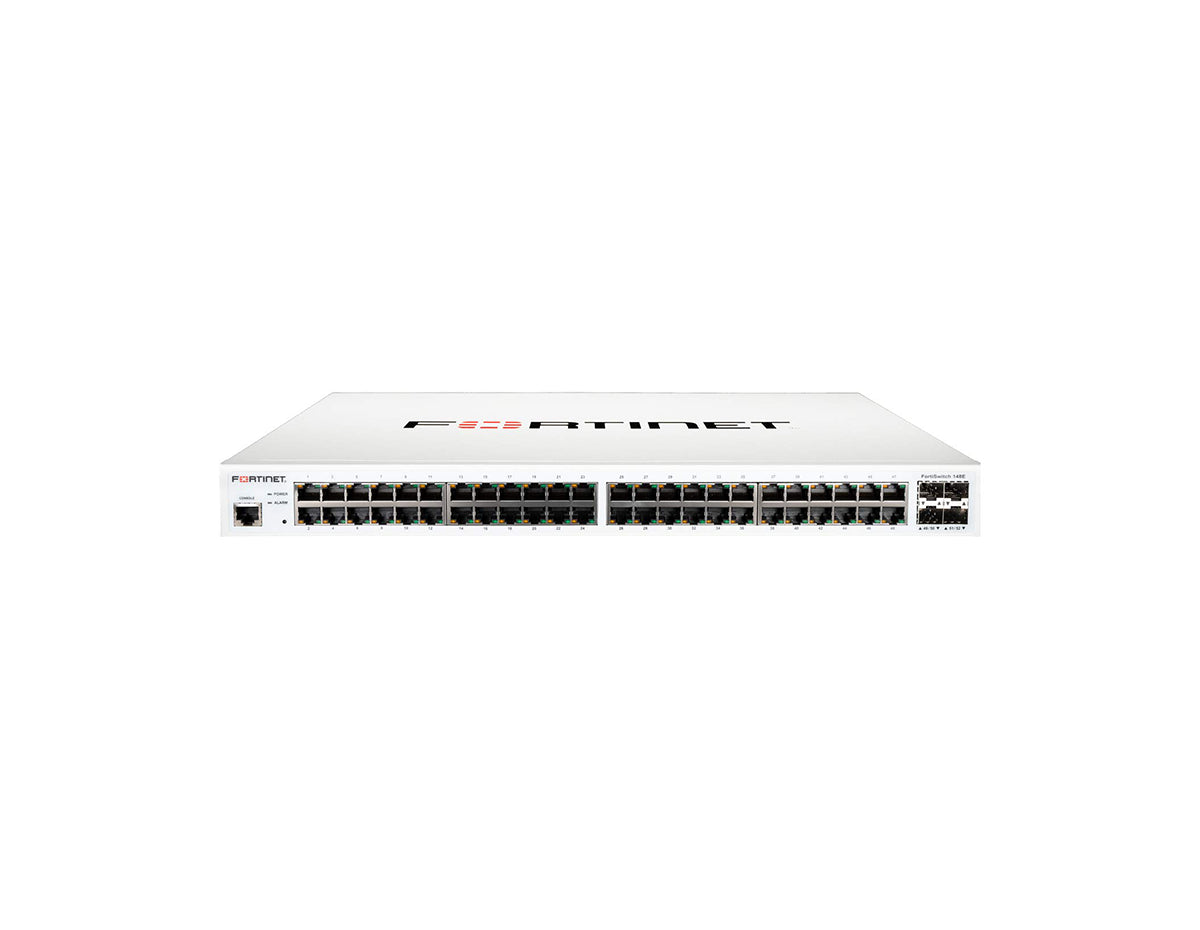

Fortinet FS-148E-POE Switch

The FortiSwitch FS-148E-POE is a stackable switch that offers PoE+ on 24 ports with a maximum PoE+ budget of 370 W. It has 104 Gbps of switching capacity. It supports FortiLink and non-FortiLink deployments. When FortiLink is enabled, the FS-148E-POE becomes a part of the FortiGate security fabric. This makes FS-148E-POE optimal for converged network environments and SD-Branch deployments.

Quick Specs:

48x GE RJ45 ports
4x GE SFP uplink ports
Rack-mountable
Layer 2/3 functionalities
24x PoE ports

Please see the related tabs for the FS-148E-POE datasheet and compatible accessories.

Properties

Properties	FS-148E-POE
Description	Layer 2 FortiGate switch controller compatible PoE+ switch with 48 GE RJ45 + 4 SFP ports, 24 port PoE with maximum 370 W limit.
Product Family	FortiSwitch
Product Type	Switch
Total Network Interfaces	48x GE RJ45 and 4x GE SFP
Dedicated Management 10/100/1000 Ports	0
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	24 (802.3af/at)
PoE Power Budget (single/dual PSU)	370 W
Mean Time Between Failures	> 10 years

Specifications


Switching Capacity (Duplex)	104 Gbps
Packets Per Second (Duplex)	155 Mpps
MAC Address Storage	16 K
Network Latency	3860 ns
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	16
Packet Buffers	1.5 MB
DRAM	256 MB DDR3
FLASH	64 MB
ACL	640
Spanning Tree Instances	16
Route Entries (IPv4/IPv6)	-
Multicast Route Entries	-
Host Entries	-
Dimensions in.	1.73 x 12.2 x 17.3
Power Required	100240V AC, 50/60 Hz
Power Supply	AC Built in
Redundant Power	No
Power Consumption (Average / Maximum)	19.804 W / 22.137 W
Heat Dissipation	67.574 BTU/h
Operating Temperature	32°-113°F (0°45°C)
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
