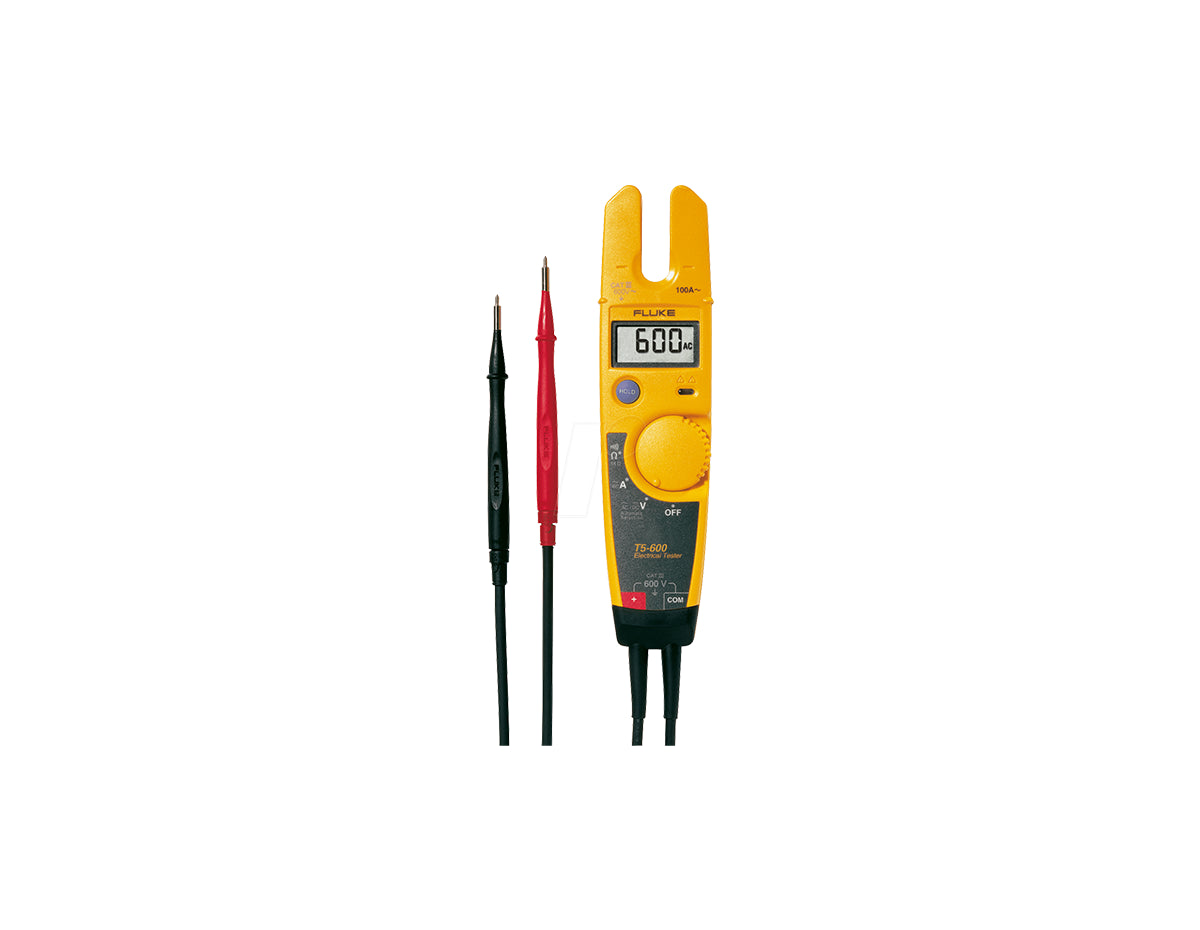

Fluke T5-600 Voltmeter, Continuity and Current Tester

Fluke T5-600 Voltmeter, Continuity and Current Tester

The T5-600 Electrical Tester is a multifunctional diagnostic instrument that can be conveniently transported to various work sites. It is capable of assessing voltage, continuity, and current using a single compact and durable tool. Users can easily choose between volts, ohms, or current, and the tester will automatically perform the necessary measurements. Additionally, the T5-600 is equipped with the capability to automatically select either AC or DC voltage based on the detected signal. This meter is suitable for use in both residential and commercial settings and is engineered to ensure user safety with its CAT III 600 V rating.

Quick Specs:

• Measure current up to 100A without breaking the circuit
• Meter automatically selects AC or DC voltage, up to 600V
• Resistance measurements up to 1000 plus continuity test
• Work in tight spaces with detachable SlimReach probe tips

Please see the related tabs for the FLUKE-T5-600 datasheet and compatible accessories.



Properties	Fluke T5-600 Voltmeter, Continuity and Current Tester
Description	The Fluke T5-600 Electrical Tester is a compact and durable tool for troubleshooting in HVAC and electrical work. With its versatile design, it checks voltage, continuity, and current all in one tool. Its innovative OpenJaw™ design allows for easy current measurement up to 100 A without interrupting the circuit. Built to withstand drops and conserve battery life, it's designed for convenience on the job. Automatic voltage selection and a CAT III 600 V rating ensure safety and efficiency for residential and commercial applications.
Product Family	Fulke Voltmeter, Continuity and Current Tester
Product Type	Voltmeter
Key features	Measure current up to 100 A without breaking the circuit Meter automatically selects AC or DC voltage, up to 600 V Resistance measurements up to 1000 Ω plus continuity test Work in tight spaces with detachable SlimReach™ probe tips
What's in the box	600 V Voltage, continuity and current tester 4 mm detachable probes Quick Reference Guide



Specifications
Jaw opening	12.9 mm (0.5 in)
Max wire size	1/0 THHN Cable
Current range AC rms	0 to 100.0 A
Accuracy AC current (50/60 Hz)	3% ± 3 counts
AC responsec	Averaging
Voltage range AC/DC	0 to 600 V
Voltage accuracy	AC: 1.5% ± 2 counts DC: 1% ± 1 count
Resistance range	0 to 1000 Ω
Continuity beeper threshold	On at < 25 Ω, off at > 400 Ω
Volts indicator LED threshold	Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature	-10°C to 50°C
Storage temperature	-30°C to 60°C
Humidity (without condensation)	0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)
Dust/water resistance	Yes
Operating altitude	2000 meters max
Temperature coefficient	0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Safety Specifications
Measurement Category	IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals	CSA, TUV
Maximum voltage	600 V between any terminal and earth ground
Mechanical and General Specifications
Size	30.5 x 51 x 203 mm
Weight	300 g
Battery life	200-hour zinc chloride, 400-hour alkaline
Battery type	2 x AA
Low battery indicator	Yes
Current sensor opening	12.9 mm



Optional Accessories
Cases and holsters	• Fluke C101 Hard Case • Fluke C150 Soft Carrying Case • Fluke C33 Soft Carrying Case • Fluke C520A Leather Tester Case • Fluke H5 Electrical Tester Holster • Fluke T5 Tester Accessory Starter Kit
Test leads, probes and clips	• Fluke AC220 SureGrip™ Alligator Clips • Fluke AC285 SureGrip™ Alligator Clips • Fluke TP1 Slim Reach Test Probes • Fluke TP2 Slim Reach Test Probes • Fluke TP4 Slim Reach Test Probes
Probes	•Fluke TLK291 Fused Test Probe Set
