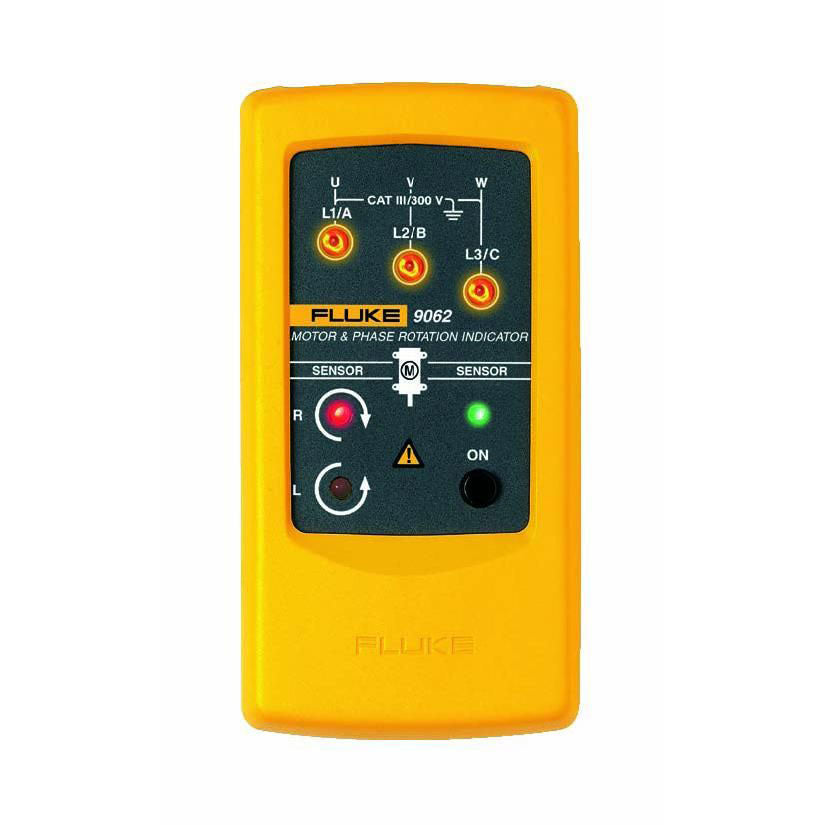

FLUKE-9062 Motor and Phase Rotation Indicator
The Fluke 9062 Motor and Phase Rotation Indicator is a versatile, handheld diagnostic tool designed for detecting phase sequence and motor rotation direction. It enables contact-free detection of the running direction of motors and features clearly labeled LED indicators for fast and intuitive operation. Operating across a wide voltage range up to 400V and frequencies between 2 to 400 Hz, it’s ideal for HVAC, electrical, and automation technicians. Its compact build, safety certifications, and IP40 rating make it suitable for demanding environments.
Key Features:
- Three-Phase Indication: Displays all three phases with clear LED feedback
- Phase Rotation Detection: Determines the correct phase sequence to prevent wiring faults
- Non-Contact Motor Direction Testing: Identifies motor shaft direction without connecting directly
- Wide Voltage & Frequency Range: Supports 120–400 V AC and 2–400 Hz systems
- Rugged Design: Operates reliably between 0°C to 40°C and up to 2000m altitude
- Certified Safety: EN 61010, EN 61557-7, CAT III 300 V rated
- Compact & Portable: Lightweight form factor with one 9V battery operation
Technical Specifications:
- Model: Fluke 9062
- Phase Display Range: 120 to 400 V AC
- Voltage Range: Up to 400 V
- Frequency Range: 2 to 400 Hz
- Operating Timer: Continuous
- Operating Temperature: 0°C to 40°C
- Operating Altitude: Up to 2000 m
- Humidity: 15% to 80% (non-condensing)
- Ingress Protection: IP40
- Overvoltage Category: CAT III, 300 V
- Standards: EN 61010, EN 61557-7
- Power Supply: 1 x 9V battery
- Dimensions: 124 x 61 x 27 mm
- Weight: Approx. 130 g
