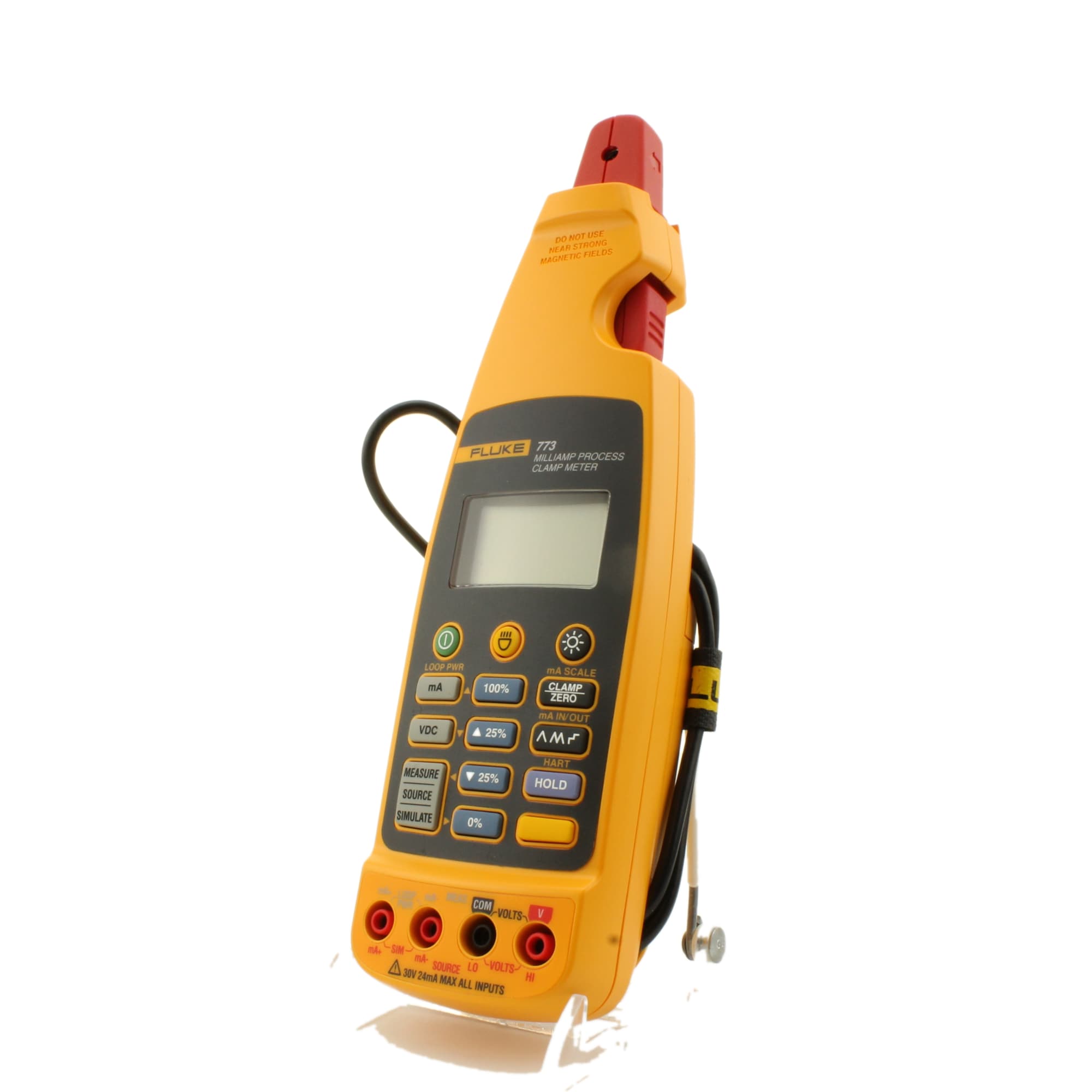

Fluke 773 Milliamp Process Clamp Meter

The Fluke 773 Milliamp Process Clamp Meter offers advanced mA measurement without the need to break the loop, saving time and increasing efficiency. Ideal for industrial environments, it can measure, source, and simulate 4-20 mA signals. The 773 provides a convenient solution for verifying control systems and troubleshooting field devices, with added functionality like DC voltage measurement, output, and scaling features for versatile applications.

Key Features:

• DC Voltage Measurement: Accurately measures DC voltages up to 30 V.
• DC Voltage Source: Provides DC voltage output to test input devices that accept a 1-5V or 0-10V signal.
• mA Measurement Without Breaking the Loop: Measures 4-20 mA signals in-circuit, reducing downtime.
• Simultaneous mA Measurement and Source: Measure mA output while sourcing a signal, ideal for testing control devices like valves and isolators.
• Scaled mA Output: Continuously outputs an mA signal corresponding to a 4-20 mA measurement, enabling data logging.
• Voltage Output with Ramp or Step Functions: Allows automated voltage changes for remote testing.
• Power Saving Features: Auto-off and backlight timeout extend battery life.

Technical Specifications:

• mA Measurement Range: 0 to 24.00 mA with 0.2% accuracy
• DC Voltage Measurement Range: 0 to 30.00 V with 0.2% accuracy
• Voltage Source Range: 0 to 10.00 V DC
• Loop Power: 24 V
• Resolution: 0.01 mA
• Battery Life: 12 hours at 12 mA source into 500 ohms
• Size: 41.3 mm x 76 mm x 248 mm (1.625 in x 3 in x 9.75 in)
• Weight: 415 g (14 oz)
• Operating Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F)
• Humidity: 90% at 30 °C, 75% at 30-55 °C
• Safety Rating: CAT III 300 V
