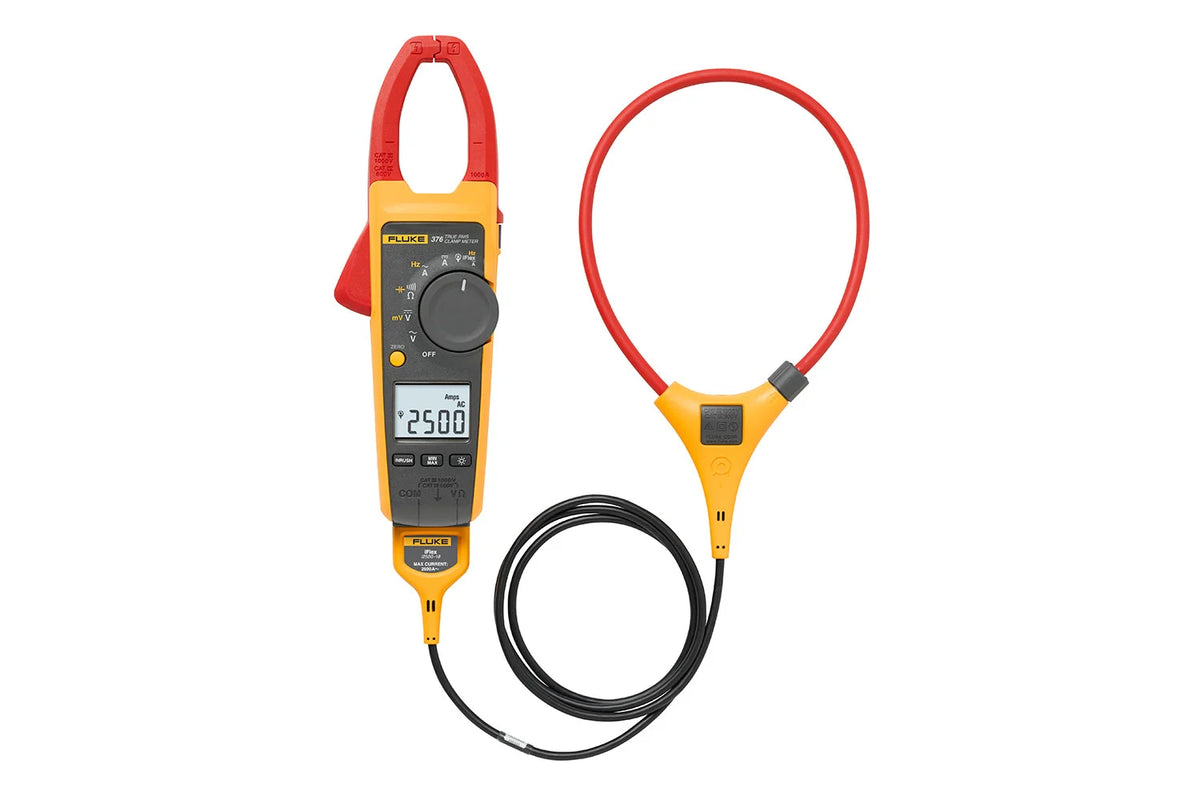

Fluke 376 FC True-RMS Clamp Meter with iFlex

The Fluke 376 FC is a high-performance clamp meter designed for industrial and commercial electricians. With integrated iFlex technology and wireless compatibility through the Fluke Connect app, it allows users to safely capture, log, and trend measurements from a distance. It supports true-RMS AC/DC current and voltage measurements, frequency, resistance, capacitance, and inrush current, making it an essential tool for professional diagnostics and maintenance.

Key Features:

• True-RMS Measurement: Delivers accurate readings on non-linear loads including variable speed drives and electronic ballasts.
• iFlex Flexible Current Probe: Extends measurement range up to 2500 A AC and provides access in tight spaces.
• Fluke Connect Compatible: Wirelessly transmit readings to your smartphone or tablet for safe and remote monitoring.
• Integrated Low-Pass Filter: Ideal for accurate motor drive measurements.
• Inrush Current Measurement: Captures motor startup current as seen by the circuit breaker.
• Safety Rated: CAT IV 600 V, CAT III 1000 V for high-level protection.
• Multifunctional Testing: Measures AC/DC voltage, resistance, continuity, capacitance, frequency, and more.
• Compact and Rugged Design: Includes magnetic hanging strap, soft case, test leads, and iFlex probe.

Technical Specifications:

• AC Current via Jaw: 999.9 A (Accuracy: ±2% ±5 digits)
• AC Current via iFlex: Up to 2500 A (Accuracy: ±3% ±5 digits)
• DC Current: 999.9 A (Accuracy: ±2% ±5 digits)
• AC/DC Voltage: Up to 1000 V
• Resistance: Up to 60 kΩ with continuity detection
• Capacitance: Up to 1000 μF
• Frequency via Jaw or iFlex: 5.0 Hz to 500.0 Hz
• mV DC Measurement: Up to 500 mV
• Display: Backlit digital display
• Wireless Function: Fluke Connect app via Bluetooth
• Battery Type: 2 x AA batteries
• Operating Temperature: -10 °C to +50 °C
• Dimensions: 249 x 85 x 45 mm
• Weight: 395 g
• Jaw Opening: 34 mm
• iFlex Cable Length: 1.8 m
• Safety Rating: CAT III 1000 V / CAT IV 600 V
• IP Rating: IP30 (non-operating)
