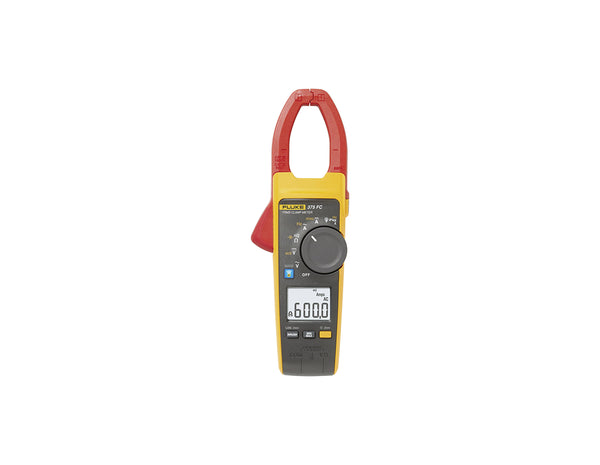

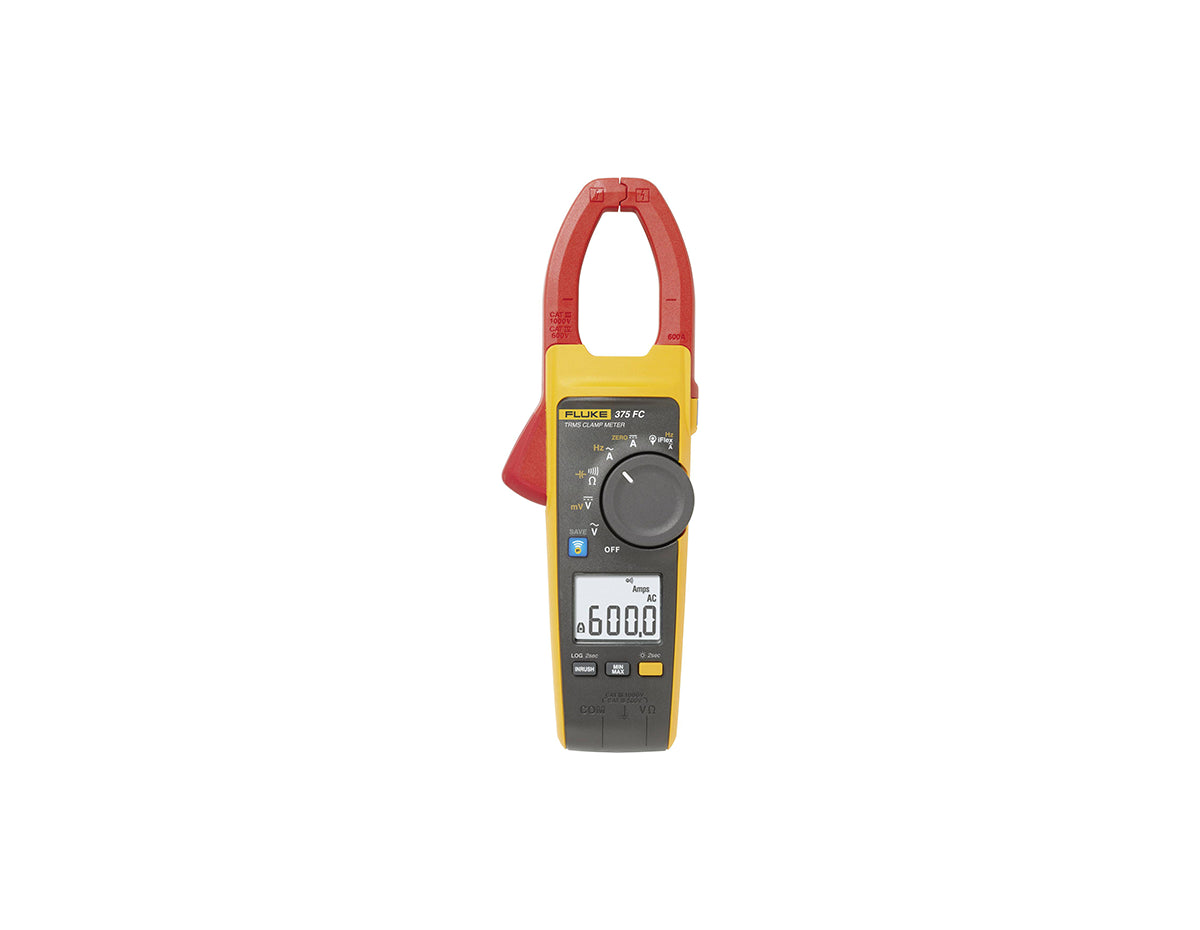

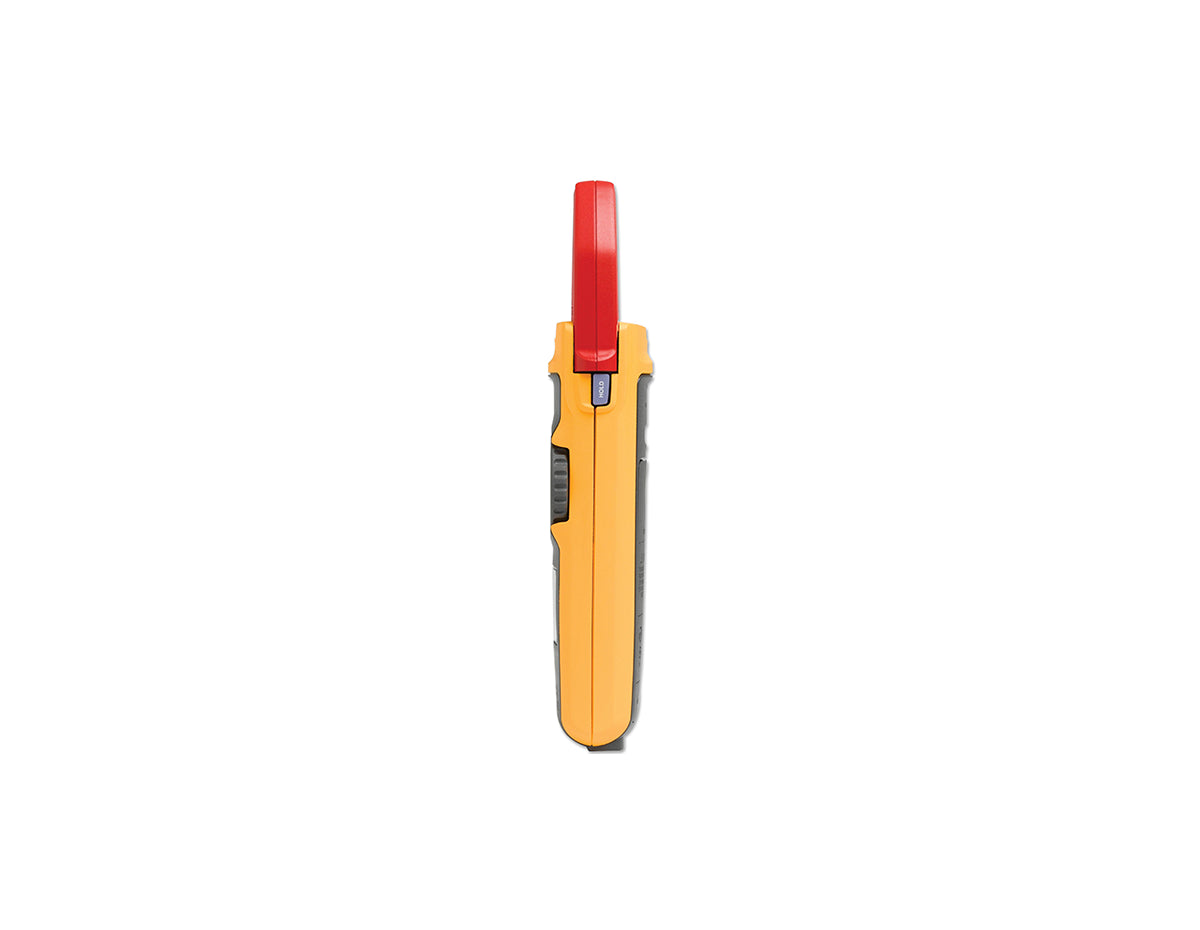

Fluke 373 True-RMS AC Clamp Meter

Fluke 373 True-RMS AC Clamp Meter

The Fluke 373 True-RMS AC Clamp Meter is an ideal option for situations requiring AC-only current measurement. It is equipped with True RMS AC voltage and current measurements, allowing AC current measurement up to 600 A and AC voltage up to 600V. Additionally, this product can measure DC voltage up to 600 V and resistance up to 6000 Ω. To enhance usability, the device features a large, easily readable backlit display that improves visibility in low-light conditions. Furthermore, it is designed to automatically set the appropriate measurement range based on the voltage present upon powering up, eliminating the need to adjust the switch during measurement manually.

Quick Specs:

• Measures AC and DC voltage to 600V
• Measure resistance to 6000 with continuity detection
• A top-performing True-RMS
• Features CAT IV 300 V, CAT III 600 V safety ratings

Please see the related tabs for the FLUKE-373 datasheet and compatible accessories.

Properties	Fluke 373 True-RMS AC Clamp Meter
Description	The Fluke 373 True-RMS AC Clamp Meter offers precise AC current measurements up to 600 A and AC voltage readings up to 600V, along with DC voltage measurements up to 600 V and resistance measurements up to 6000 Ω. With a large backlit display and automatic range selection, it ensures ease of use and accurate results for various applications.
Product Family	Fluke Clamp Meter
Product Type	Clamp Meter
Useful capabilities	Provides True-RMS voltage and current measurements to accurately measure non-linear signals Automatically selects a measurement range based on voltage present so you don’t need to change the switch positions while taking a measurement Presents readings on a large, easy-to-read backlit display Features CAT IV 300 V, CAT III 600 V safety ratings Comes with a soft carrying case  Runs on two AA alkaline batteries

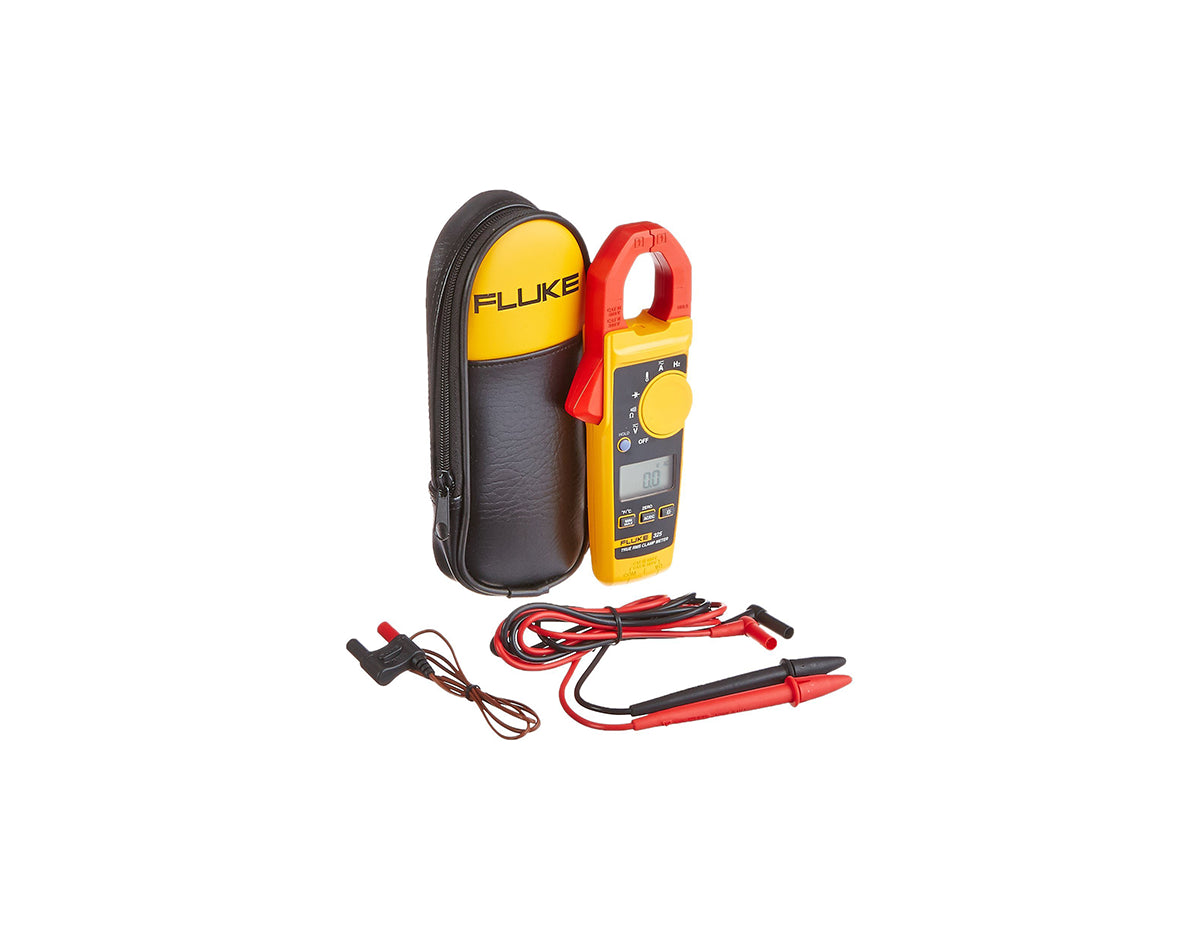

What's in the box	• 373 True-RMS AC Clamp Meter • (1 pair) TL75 test leads • Soft carrying case • Five AA Alkaline Batteries (Installed) • Quick Reference Guide

Specifications
Electrical Specifications
AC Current
Range	600.0 A
Resolution	0.1 A
Accuracy	2 % ± 5 digits (48 – 62 Hz)
Crest Factor (50/60 Hz)	2.5 @ 600 A
AC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1.0 % ± 5 digits (48 – 62 Hz)
DC Voltage
Range	600.0 V
Resolution	0.1 V
Accuracy	1 % ± 5 digits
Resistance
Range	600.0 Ω/6000 Ω
Resolution	0.1 Ω/1 Ω
Accuracy	1 % ± 5 digits
Continuity Beeper	30 Ω
Capacitance
Range	10.0 – 100.0 μF / 1000 μF
Resolution	0.1 μF/1 μF
Accuracy	1.9 % ± 2 digits
Mechanical Specifications
Size (L x W x H)	232 mm x 85 mm x 45 mm
Weight	370 g
Environmental Specifications
Operating Temperature	-10 °C to +50 °C
Storage Temp	-40 °C to +60 °C
Operating Humidity	Non condensing (< 10 °C) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) (Without Condensation)
Operating Altitude	3000 meters
Storage Altitude	12,000 meters
EMI, EMC	Meets all applicable requirements in EN61326-1:2006
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
Safety Compliance	ANSI/ISA S82.02.01:2004 CAN/CSA-C22.2 No. 61010-1-04 IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV Pollution Degree 2 EN/IEC 61010-2-32:2002 EN/IEC 61010-031:2002/A1:2008
Batteries	2 AA, NEDA 15A, IEC LR6

Optional Accessories
Cases and holsters	•Fluke C550 Tool Bag
Test leads, probes and clips	• Fluke AC220 SureGrip™ Alligator Clips • Fluke AC87 Heavy Duty Bus Bar Clip Set • Fluke AC89 Heavy Duty Insulation Piercing Test Clip • Fluke TL220 SureGrip™ Industrial Test Lead Set • Fluke TL75 Hard Point™ Test Lead Set • Fluke TL175 TwistGuard™ Test Leads • Fluke TP1 Slim Reach Test Probes
Light	• Fluke LVD1A Non-Contact Voltage Tester with LED Flashlight • Fluke L206 Deluxe LED Hat Light
