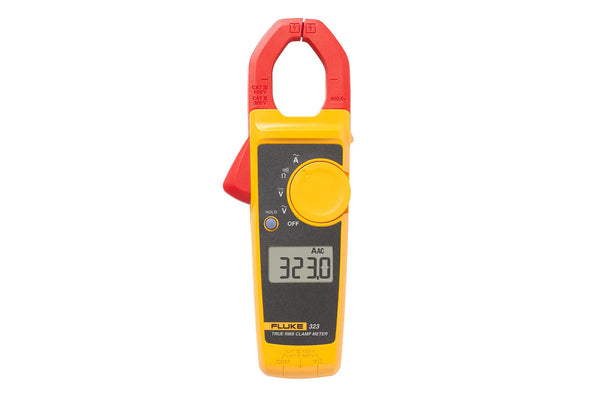

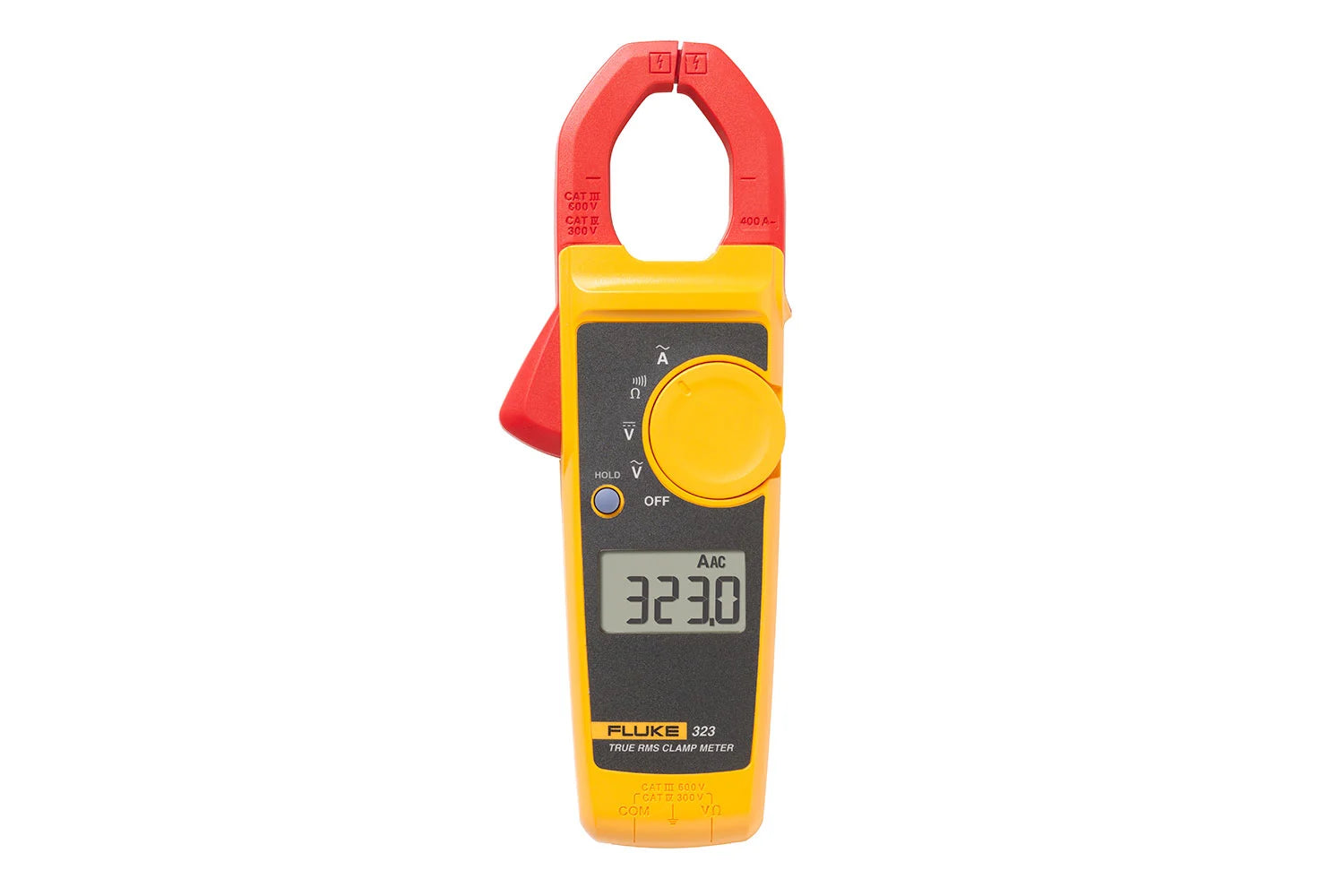

FLUKE-323 True RMS Clamp Meter

The FLUKE-323 True RMS Clamp Meter offers a practical and precise solution for electricians needing reliable measurements in tight spaces. With True RMS sensing, this clamp meter ensures accurate readings on non-linear loads, making it perfect for commercial and residential troubleshooting. The meter measures AC current up to 400 A, AC and DC voltage up to 600 V, and resistance up to 4 kΩ. Its ergonomic design and large display provide ease of use, while the built-in data hold function captures readings for later reference. The FLUKE-323 is CAT III 600 V and CAT IV 300 V rated, ensuring high safety standards in demanding environments.

Key Features:

• True RMS Accuracy: Ensures precise measurements even on non-linear loads.
• Reliable Current Measurement: Measures AC current up to 400 A.
• Voltage Range: AC and DC voltage measurements up to 600 V.
• Compact and Ergonomic: Slim design allows for easy operation in confined cable compartments.
• Large Display: Easy-to-read screen with a data hold function for capturing readings.
• Built for Field Use: Rugged construction designed for harsh environments.
• Certified Safety: CAT III 600 V and CAT IV 300 V safety ratings.
• Included Accessories: Comes with test leads, a soft carrying case, and a user manual.

Technical Specifications:

• AC Current: 400.0 A (±2% ±5 digits at 45–65 Hz)
• AC Voltage: 600.0 V (±1.5% ±5 digits)
• DC Voltage: 600.0 V (±1.0% ±5 digits)
• Resistance: 400 Ω / 4000 Ω (±1.0% ±5 digits)
• Continuity: ≤70 Ω
• AC Response: True RMS
• Data Hold Function: Yes
• Dimensions (H x W x D): 207 x 75 x 34 mm
• Weight: 265 g
• Max Wire Diameter: 30 mm (600 MCM)
• Safety Ratings: CAT III 600 V, CAT IV 300 V
• Warranty: Two-year
