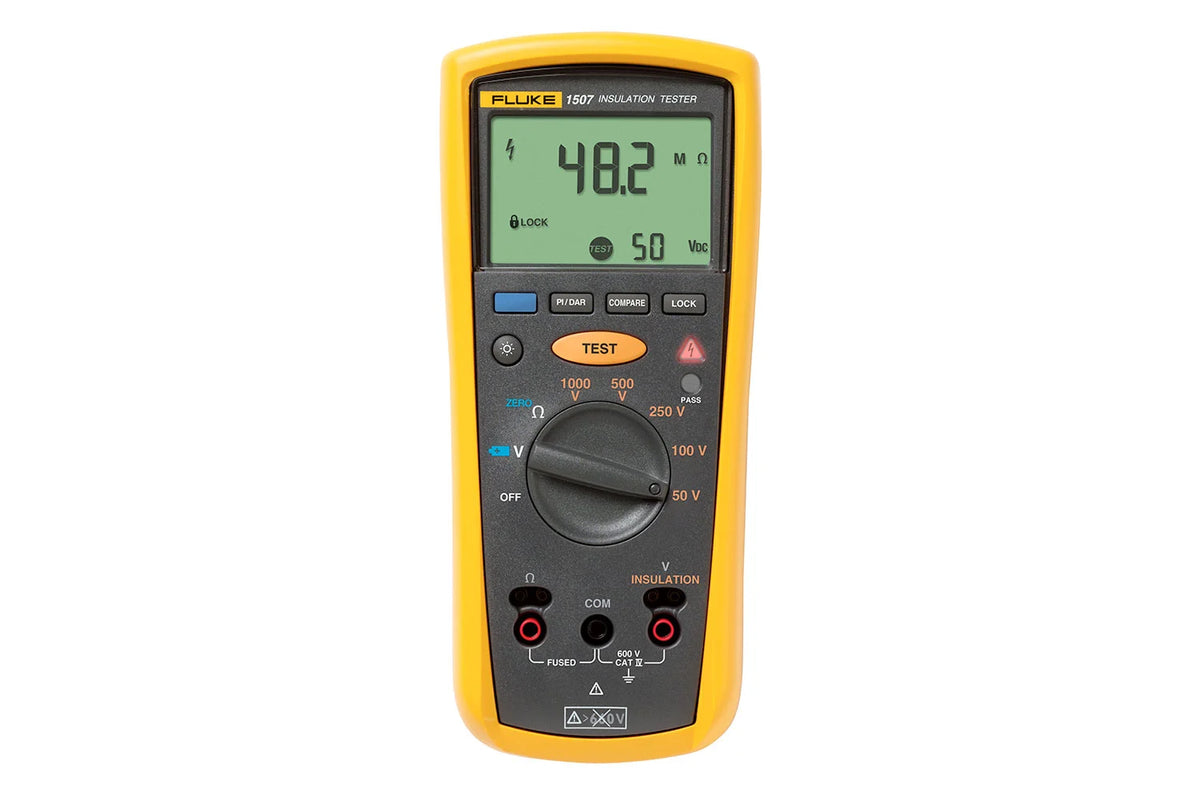

Fluke 1507 Insulation Resistance Tester

The Fluke 1507 is a compact, rugged insulation resistance tester designed for electrical contractors, industrial maintenance, and commercial electricians. With multiple test voltages (50–1000 V), PI/DAR calculations, and built-in safety functions, it ensures reliable diagnostics in commissioning, troubleshooting, and preventive maintenance.

Key Features & Benefits

• Wide Measurement Range: Insulation resistance 0.01 MΩ to 10 GΩ, with selectable test voltages from 50 V to 1000 V.
• Safety Built-in: Live circuit detection inhibits tests above 30 V; auto-discharge protects users from residual voltage.
• Multi-Function Tester: Measures AC/DC voltage to 600 V, resistance 0.01 Ω–20 kΩ, and continuity with 200 mA test current.
• Efficiency: Remote probe simplifies repetitive or hard-to-reach testing; large backlit display improves visibility.
• Portable & Durable: Lightweight (550 g), IP40 rated, and delivers over 1000 insulation tests per set of AA batteries.

Typical Applications

• Routine insulation verification for electrical contractors
• Motor, cable, and switchgear testing in industrial maintenance
• Commissioning compliance testing in new installations
• Solar and renewable energy insulation safety checks
• Preventive maintenance in commercial facilities

Order with Confidence

Engineered for professionals who demand accuracy, safety, and reliability, the Fluke 1507 is the trusted choice for insulation testing. Buy today to upgrade your testing capability.

Model	Fluke 1507
Product Type	Insulation Resistance Tester
Insulation Test Voltages	50 V, 100 V, 250 V, 500 V, 1000 V
Insulation Measurement Range	0.01 MΩ to 10 GΩ
AC/DC Voltage Range	0.1 V to 600 V
Continuity Test Current	200 mA (lo-ohms)
Overvoltage Category	CAT IV 600 V
IP Rating	IP40
Power	Four AA batteries (NEDA 15A or IEC LR6)
Battery Life	≥1000 insulation tests; ≥2500 continuity tests
Size (H × W × L)	5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in)
Weight	550 g (1.2 lb)
Operating Temperature	−20 °C to 55 °C (−4 °F to 131 °F)
Storage Temperature	−40 °C to 60 °C (−40 °F to 140 °F)
Operating Altitude	2000 m (CAT IV 600 V), 3000 m (CAT III 600 V)

AC/DC Voltage Measurement	Range 600 V; Resolution 0.1 V; 50–400 Hz; Accuracy ±(2% + 3); Input impedance 3 MΩ (<100 pF); CMRR > 60 dB; Overload protection 600 V rms/DC
Continuity / Resistance	20.00 Ω / 0.01 Ω; 200.0 Ω / 0.1 Ω; 2000 Ω / 1.0 Ω; 20.00 kΩ / 0.01 kΩ; Accuracy ±(1.5% + 3); Short-circuit current >200 mA
Insulation Test Current/Voltage	50 V, 100 V, 250 V, 500 V, 1000 V; Short-circuit current 1 mA nominal; Accuracy +20%, −0%
Insulation Accuracy	50 V ±(3% + 5); 100 V ±(3% + 5); 250 V ±(1.5% + 5); 500 V ±(1.5% + 5); 1000 V ±(1.5% + 5) to 2000 MΩ, ±(10% + 3) above 2000 MΩ
Live Circuit Indicator	Test inhibited if voltage >30 V detected
Auto Discharge	Discharge <0.5 s for C ≤ 1 µF; operable up to 1 µF load
Relative Humidity	0–95% @ 10–30 °C; 0–75% @ 30–40 °C; 0–40% @ 40–55 °C
Vibration / Shock	Random 2 g, 5–500 Hz (MIL-PRF-28800F Class 2); 1 m drop test
EMC	Accuracy maintained in 3 V/m RF field (EN 61326-1)
Safety / Certifications	ANSI/ISA 82.02.01, CAN/CSA-C22.2 No. 61010-1, IEC/EN 61010-1 2nd Ed; CAT IV 600 V; CSA & TUV certified
Over-range Capability	110% of range

Included	TL224 Test Leads; TP74 Test Probes; Alligator clips PN 1958654 (red) & PN 1958646 (black); Holster; Remote probe; User documentation
Optional – Cases	Fluke C101 Hard Case; Fluke C25 Large Soft Case; Fluke CAMO-C25 Camouflage Case; Fluke CXT170 Extreme Case
Optional – Test Lead Kits	Fluke TL81A Deluxe Electronic Test Lead Kit; Fluke TL225 SureGrip™ Stray Voltage Adapter Kit
