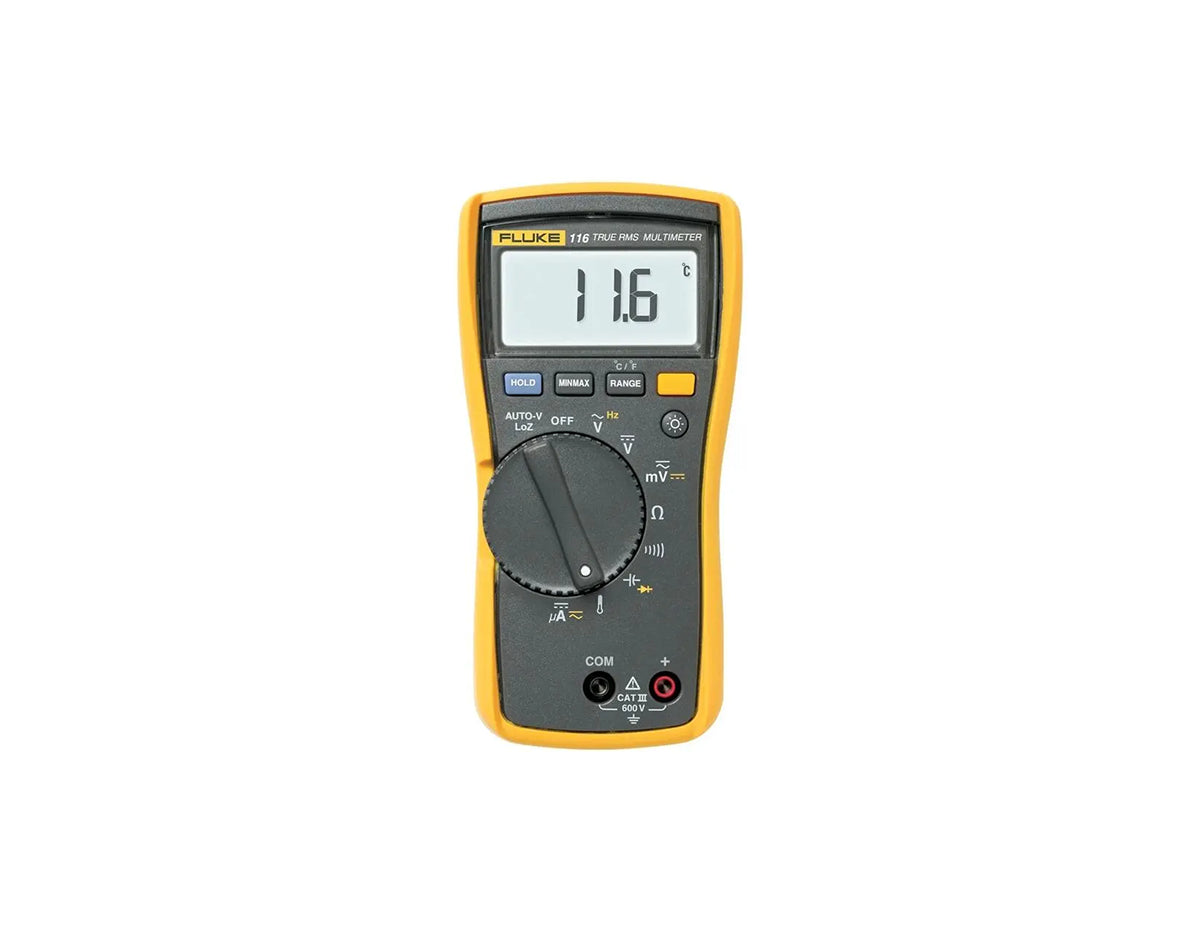

Fluke 116 HVAC True-RMS Multimeter with Temperature and Microamps

Precision HVAC Diagnostics in a Compact Tool

The Fluke 116 HVAC True-RMS Multimeter is purpose-built for HVAC professionals who demand accuracy, speed, and reliability in the field. Designed specifically for troubleshooting heating, ventilation, and air conditioning systems, it integrates temperature and microamp measurement capabilities to quickly identify faults and optimize performance. With Fluke trusted engineering, this meter delivers consistent results even in complex electrical environments.

Key Benefits & Features

• Built-in Temperature Measurement: Integrated thermometer supports precise HVAC diagnostics from -40 degrees C to 400 degrees C, eliminating the need for separate tools.
• Microamp Flame Sensor Testing: Accurately measure microamps to test flame rods and ensure safe burner operation in HVAC systems.
• True-RMS Accuracy: Reliable readings on non-linear signals, ensuring accurate diagnostics across modern electrical systems.
• Low Input Impedance (LoZ): Helps prevent false readings caused by ghost voltage, improving troubleshooting confidence.
• Enhanced Visibility & Usability: Large white LED backlight and ergonomic design enable one-handed operation in low-light or tight spaces.

Ideal Use Cases

• HVAC system troubleshooting and maintenance
• Flame sensor testing in heating systems
• Electrical diagnostics in commercial and residential environments
• Field service technicians requiring compact, accurate tools
• Preventive maintenance and system performance verification

Technical Specifications

• Voltage Range: Up to 600V AC/DC
• Temperature Range: -40 degrees C to 400 degrees C
• Microamp Measurement: Up to 600 microamps AC/DC
• Resistance Range: Up to 40 Megohms
• Capacitance: Up to 9999 microfarads
• Display: 6000-count digital display with bar graph
• Safety Rating: CAT III 600V
• Battery Life: Up to 400 hours typical without backlight
• Operating Temperature: -10 degrees C to +50 degrees C

Upgrade Your HVAC Toolkit Today

Equip your team with the Fluke 116 for faster, more accurate diagnostics. Order today and improve service efficiency.

Model	Fluke 116
Product Type	HVAC Digital Multimeter
Measurement Type	True-RMS
Voltage Range	Up to 600 V AC/DC
Microamps Measurement	Up to 600 microamps
Temperature Range	-40 degrees C to 400 degrees C
Resistance Range	Up to 40 Megohms
Capacitance Range	Up to 9999 microfarads
Frequency Range	Up to 50 kHz
Display	6000 counts digital display with 33-segment bar graph
Safety Rating	CAT III 600 V
Battery	9 V Alkaline (IEC 6LR61)
Battery Life	Approx. 400 hours (without backlight)
Operating Temperature	-10 degrees C to +50 degrees C
Storage Temperature	-40 degrees C to +60 degrees C
Standards	IEC 61010-1; IEC 61010-2-033; IEC 61326-1

DC Voltage	6.000 V / 60.00 V / 600.0 V; Accuracy plus/minus (0.5% + 2)
AC Voltage (True-RMS)	6.000 V / 60.00 V / 600.0 V; Accuracy plus/minus (1.0% + 3)
DC Millivolts	600.0 mV; Accuracy plus/minus (7.5% + 2)
AC Millivolts (True-RMS)	600.0 mV; Accuracy plus/minus (1.0% + 3)
Resistance	600.0 Ohms to 40.00 Megohms; Accuracy plus/minus (0.9% + 1)
Continuity	Beeper on less than 20 Ohms; off greater than 250 Ohms
Capacitance	1000 nF to 9999 microfarads; Accuracy up to plus/minus (1.9% + 2)
Temperature (Type-K)	-40 degrees C to 400 degrees C; Accuracy plus/minus (1% + 10)
AC Microamps (True-RMS)	600.0 microamps; Accuracy plus/minus (1.5% + 3)
DC Microamps	600.0 microamps; Accuracy plus/minus (1.0% + 2)
Frequency	99.99 Hz to 50.00 kHz; Accuracy plus/minus (0.1% + 2)
Diode Test	2.000 V; Accuracy plus/minus (0.9% + 2)
Display Update Rate	Digital: 4/sec; Bar graph: 32/sec
Maximum Voltage	600 V between any terminal and ground

Included	TL75 Test Leads; 80BK-A Integrated Temperature Probe; Holster; User documentation; 9 V battery (installed)
Optional Accessories	Magnetic hanger (ToolPak compatible)
