Fortinet FGR-60F Firewall

Name: Fortinet FGR-60F Firewall
Brand: Fortinet
SKU: FGR-60F-NEW
Price: 1595.0 USD
Availability: InStock

Part Number: FGR-60F

Technical Details

Ruggedized, 4 x GE RJ45 Switch ports, 2 x Shared Media pairs (Including 2 x GE RJ45 ports, 2 x SFP slots). 1x RJ45 by-pass can be set up between WAN1 and PORT4. DB9 Serial.

$2,307.00

$1,595.00

31% OFF

You Save: $712.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

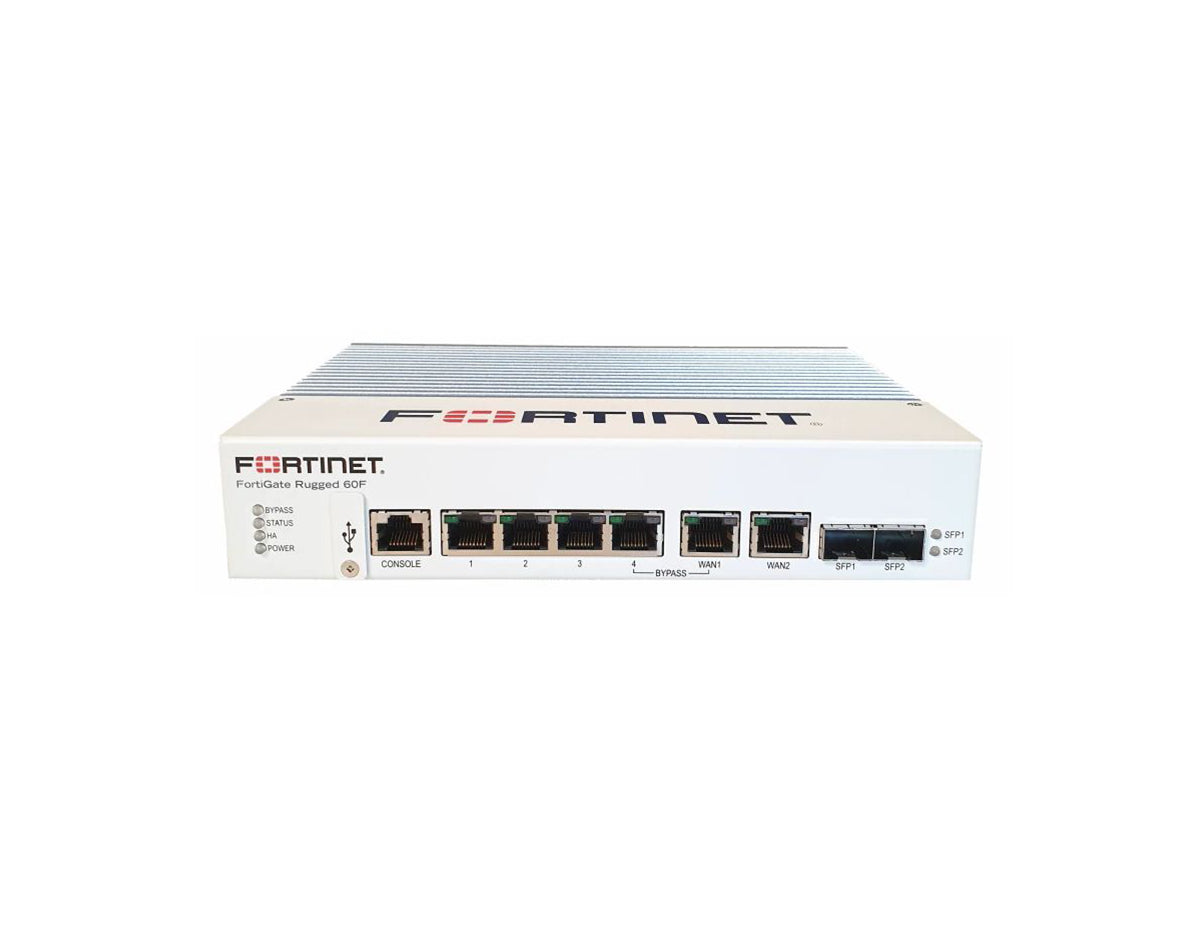

Fortinet FGR-60F Firewall

The FGR-60F is a member of the FortiGate Rugged series. This product is a compact, comprehensive security device specifically engineered to meet the needs of challenging infrastructures. It is well-suited for small businesses, remote locations, small branch offices, customer premise equipment (CPE), and small retail outlets. Unlike conventional firewall security solutions primarily intended for indoor use, the FortiGate Rugged Series is specifically designed to meet the rugged demands of outdoor environments.

Quick Specs:

4x GE RJ45 ports
Bypass GE RJ45 Port Pair: PORT4 and WAN1
Serial Interface: 1 DB9
Processor: FortiSoC4

Please see the related tabs for the FGR-60F datasheet and compatible accessories.

Properties

Properties	FGR-60F
Description	Ruggedized, indoor, IP20, 4x GE RJ45 ports, 2x shared media ports (supports, 2x GE RJ45 ports or 2x SFP slots), 1x GE RJ45 bypass port pair (between PORT4 and WAN1), 1x RJ45 serial port (console), 1x DB9 serial port (data), 1x USB port, dual power inputs.
Product Family	Early Level Fortigate Rugged Firewalls
Product Type	Firewall
GE RJ45 Internal Ports	5
GE RJ45 WAN Port	2/1
USB Port	1
Console (RJ45)	1
Wireless Interface	0

Specifications

System Performance
Firewall Throughput (1518 / 512 / 64 byte, UDP)	6/6/5.95 Gbps
Firewall Latency (64 byte UDP packets)	3.10 Î¼s
Firewall Throughput (Packets Per Second)	8.9 Mpps
Concurrent Sessions (TCP)	600 000
New Sessions/Second (TCP)	319.000
Firewall Policies	5.000
IPsec VPN Throughput (512 byte packets)	3.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	400 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	100
IPS Throughput	950 Mbps
SSL Inspection Throughput	460 Mbps
Application Control Throughput	1.3 Gbps
NGFW Throughput	550 Mbps
Threat Protection Throughput	500 Mbps
CAPWAP Throughput	-
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	30 / 10
Maximum Number of FortiTokens	500
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions in.	1.68 x 8.50 x 6.70
Form Factor	Desktop/ DIN-rail/ Wall Mount
Power Required	Redundant dual inputs, 2 pins per terminal block, supports negative (+12V to +125V DC) and positive ground (-12V to -125V DC) power sources, DC cables are not included
Maximum Current	12V DC / 2A
Power Consumption (Average / Maximum)	15 W / 21 W
Operating Temperature	-40°167°F (-40°75°C)
Regulatory Compliance	FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB
EMC	EN 55032:2015, Class A EN 55035: 2017 EN IEC 61000-6-4:2019 IEC 61850-3:2013
Electric Power Industry	IEC 61850-3 and IEEE 1613 Certified
Health and Safety	IEC 62368-1:2014, 2nd Ed. EN 62368-1:2014 IEC 62368-1:2018, 3rd Ed. EN IEC 62368-1:2020

Accessories

FN-TRAN-LX	1 GE SFP LX transceiver module, -40°C85°C, over SMF, for all systems with SFP and SFP/SFP+ slots
FN-TRAN-SX	1 GE SFP SX transceiver module, -40°C85°C, over MMF, for all systems with SFP and SFP/SFP+ slots
FN-TRAN-ZX	1 GE SFP transceivers, -40°C85°C operation, 90 km range for all systems with SFP slots.
FN-TRAN-FX	100 Mb multimode SFP transceiver module, -40° to 85°C, 2 km range for systems with SFP Slots and capable of 10/100 Mb mode selection
