The FortiGate 90G-BDL-950-12 series redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for Hybrid Mesh Firewall architectures and secure SD-WAN deployments, the FG-90G delivers up to 28 Gbps firewall throughput and 25 Gbps IPsec VPN performance. This makes it an exceptional choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.
Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational costs. It features flexible connectivity options, including two 10GE shared media ports (RJ45/SFP+) that allow businesses to easily upgrade their WAN infrastructure without replacing hardware. This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 year.
Next-Gen 10G Connectivity and SP5 ASIC Performance
Key Benefits
- SP5 ASIC Power: Powered by Fortinet’s SP5 ASIC to deliver up to 28 Gbps firewall throughput and up to 4.5 Gbps IPS throughput.
- 10GE High-Speed Ports: Includes 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media ports for flexible, high-bandwidth WAN connectivity.
- Compact Efficiency: Desktop form factor with energy-efficient operation (Average 19.9 W) and low noise (21.73 dBA).
- Converged Security: Integrates firewalling, SD-WAN, and security under FortiOS to simplify operations and improve total cost of ownership.
- Deep Visibility: Supports SSL inspection throughput (2.6 Gbps, avg. HTTPS) to help detect threats in encrypted traffic.
- Redundant Power Capable: Supports up to 2 external DC power adapters (redundancy optional) for enhanced reliability.
Ideal Use Cases
- High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
- Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
- Hybrid Mesh Firewalls: Unified security across on-premise, cloud, and remote locations.
- Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
- IPS / NGFW / Threat Protection (Enterprise Mix): 4.5 Gbps IPS; 2.5 Gbps NGFW; 2.2 Gbps threat protection
- IPsec VPN Capacity: 25 Gbps (512 byte); 200 gateway-to-gateway tunnels; 2,500 client-to-gateway tunnels
- SSL-VPN & SSL Inspection: SSL-VPN 1.4 Gbps; 200 concurrent users; SSL inspection 2.6 Gbps; 1,400 CPS; 300,000 concurrent sessions
- Performance & Scale: 41.85 Mpps; 3 million concurrent sessions (TCP); 124,000 new sessions/sec (TCP); 5,000 firewall policies

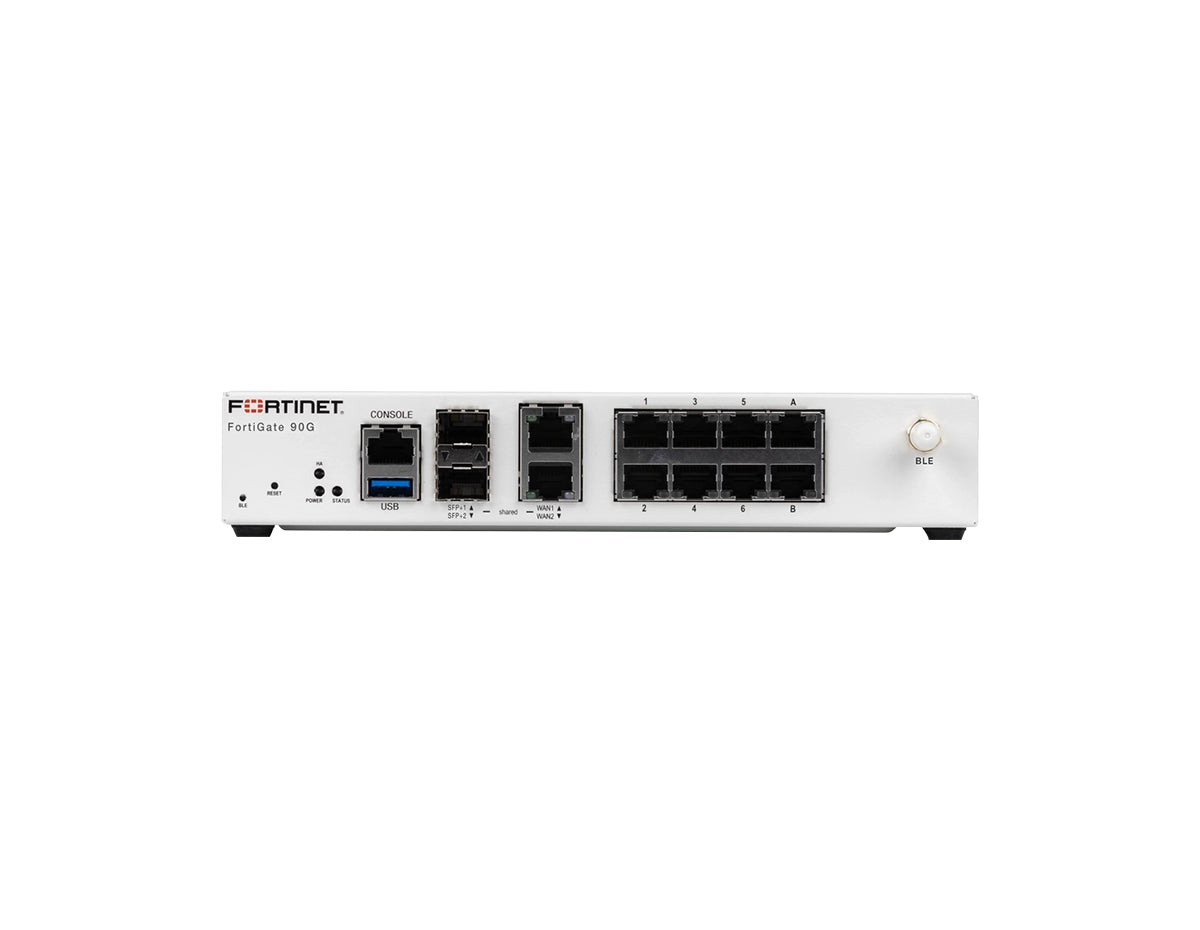

- Interfaces: 8x GE RJ45; 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media pairs; 1x USB; 1x RJ45 console

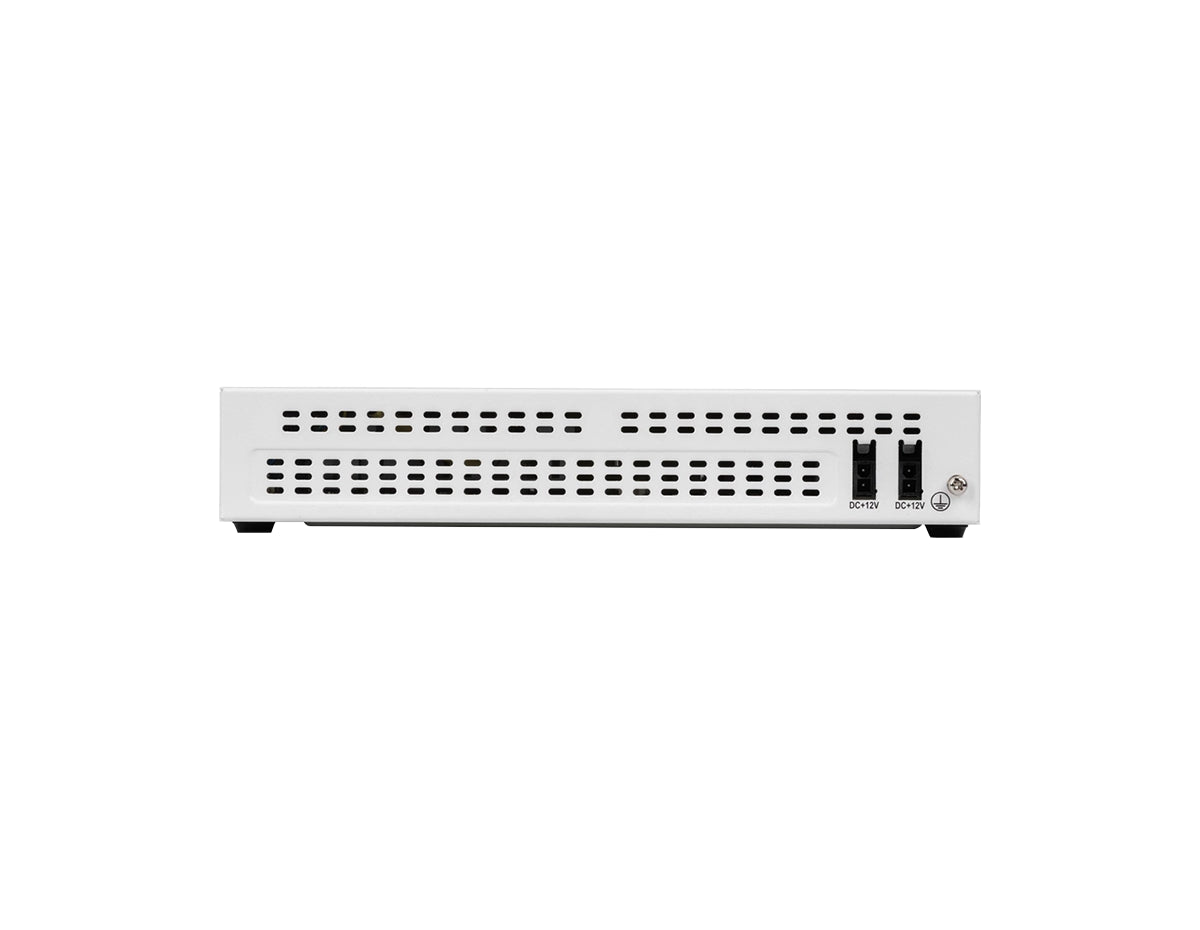

- Power: 12V DC, 3A input (dual redundancy optional); up to 2 external DC adapters (1 included); 19.9 W average / 20.53 W maximum
- Physical: 42 x 216 x 178 mm (1.65 x 8.5 x 7.0 in); 1.12 kg (2.47 lbs)
- Environment: 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% humidity (non-condensing); 21.73 dBA; up to 10,000 ft (3048 m)
- Wireless & Access Scale: Up to 24 FortiSwitches; up to 128 FortiAPs (64 tunnel); up to 500 FortiTokens
Upgrade Your Network Security
Accelerate your business with the 10G-ready performance of the FortiGate 90G-BDL-950-12.
