The FortiGate 90G-BDL-809-12 redefines desktop security performance by integrating the advanced Fortinet SP5 ASIC, enabling enterprise-grade protection and 10G connectivity in a compact form factor. Designed for hybrid mesh firewalls and secure SD-WAN deployments, the FG-90G delivers high speed with 28 Gbps firewall throughput and 25 Gbps IPsec VPN performance. This makes it a strong choice for modern branches requiring high-bandwidth, direct internet access and secure cloud connectivity.
Running on the unified FortiOS operating system, the FortiGate 90G consolidates networking and security into a single appliance, reducing complexity and operational costs. It features flexible connectivity options, including two 10GE shared media ports (RJ45/SFP+) that allow businesses to easily upgrade their WAN infrastructure without replacing the appliance. This bundle includes 1 Year FortiCare Premium and FortiGuard Enterprise Protection.
Next-Gen 10G Connectivity and SP5 ASIC Performance
Key Benefits
- SP5 ASIC Power: Powered by Fortinet’s SP5 ASIC to deliver up to 28 Gbps firewall throughput and up to 4.5 Gbps IPS performance.
- 10GE High-Speed Ports: Includes 2x 10GE/GE SFP+/SFP or 10/5/2.5/GE RJ45 shared media ports for flexible, high-bandwidth WAN connectivity.
- Compact Efficiency: Desktop form factor with energy-efficient operation (Average 19.9 W) and low noise (21.73 dBA).
- Converged Security: Integrates NGFW and secure SD-WAN capabilities under FortiOS to simplify operations and improve total cost of ownership.
- Deep Visibility: Supports SSL inspection throughput of up to 2.6 Gbps to help detect threats in encrypted traffic.

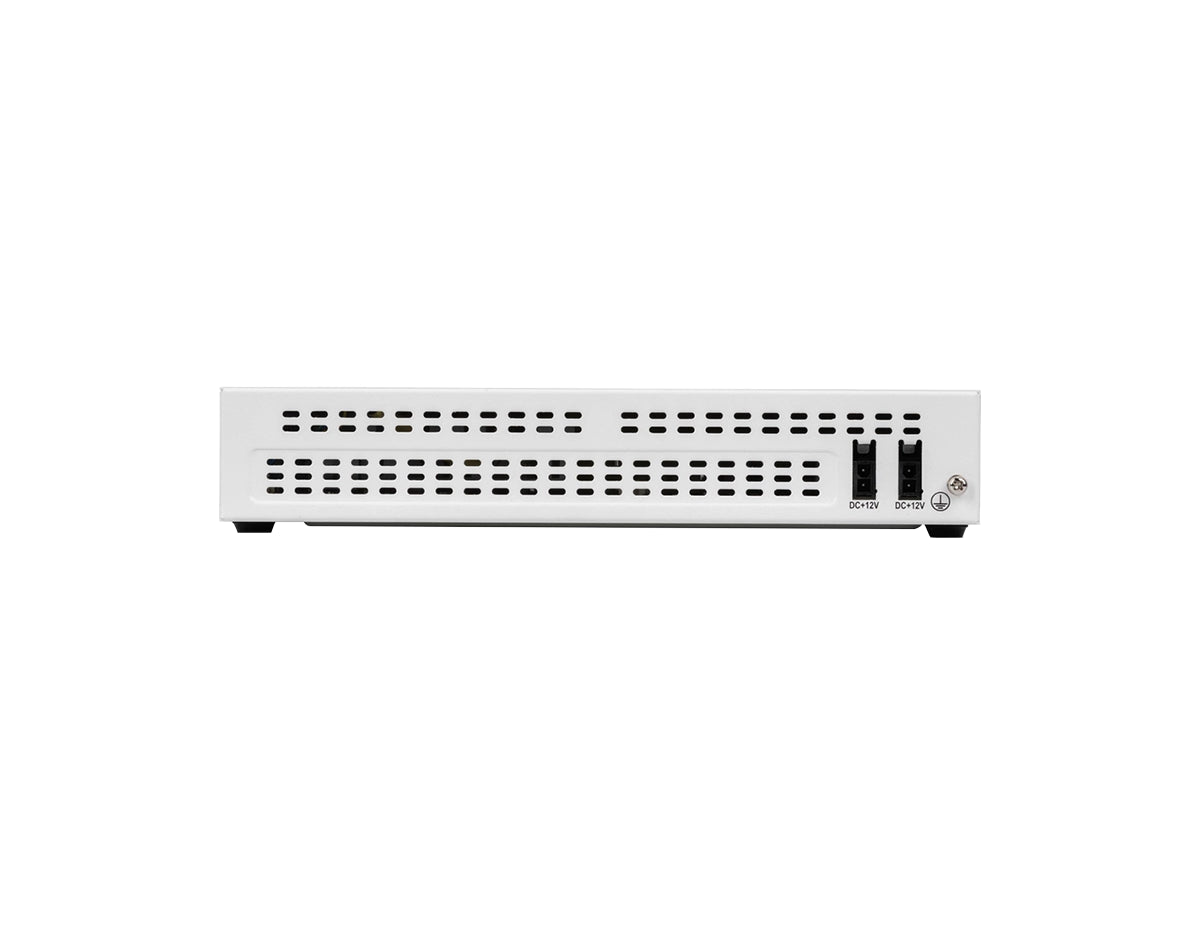

- Redundant Power Capable: Supports up to 2 external DC power adapters (redundancy optional) for enhanced reliability.
Ideal Use Cases
- High-Speed Branch Offices: Locations requiring 10G uplink connectivity for data-intensive applications.
- Distributed Enterprises: Scalable secure SD-WAN deployments with direct internet access.
- Hybrid Mesh Firewalls: Unified security across on-premise, cloud, and remote locations.
- Secure Retail & Logistics: Reliable connectivity for POS systems and inventory management.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 28 / 28 / 27.9 Gbps
- IPS Throughput (Enterprise Mix): 4.5 Gbps
- NGFW Throughput (Enterprise Mix): 2.5 Gbps
- Threat Protection Throughput (Enterprise Mix): 2.2 Gbps
- IPsec VPN Throughput (512 byte): 25 Gbps
- SSL-VPN Throughput: 1.4 Gbps
- Concurrent SSL-VPN Users (Tunnel Mode): 200

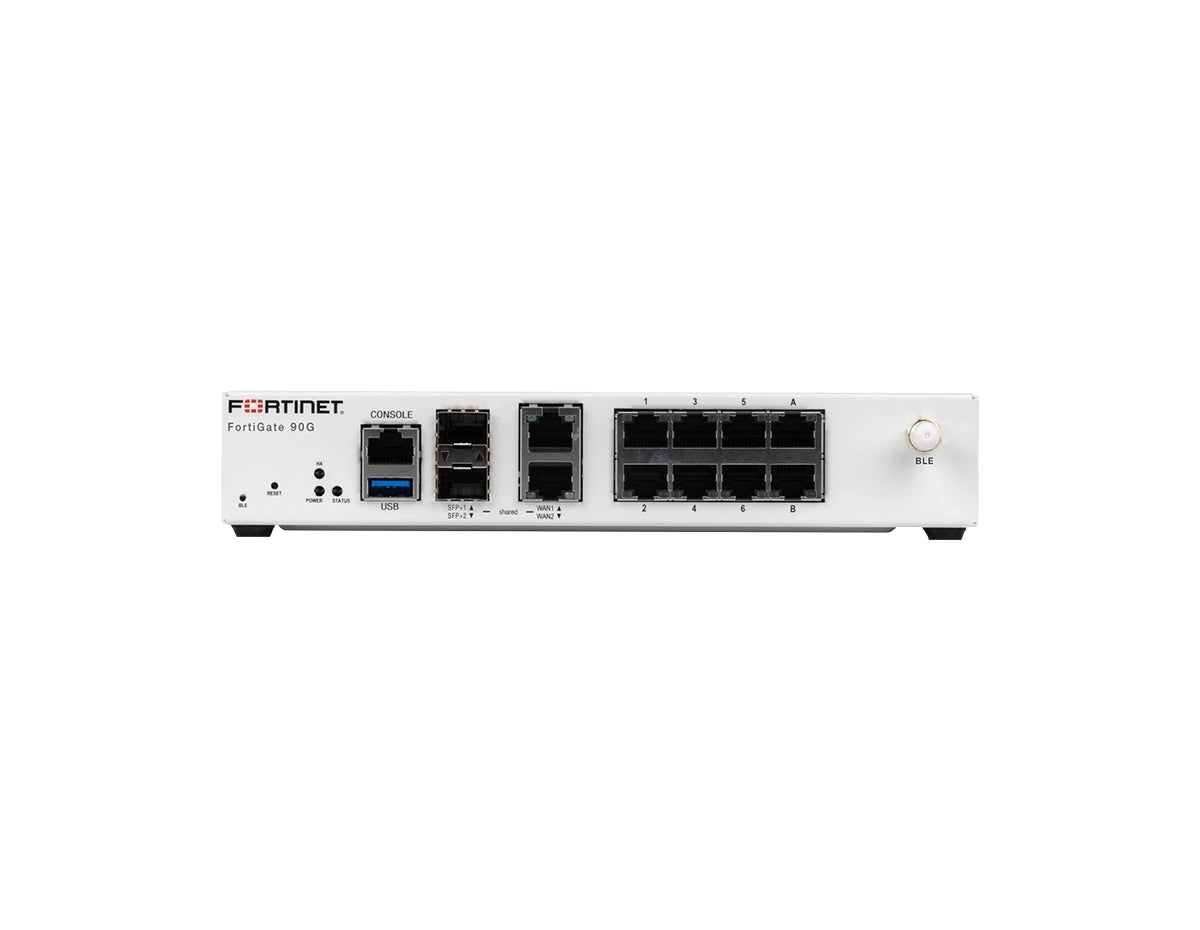

- Interfaces: 8x GE RJ45 internal ports; 2x 10/5/2.5/GE RJ45 or 10GE/GE SFP+/SFP shared media pairs; 1x USB; 1x RJ45 console
- Power: 12V DC, 3A input (dual redundancy optional); up to 2 external DC adapters (1 included); 19.9 W avg / 20.53 W max
- Physical: 42 x 216 x 178 mm; 1.12 kg; desktop form factor
- Environment & Compliance: 0°C to 40°C; -35°C to 70°C storage; 10% to 90% non-condensing; 21.73 dBA; FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Accelerate your business with the 10G-ready performance of the FortiGate 90G-BDL-809-12.
