The Fortinet FortiGate 901G-DC Series Next-Generation Firewall (NGFW) is engineered to deliver threat protection and secure networking for demanding enterprise and service provider environments. It achieves up to 42 Gbps of IPS throughput and 31 Gbps of NGFW throughput, accelerated by Fortinet SPU processors (NP7 and CP9). This model supports DC-powered rack deployments with dual hot swappable power supplies and a 48–60VDC input.
The FG-901G-DC provides deep visibility and advanced security functions, leveraging the integrated 960 GB of onboard SSD storage for local logging and data retention. The flexible, high-density interface configuration includes Ultra Low Latency 25 GE SFP28 slots, 10 GE/GE SFP+/SFP slots, 8x GE SFP slots, and 16x GE RJ45 switch ports plus dedicated management and HA ports, offering strong connectivity flexibility for segmenting and connecting critical network zones.
This bundle includes the FortiGate 901G-DC appliance plus FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
Data Center Resilience with 960GB Storage and 30 Gbps Threat Protection
Key Benefits

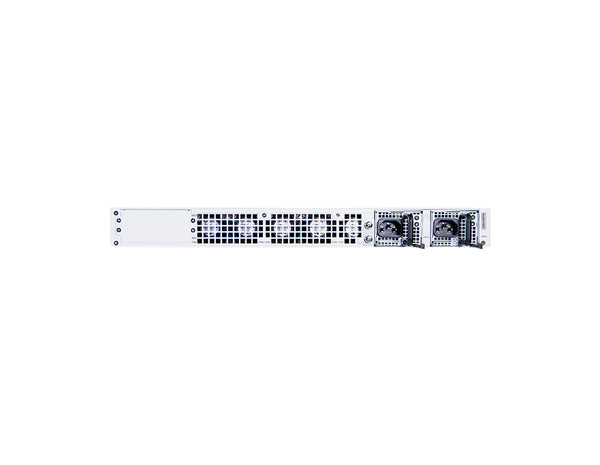

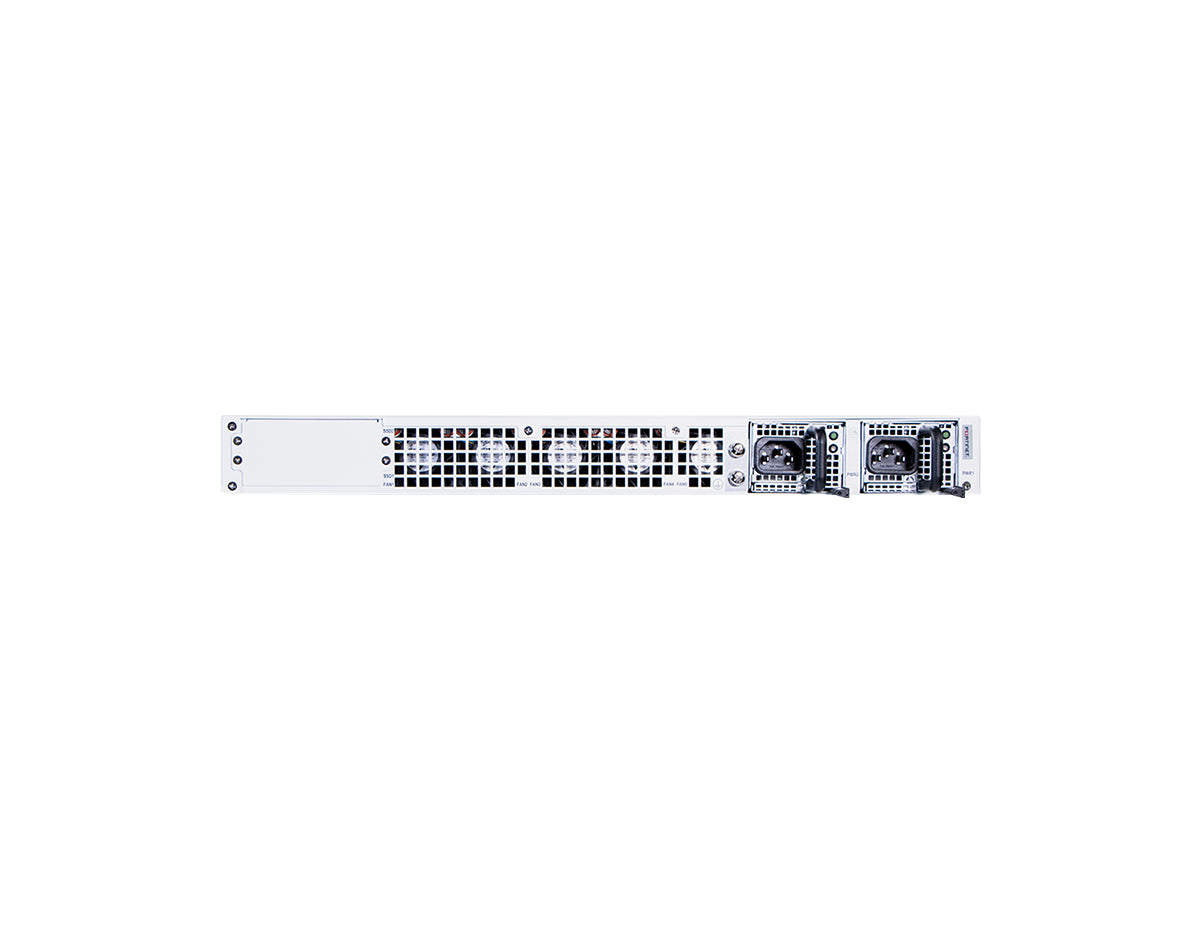

- Telecom-Ready Power: Features redundant hot-swappable dual DC power supplies (48–60VDC input) for resilient rack deployments.
- High-Performance Security: Delivers 42 Gbps IPS throughput and 31 Gbps NGFW throughput with Fortinet SPU processors.
- Integrated Storage: Includes 960 GB (2x 480 GB SSD) onboard storage for local logging and data retention.
- Ultra-Low Latency: Achieves a 3.78 / 2.5 μs firewall latency on Ultra Low Latency (ULL) ports for latency-sensitive traffic.
- Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput (IPS, avg. HTTPS) to secure encrypted traffic at scale.

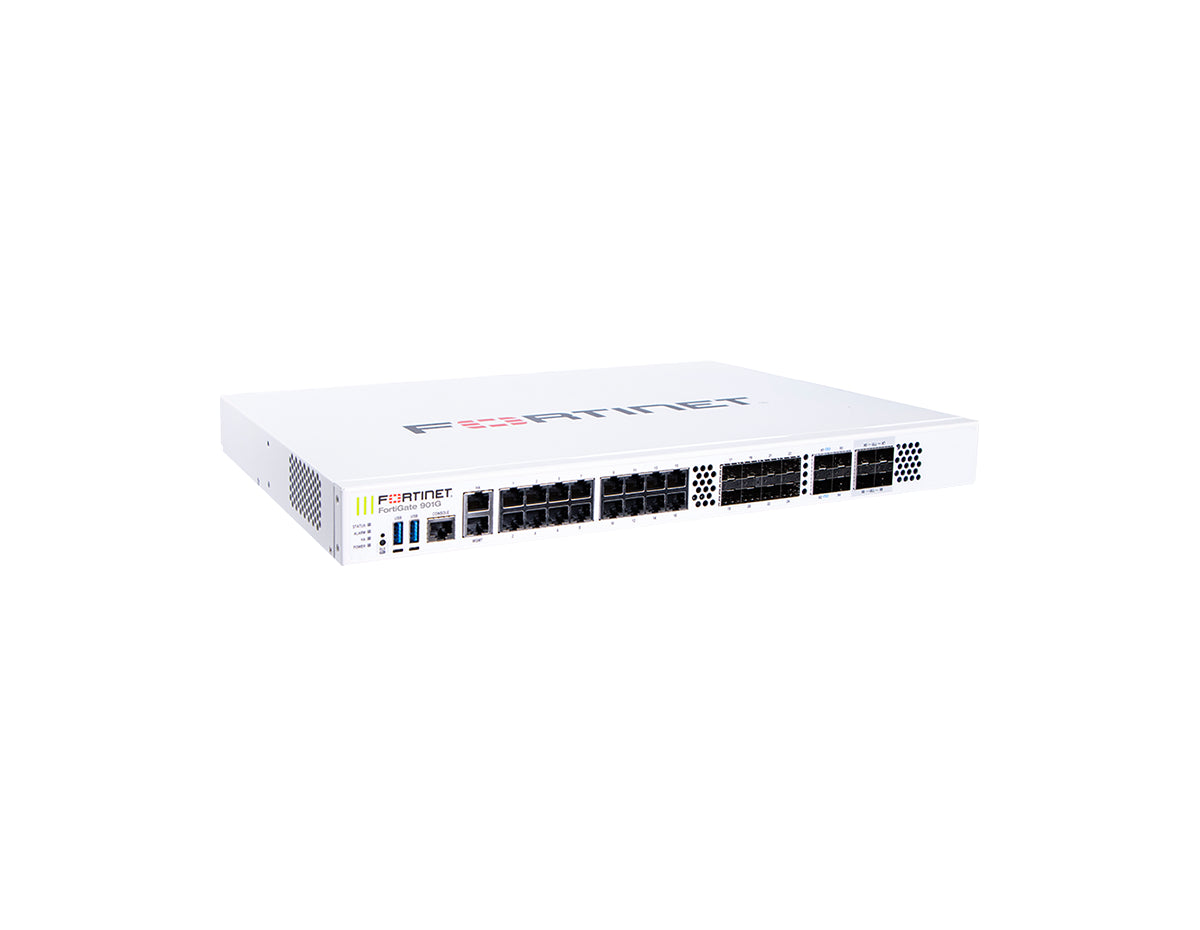

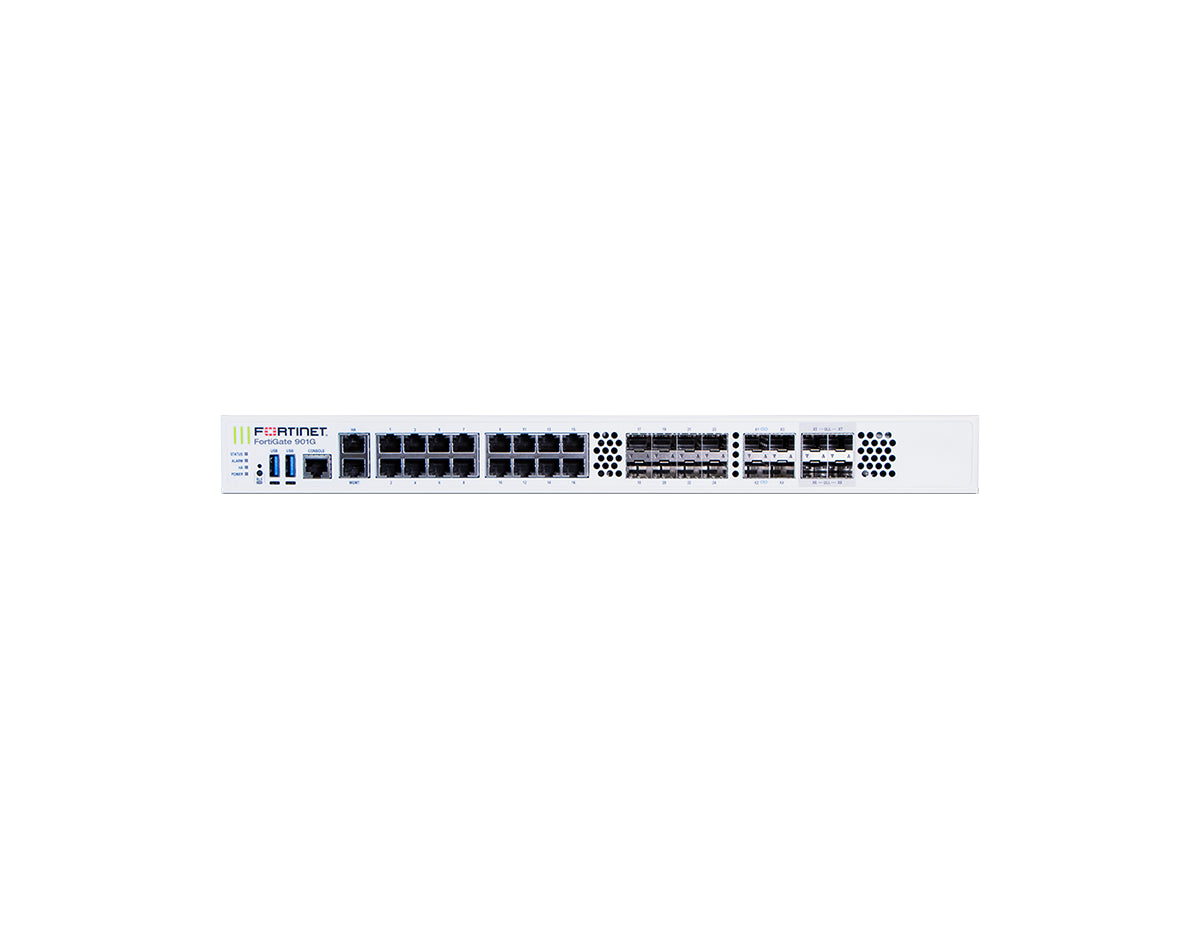

- Extensive Port Density: Offers 4x 25 GE/10 GE SFP28/SFP+ (ULL), 4x 10 GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch ports, a dedicated GE RJ45 management port, and a 2.5 GE/GE RJ45 HA port.
Ideal Use Cases
- Data Center Core Security: High-throughput firewall and VPN termination in DC-powered racks.
- Telecom/Service Provider PoP: Deployment in environments requiring DC power and redundant power supplies.
- Large Enterprise Campus Edge: Securing high-bandwidth perimeters that require high port density and local storage.
- High-Speed Secure SD-WAN: Converged networking and security with deep visibility and inspection performance.
Technical Specifications Summary
- IPS Throughput: 42 Gbps
- NGFW Throughput: 31 Gbps
- Threat Protection Throughput: 30 Gbps
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 164 / 163 / 153 Gbps
- Firewall Throughput (Packet per Second): 229.5 Mpps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 10 Gbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 16.7 Gbps
- Session Capacity: 16 Million concurrent sessions (TCP); 720,000 new sessions/second (TCP)
- Interfaces: 4x 25 GE/10 GE SFP28/SFP+ (ULL), 4x 10 GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch ports, 1x GE RJ45 management port, 1x 2.5 GE/GE HA port
- Onboard Storage: 960 GB (2x 480 GB SSD)
- Power, Physical, and Environment: 48–60VDC; 184 W / 323 W (avg/max); 1103 BTU/h; redundant hot-swappable PSUs (comes with 2PSU default); 1.5 x 17.0 x 15.0 in (44.45 x 432 x 380 mm); 16.53 lbs (7.5 kg); 0°C to 45°C operating; 10%–90% humidity (non-condensing); 58 dBA
Upgrade Your Network Security
Deploy the FG-901G-DC-BDL-950-60 bundle to pair the FortiGate 901G-DC firewall with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
