The Fortinet FortiGate 900G-DC Series Next-Generation Firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide comprehensive threat protection at scale. Driven by Fortinet’s patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including up to 42 Gbps of IPS throughput and 74.8 Gbps of Application Control throughput. Featuring dual hot swappable DC power supplies, the FG-900G-DC is designed for high-bandwidth environments requiring continuous, high-speed security for massive traffic volumes. This bundle includes FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 3 Year.
Tailored for high-bandwidth infrastructures, the FortiGate 900G-DC offers an extensive and flexible interface set, including four 25GE/10GE SFP28/SFP+ ultra-low latency slots, four 10GE/GE SFP+/SFP slots, eight GE SFP slots, 17x GE RJ45 ports (including 1x management port and 16x switch ports), and a dedicated 2.5GE/GE HA port. It incorporates a Trusted Platform Module (TPM), a dedicated hardware module that hardens the appliance by generating, storing, and authenticating cryptographic keys. The redundant dual hot swappable DC power supplies included by default provide the mission-critical uptime and high availability required in modern enterprise and data center networks.
Secure Networking with Unparalleled NP7/CP9 Acceleration and Dual DC Power Reliability
Key Benefits
- High-Speed Processing: Delivers up to 42 Gbps IPS throughput and 31 Gbps NGFW throughput via NP7 and CP9 processors.
- Telecom-Ready Power: Features dual hot swappable DC power supplies for high availability in DC-powered environments.
- Extensive Port Density: Equipped with 4x 25GE/10GE SFP28/SFP+ ultra-low latency slots, 4x 10GE/GE SFP+/SFP slots, 8x GE SFP, 17x GE RJ45 ports, and 1x 2.5GE/GE HA port for maximum connectivity flexibility.
- Ultra-Low Latency: Maintains 3.78 / 2.5 μs firewall latency for 64-byte UDP traffic (ULL ports latency noted by *).
- Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput to secure encrypted data without creating bottlenecks.
- System Integrity: Trusted Platform Module (TPM) supports hardware-based key protection and appliance hardening.
- AI-Powered Defense: Leverages consolidated AI/ML-powered FortiGuard services to protect against known, zero-day, and emerging threats.
Ideal Use Cases
- Data Center Gateway: Providing ultra-fast, high-density firewall and VPN termination capabilities with DC power.
- Telecom/Service Provider PoP: Integration into centralized DC power distribution for consistent power management.
- High-Speed Secure SD-WAN: Delivering converged networking and security for large-scale, distributed environments.
- Internal Segmentation: Using VXLAN segmentation to isolate network segments and prevent lateral threat movement.
Technical Specifications Summary
- IPS Throughput: 42 Gbps
- NGFW Throughput: 31 Gbps
- Threat Protection Throughput: 30 Gbps
- IPv4 Firewall Throughput: 164 / 163 / 153 Gbps (1518/512/64 byte, UDP)
- Firewall Capacity: 16 million concurrent sessions; 720,000 new sessions/second; 229.5 Mpps
- Firewall Latency (64 byte, UDP): 3.78 / 2.5 μs*
- VPN Performance: 55 Gbps IPsec (512 byte); 10 Gbps SSL-VPN; 2,000 gateway-to-gateway IPsec tunnels
- SSL Inspection: 16.7 Gbps (IPS, avg. HTTPS); 18,000 CPS; 1.6 million concurrent sessions

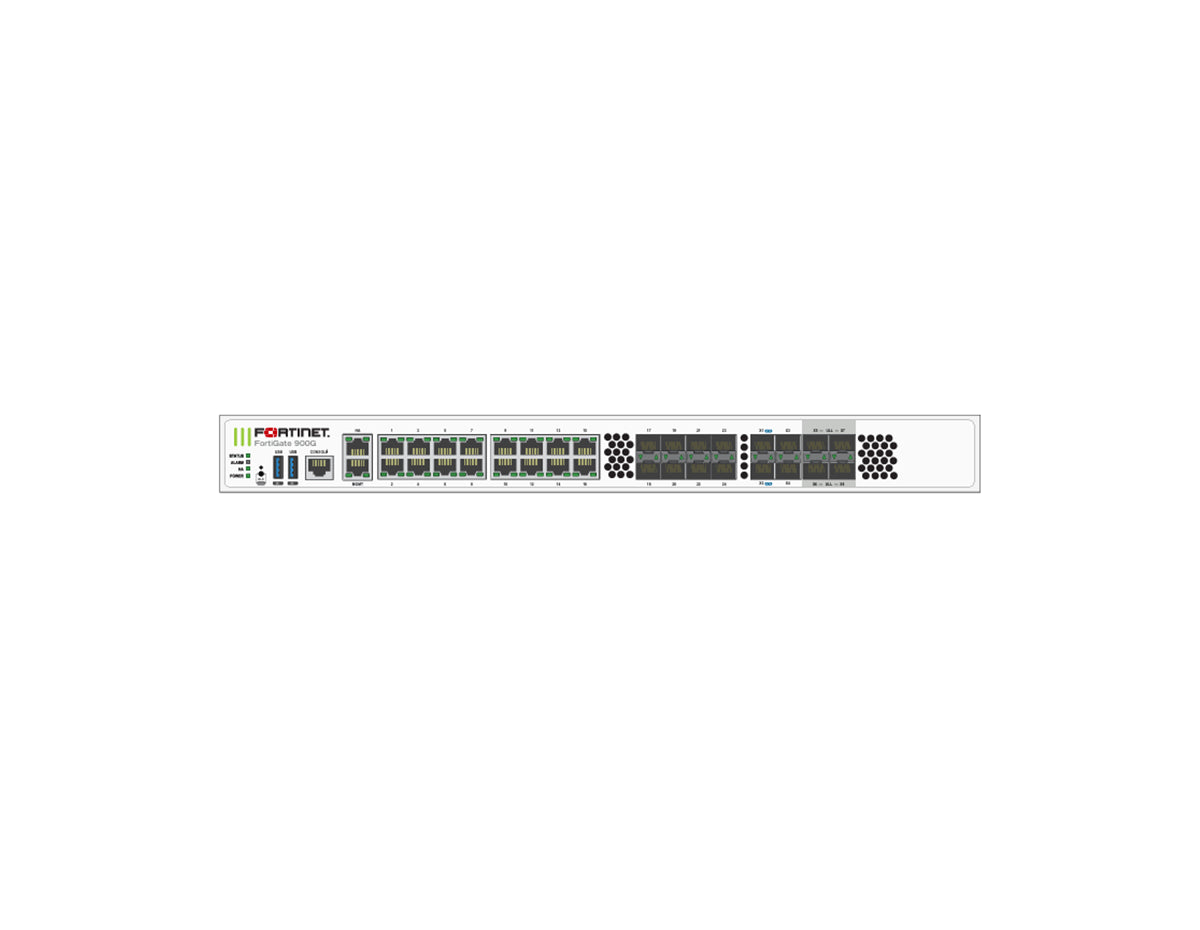

- Interfaces: 4x 25GE/10GE SFP28/SFP+ ULL, 4x 10GE/GE SFP+/SFP, 8x GE SFP, 16x GE RJ45 switch + 1x GE RJ45 MGMT, 1x 2.5GE/GE HA
- Power and Cooling: 48–60VDC; 184 W / 323 W (avg/max); 1103 BTU/h; dual hot swappable PSUs
- Physical and Environment: 1.5 x 17.0 x 15.0 in (44.45 x 432 x 380 mm); 16.53 lbs (7.5 kg); 32°F to 113°F (0°C to 45°C); 10% to 90% non-condensing
Upgrade Your Network Security
Deploy the high-performance FG-900G-DC-BDL-950-36 FortiGate 900G-DC bundle for next-level speed, resilient dual DC power, and enterprise-grade coverage with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 3 Year.
