Fortinet FG-900G-DC-BDL-950-12 1U Rackmount Firewall, 1-Year Unified Threat Protection (UTP)
Overview
The Fortinet FortiGate 900G Series is a 1RU data-centre edge platform with Ultra Low Latency 25GE/10GE SFP28/SFP+ interfaces. The datasheet publishes firewall latency figures of 3.78 / 2.5 microseconds, with the latency measurement based on the Ultra Low Latency ports. The series uses SPU NP7 and CP9 acceleration, supports 28 million concurrent TCP sessions and 50,000 firewall policies, and is available in AC and DC power variants. Both the AC and DC models use dual hot-swappable power supplies. Two SFP SX transceivers are included. The FG-900G-DC-BDL-950-12 is the configuration without onboard storage, so logging goes to FortiAnalyzer, FortiGate Cloud or a syslog collector; the FG-900G is the otherwise closely matched model with AC power supplies instead of DC. FortiOS forwards both IPv4 and IPv6 traffic; Fortinet does not publish a routing-protocol list for this appliance in the datasheet, which is why the specification table records the protocols as not published while stating IPv6 support. This part number is the bundled configuration: the same appliance supplied with a prepaid FortiGuard Unified Threat Protection (UTP) subscription and FortiCare Premium support for 1 year (12 months). The appliance itself is the FG-900G-DC as sold on its own; what the bundle adds is the FortiGuard service entitlement and 24x7x365 support with one-hour response for critical issues.
Technical Details

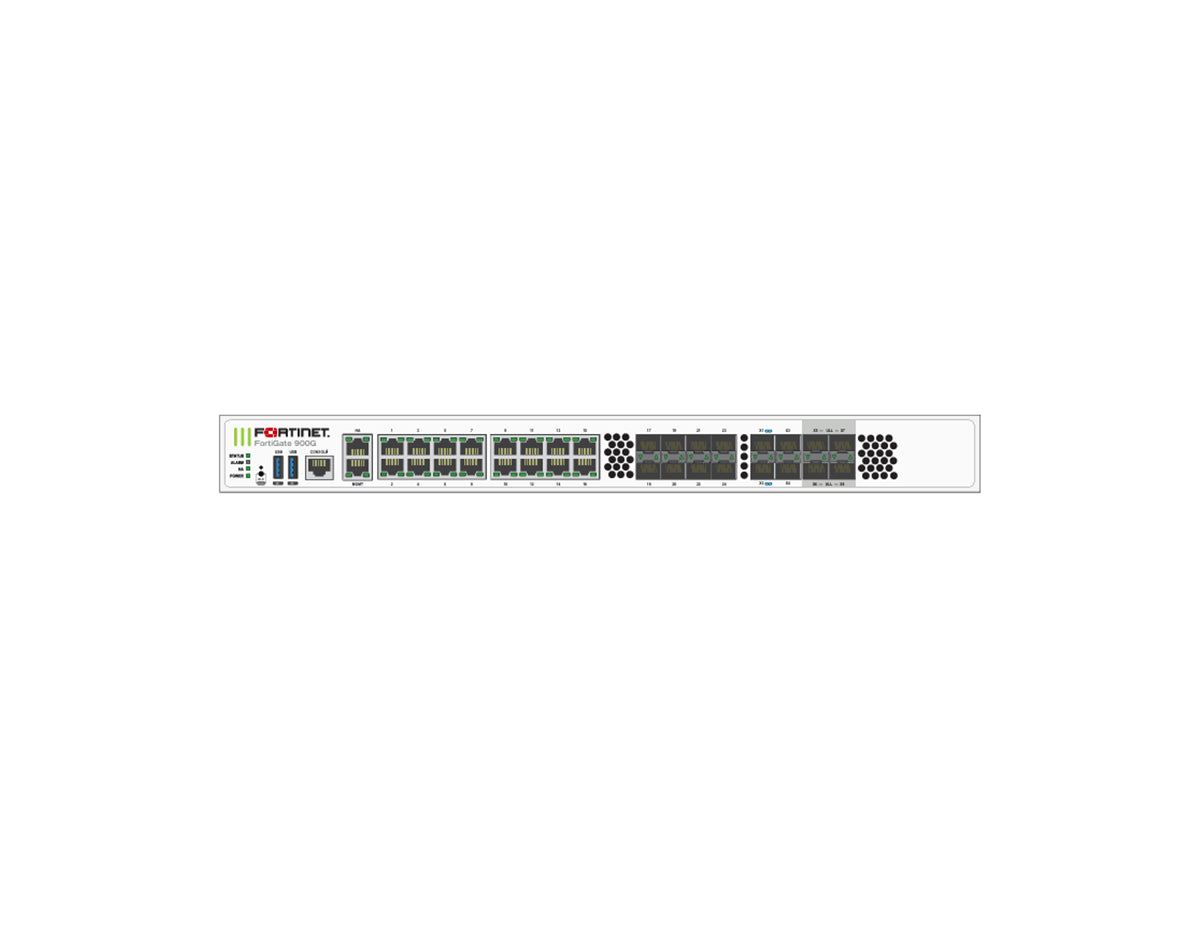

The Fortinet FortiGate 900G-DC FG-900G-DC-BDL-950-12 is a 1U rack-mount next-generation firewall with sixteen gigabit Ethernet copper ports, eight gigabit SFP slots, four 10 GE SFP+ slots and four Ultra Low Latency 25 GE SFP28 slots, running FortiOS. Firewall throughput is 164 / 163 / 153 Gbps at 1518, 512 and 64-byte UDP, and threat protection throughput is 30 Gbps on the Enterprise Traffic Mix with logging enabled. IPsec VPN throughput is 55 Gbps at 512 bytes with AES256-SHA256, and SSL inspection throughput is 16.7 Gbps with IPS on average HTTPS. It holds 28 million concurrent TCP sessions and opens 720,000 new sessions per second. Power comes from dual hot-swappable 48-60V DC power supplies. It operates from 0 to 45 degrees Celsius and is used at a data-centre edge for north-south inspection, DMZ segmentation and high-throughput VPN aggregation.
Best For
The FG-900G-DC suits a data-centre edge that needs 30 Gbps of threat protection throughput with 28 million concurrent sessions behind it. Its sixteen gigabit Ethernet copper ports, eight gigabit SFP slots, four 10 GE SFP+ slots and four Ultra Low Latency 25 GE SFP28 slots cover the port requirement. Firewall throughput is 164 Gbps at 1518-byte UDP and 153 Gbps at 64 bytes, which is the headroom on uninspected traffic, while 30 Gbps is the figure to size against once inspection is on. Choose it over the FG-900G where the site supplies 48-60V DC power. As a bundled part number it arrives with 1 year (12 months) of FortiGuard Unified Threat Protection (UTP) and FortiCare Premium support already attached, so the services do not need ordering separately.
Not suitable if:
- you need logs and reports retained on the appliance itself, since this configuration has no onboard storage
- your site supplies only AC power, since this variant takes a 48-60V DC input
- you need Power over Ethernet for cameras or access points, since this appliance provides none
- your inspected traffic exceeds 30 Gbps, since that is the published threat protection throughput
- you need a hardened appliance for a plant floor or outdoor cabinet, since this unit is rated only from 0 to 45 degrees Celsius
- you want a different subscription term or bundle tier, since this part number is fixed at 1 year of Unified Threat Protection (UTP)
FG-900G-DC-BDL-950-12 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 16×1GbE RJ45, 8×1GbE SFP, 4×10GbE SFP+, 4×25GbE SFP28 |
| Max Port Speed | 25 GbE |
| Management & Console Ports | 1×1GbE RJ45 management, 1×2.5GbE RJ45 HA, 1×RJ45 console, 2×USB |
| Performance & Scale | |
| Firewall Throughput | 164 / 163 / 153 Gbps (1518 / 512 / 64-byte UDP) |
| Threat Prevention Throughput | 30 Gbps (Enterprise Traffic Mix, logging enabled) |
| TLS/SSL Inspection Throughput | 16.7 Gbps (IPS, average HTTPS) |
| IPsec VPN Throughput | 55 Gbps (512-byte, AES256-SHA256) |
| Power & Thermal | |

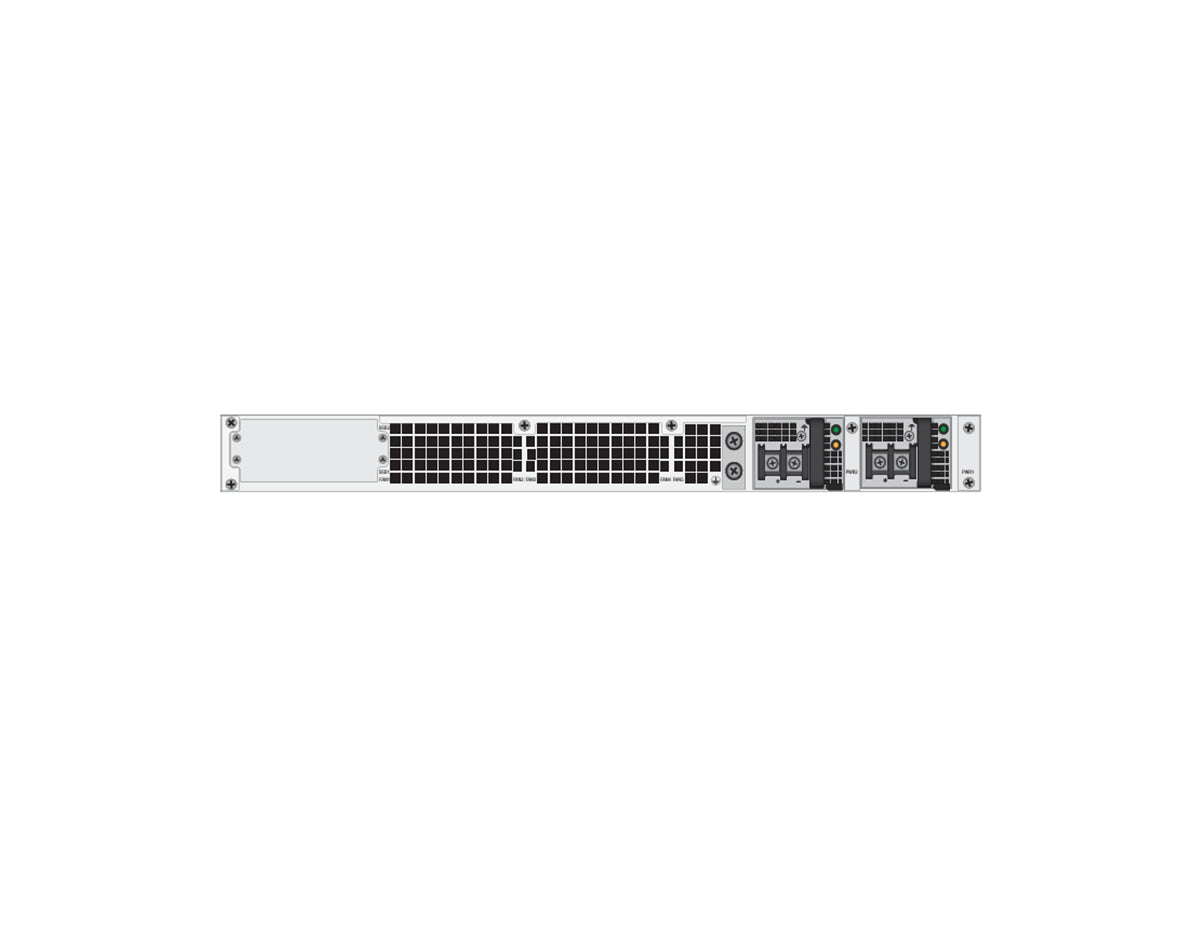

| Power Supply | 48-60V DC input; dual hot-swappable power supplies, two fitted by default; maximum current 7A @48V |
| Redundant Power Supply | Yes |
| Maximum Power Consumption | 313 W (170 W average) |
| Cooling | Forced airflow, side and front to back |
| Physical & Environmental | |
| Operating System | FortiOS |
| Form Factor | 1U Rackmount |
| Dimensions (H x W x D) | 1.75 × 17.0 × 15.0 in (4.445 × 43.2 × 38.0 cm) |
| Weight | 15.98 lb (7.25 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Software | |
| Central Management Platform | FortiManager, FortiGate Cloud |
| Routing Protocols & IPv6 | Routing protocols not published; IPv6 supported |
| Other | |
| Maximum Concurrent Sessions | 28,000,000 (TCP) |
| New Sessions per Second | 720,000 (TCP) |
| Maximum IPsec VPN Tunnels | 2,000 gateway-to-gateway, 50,000 client-to-gateway |
| High Availability | Active/Active, Active/Passive, Clustering |
FG-900G-DC-BDL-950-12 Accessories
| Included Accessories | 2x SFP SX Transceivers, Dual hot swappable DC power supplies (2 PSUs included) |
| Optional Accessories | DC Power Supply (SP-FG400F-DC-PS), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), Direct Attach Cables (10 GE SFP+, 25 GE SFP28) |
FAQ
Does the Fortinet FortiGate 900G-DC FG-900G-DC-BDL-950-12 support PoE?
No. The FG-900G-DC-BDL-950-12 provides no Power over Ethernet on any port, so cameras, access points and IP phones need their own power source or a PoE switch between them and the firewall. Its interfaces are sixteen gigabit Ethernet copper ports, eight gigabit SFP slots, four 10 GE SFP+ slots and four Ultra Low Latency 25 GE SFP28 slots, all data-only. Within the FortiGate G series PoE appears on separate part numbers, not on this one.
What transceivers do the SFP slots on the FG-900G-DC-BDL-950-12 use?
The appliance has eight GE SFP slots, four 10GE/GE SFP+/SFP slots, and four separate 25GE/10GE SFP28/SFP+ Ultra Low Latency slots. Fortinet lists the compatible transceiver modules in the ordering information. Two SFP SX transceivers are included. Other transceivers are sold separately.
How does high availability work on the Fortinet FortiGate 900G-DC FG-900G-DC-BDL-950-12?
The FG-900G-DC-BDL-950-12 supports Active-Active, Active-Passive and Clustering high-availability modes. An HA pair should be two identical models running the same FortiOS build, and the units synchronise configuration and session state over the HA link. This model has a dedicated HA port.
How much traffic can the FG-900G-DC-BDL-950-12 handle?
Fortinet publishes no user count for the FG-900G-DC-BDL-950-12, so size it on the capacity figures. Firewall throughput is 164 / 163 / 153 Gbps at 1518, 512 and 64-byte UDP. Small packets cost throughput. Threat protection throughput is 30 Gbps once IPS, application control and malware protection are enabled, and SSL inspection throughput is 16.7 Gbps; size against those. It holds 28 million concurrent TCP sessions and opens 720,000 new sessions per second. All values are stated as up to.
What is the difference between the FG-900G-DC-BDL-950-12 and the FG-900G?
Their interface layout and published performance specifications are the same: the FG-900G is the otherwise closely matched model with AC power supplies instead of DC. The power input is what differs, 100-240V AC against 48-60V DC, and Fortinet publishes one set of weight and power-consumption figures for both. Both run the same FortiOS build and take the same FortiGuard subscriptions.
What is included in the FG-900G-DC-BDL-950-12 bundle?
The FG-900G-DC-BDL-950-12 is the appliance plus a prepaid FortiGuard Unified Threat Protection (UTP) subscription and FortiCare Premium support, both for a term of 1 year (12 months). Unified Threat Protection (UTP) covers IPS, anti-malware, URL, DNS and video filtering, and anti-spam. AI-based inline malware prevention, data loss prevention and Attack Surface Security are Enterprise Protection services, not UTP ones. FortiCare Premium provides 24x7x365 availability with one-hour response for critical issues and next-business-day response for everything else.
Does the FG-900G-DC-BDL-950-12 require a subscription to operate?
No. Core firewall, routing and networking functions can continue to operate without an active FortiGuard subscription, while subscription-based security intelligence, updates and services require an active subscription. The FG-900G-DC-BDL-950-12 ships with a prepaid FortiGuard Unified Threat Protection (UTP) subscription and FortiCare Premium support for 1 year (12 months); when that term ends, the FortiGuard intelligence and the support entitlement lapse and can be renewed.
What condition is the FG-900G-DC-BDL-950-12 sold in, and what warranty applies?
Network Devices Inc. supplies the FG-900G-DC-BDL-950-12 new and factory sealed, in original Fortinet packaging with the standard accessories. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Because the unit is new rather than renewed, it is eligible for Fortinet registration and for FortiCare and FortiGuard entitlements ordered against it, which is not always the case with refurbished stock. Orders ship from our New Jersey and Texas warehouses.
