The Fortinet FortiGate 900G Series Next-Generation Firewall (NGFW) utilizes advanced artificial intelligence (AI) and machine learning (ML) to provide comprehensive threat protection at scale. Driven by Fortinet's patented Network Processor 7 (NP7) and the ninth-generation Content Processor (CP9), this appliance delivers superior performance, including 42 Gbps of IPS throughput and 74.8 Gbps of Application Control throughput. Designed for enterprises requiring massive throughput and port density, the FG-900G is capable of handling up to 229.5 million packets per second, ensuring minimal performance impact under heavy traffic and deep inspection.
This FG-900G-BDL-950-12 bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) services for 1 year.
Tailored for modern, high-bandwidth data centers and large campus edges, the FortiGate 900G features an extensive and flexible interface set, including four 25 GE SFP28 slots, four 10 GE SFP+ slots, eight 1 GE SFP slots, and sixteen GE RJ45 switch ports plus dedicated GE management and 2.5 GE/GE HA ports. It incorporates a Trusted Platform Module (TPM) to generate, store, and authenticate cryptographic keys, helping harden the appliance with hardware-based security mechanisms. With redundant dual hot swappable AC power supplies included by default, the FG-900G offers the resilience needed for mission-critical deployments and high availability configurations.
Secure Networking with Unparalleled NP7/CP9 Acceleration and 42 Gbps IPS Throughput
Key Benefits
- High-Speed Processing: Delivers 42 Gbps IPS throughput and 31 Gbps NGFW throughput via NP7 and CP9 processors.
- Extensive Port Density: Equipped with 4x 25 GE SFP28, 4x 10 GE SFP+, and 16x GE RJ45 switch ports plus dedicated management and HA ports for maximum connectivity flexibility.
- Ultra-Low Latency: Maintains a 3.78 / 2.5 μs firewall latency, essential for critical, time-sensitive network applications.
- Encrypted Traffic Inspection: Provides 16.7 Gbps of SSL inspection throughput to secure encrypted data without creating bottlenecks.
- Hardware Root of Trust: Includes a Trusted Platform Module (TPM) to help protect cryptographic keys and strengthen appliance integrity.

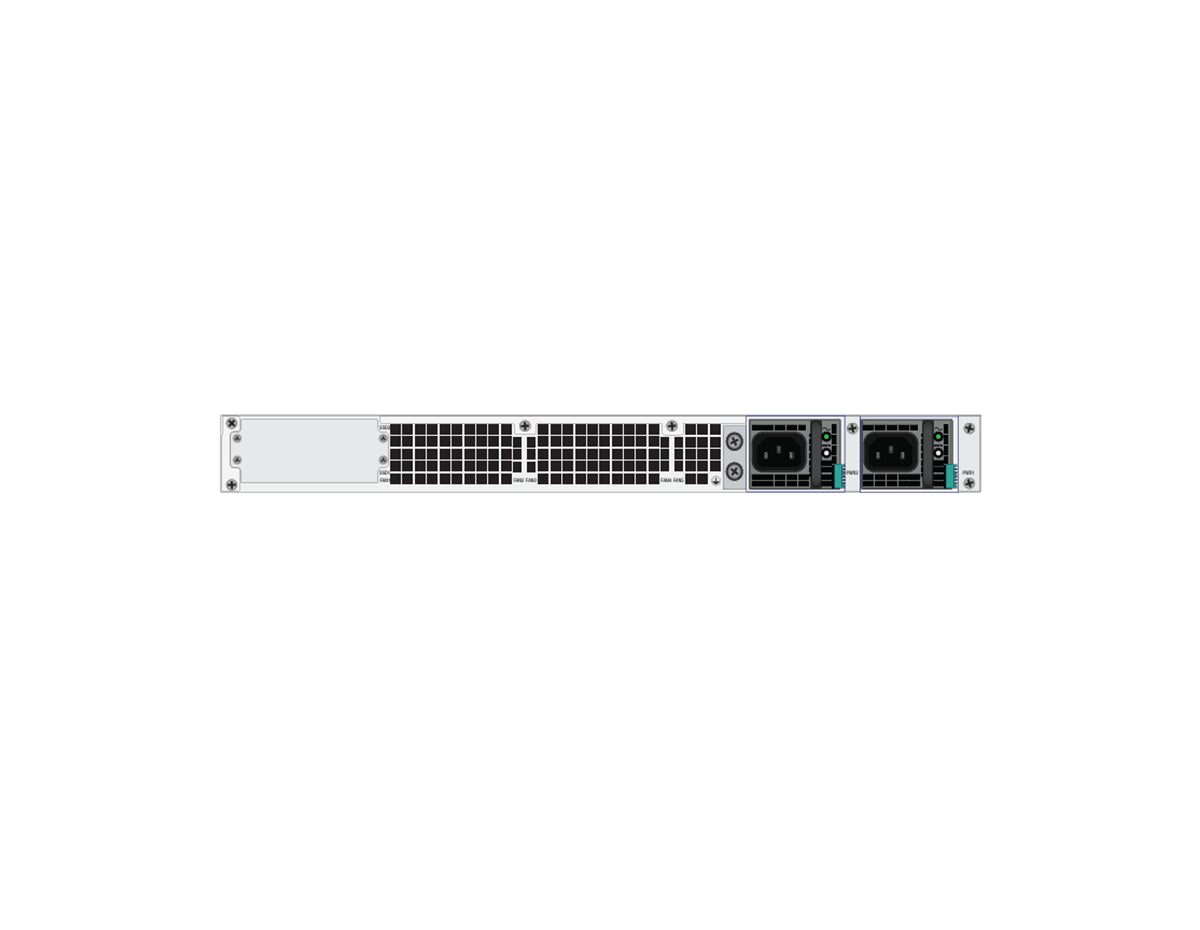

- Operational Resilience: Includes dual hot swappable power supplies by default to maximize uptime.
- AI-Powered Defense: Leverages FortiGuard AI/ML services to protect against known, zero-day, and emerging threats.
Ideal Use Cases
- Enterprise Edge Security: Securing the network perimeter with high-performance inspection and massive port capacity.
- High-Speed Secure SD-WAN: Delivering converged networking and security for large-scale, distributed environments.
- Internal Segmentation: Using VXLAN segmentation to isolate network segments and prevent lateral threat movement.
- Data Center Gateway: Providing ultra-fast, high-density firewall and VPN termination capabilities.
Technical Specifications Summary
- IPS Throughput: 42 Gbps
- NGFW Throughput: 31 Gbps
- Threat Protection Throughput: 30 Gbps
- IPv4 Firewall Throughput (UDP): 164 / 163 / 153 Gbps (1518/512/64 byte)
- Firewall Latency (64 byte UDP): 3.78 / 2.5 μs
- Firewall Throughput (Packet per Second): 229.5 Mpps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 16.7 Gbps (18,000 CPS; 1.6 Million concurrent sessions)

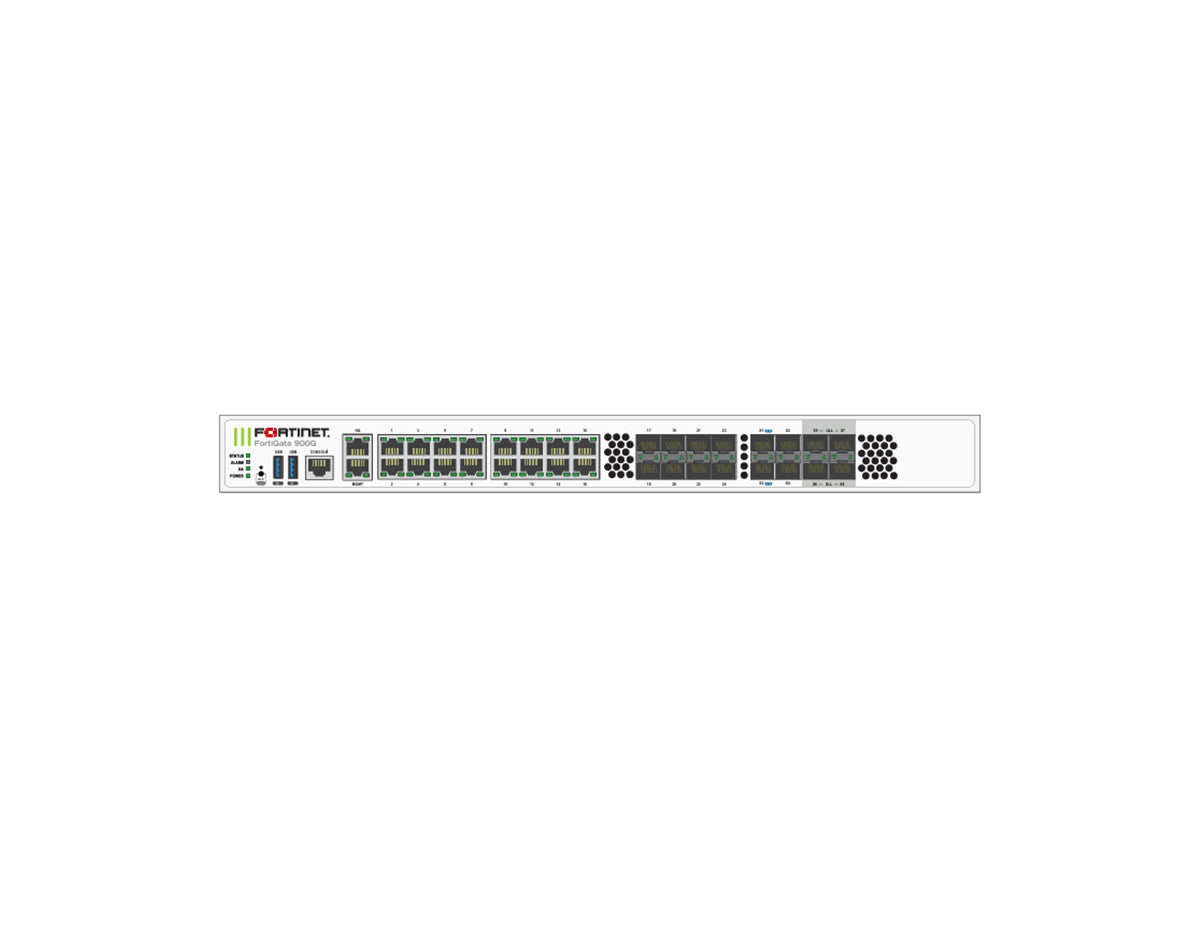

- Interfaces: 4x 25 GE SFP28, 4x 10 GE SFP+, 8x GE SFP, 17x GE RJ45 (16x Switch, 1x MGMT), 1x 2.5 GE/GE RJ45 HA
- Form Factor: Rack Mount, 1RU
- Power Consumption (Average/Maximum): 170 W / 313 W
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
Upgrade Your Network Security
Deploy the high-performance FortiGate 900G (FG-900G-BDL-950-12) for next-level speed and security consolidation.
