The FortiGate 81F-POE-BDL-950-36 is a desktop firewall designed for distributed sites that need integrated PoE connectivity and onboard storage. With 8 GE RJ45 PoE/+ ports and a 96W total PoE power budget, it can power compatible edge devices directly from the appliance while providing 128GB of onboard SSD storage.
This firewall runs on FortiOS with integrated SD-WAN capabilities and delivers up to 10 / 10 / 7 Gbps firewall throughput (1518/512/64 byte UDP), 1.4 Gbps IPS throughput, and 6.5 Gbps IPsec VPN throughput (512 byte). This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 years.
Secure Networking Power and Visibility with 96W PoE+ and 128GB SSD
Key Benefits

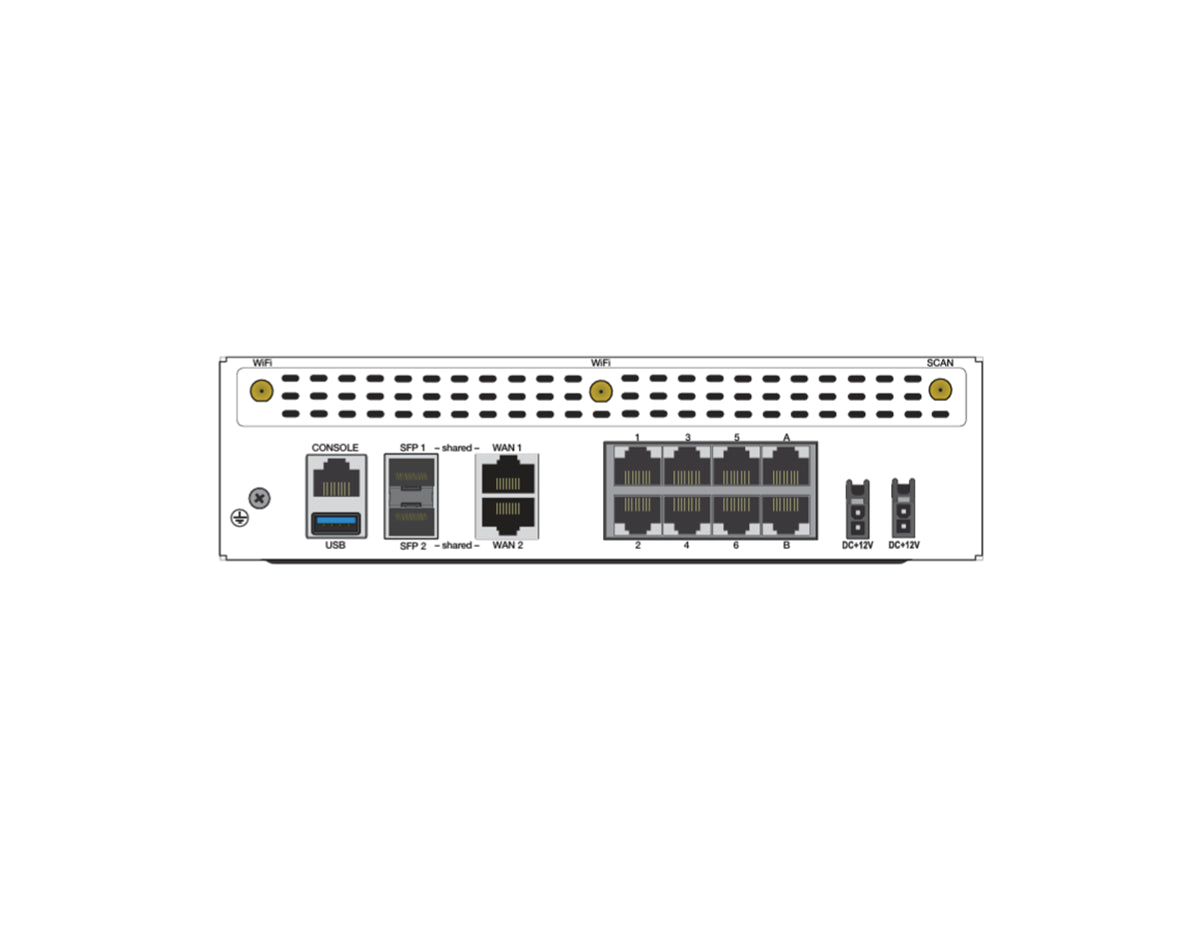

- Integrated Power Delivery: Features 8x GE PoE/+ ports with a 96W total power budget for powering compatible edge devices.
- Onboard Storage Included: Includes 128GB SSD onboard storage.
- Bundle + Support Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage included for 3 years.
- ASIC-Accelerated Performance: Delivers up to 10 / 10 / 7 Gbps firewall throughput and 1.4 Gbps IPS throughput with low latency.
- Converged Security Fabric: Supports up to 96 FortiAPs (total) and up to 24 FortiSwitches.
- Resilient Power Option: Input rated at +54V DC, 3A with dual redundancy optional.
- Optimal Network Latency: Firewall latency rated at 3.23 μs (64 byte UDP).
Ideal Use Cases
- Secure Branch Deployments: Firewall and SD-WAN for distributed enterprise and branch locations.
- PoE-Enabled Edge Connectivity: Power compatible access points, IP phones, and cameras using built-in PoE/+ ports.
- Distributed Enterprises: Sites requiring strong VPN and threat inspection performance for consistent user experience.
- Secure Remote Work Hubs: Deployments supporting up to 2,500 Client-to-Gateway IPsec VPN Tunnels.
Technical Specifications Summary
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 900 Mbps
- Firewall Throughput (IPv4, 1518/512/64 byte UDP): 10 / 10 / 7 Gbps
- VPN Throughput: 6.5 Gbps (IPsec, 512 byte)
- SSL-VPN Throughput: 950 Mbps
- Concurrent Sessions (TCP): 1.5 Million
- Total PoE Power Budget: 96 W (max 30 W per PoE/+ port)
- Power Consumption (Average / Maximum): 98 W / 137 W
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Dimensions (H x W x L): 60 x 216 x 178 mm (2.4 x 8.5 x 7.0 inches)
- Weight: 1.4 kg (3.1 lbs)
Upgrade Your Network Security
Streamline your branch operations with the high-performance, consolidated FortiGate 81F-POE-BDL-950-36.
