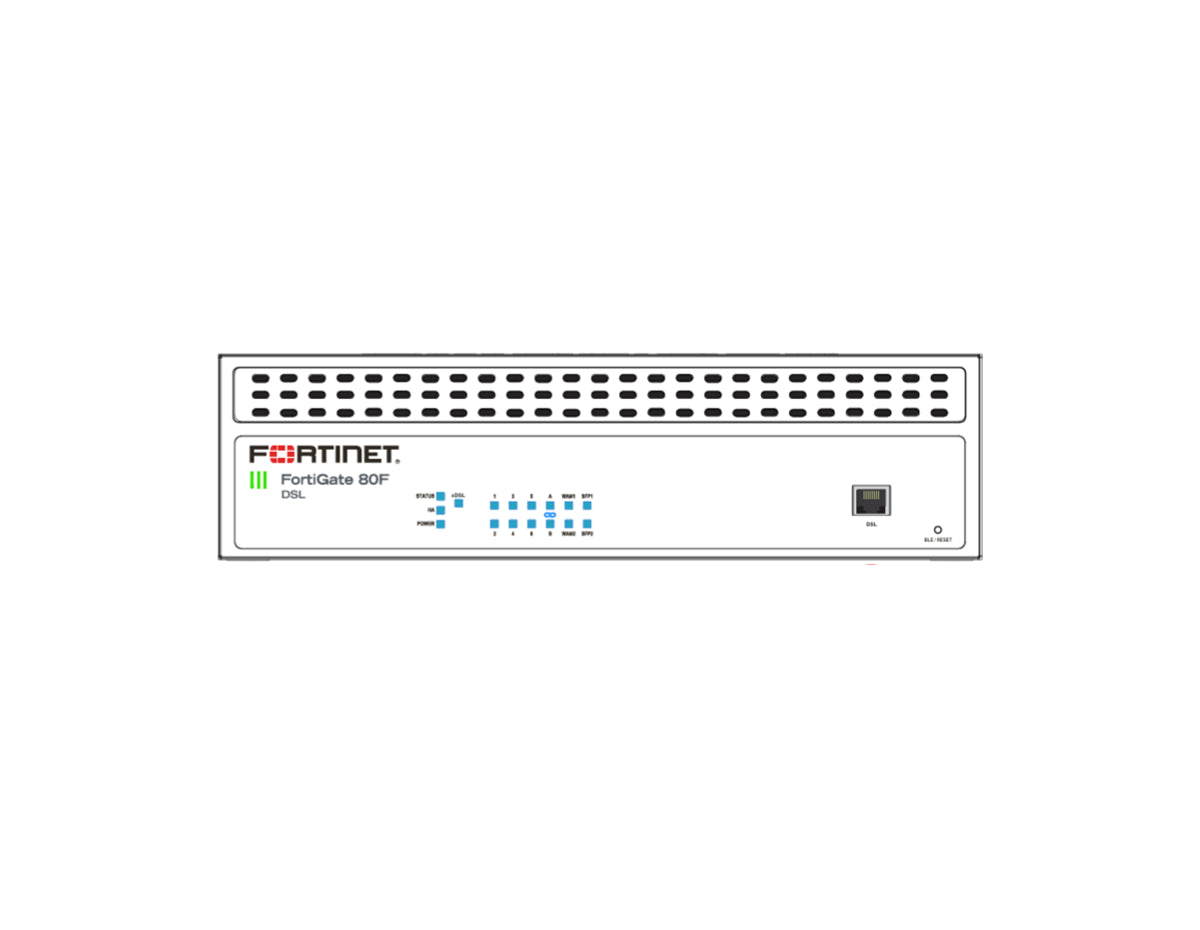

The FortiGate 80F-DSL-BDL-950-12 integrates specialized broadband connectivity directly into the security appliance, offering a seamless all-in-one solution for branch offices and retail locations. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model reduces the complexity and point-of-failure risks associated with external modems. This consolidation allows businesses to leverage low-cost broadband lines for primary connectivity or backup WAN links while maintaining enterprise-grade security controls through the Fortinet Security Fabric.
This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 year, aligning deployment with ongoing security updates and support coverage. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, helping keep secure connectivity from becoming a bottleneck while enabling advanced SD-WAN capabilities such as dynamic path selection and application steering.
Integrated DSL Connectivity with Converged Security
Key Benefits
- Integrated DSL Modem: Built-in RJ11 WAN port supports VDSL2, ADSL2+, and legacy standards (Annex A/B/I/J/M/L) for direct broadband connection.
- Bundle + Support Included: FortiCare Premium and FortiGuard Unified Threat Protection (UTP) coverage included for 1 year.
- ASIC-Accelerated Performance: Built on the SP4 ASIC to deliver industry-leading firewall and SD-WAN performance.
- Consolidated Footprint: Reduces equipment clutter and power consumption by combining the modem, router, and firewall into a single device.
- Secure SD-WAN: Enables secure direct internet access with SSL inspection and application-aware routing.
- High Port Density: Features 8 x GE RJ45 ports and 2 x RJ45/SFP shared media ports, plus 1 x DSL RJ11 port for flexible WAN/LAN connectivity.
- Unified Management: Simplifies deployment and monitoring via FortiManager and FortiGate Cloud.
Ideal Use Cases
- Retail Locations: Consolidate point-of-sale security and broadband connectivity in a single compact device.
- Remote Branch Offices: Utilize DSL lines for cost-effective primary or backup WAN connectivity with full NGFW protection.
- Managed Service Providers (MSPs): Deploy a unified customer premise equipment (CPE) solution that reduces truck rolls and simplifies troubleshooting.
Technical Specifications Summary
- Firewall Throughput (1518 / 512 / 64 byte UDP): 10 / 10 / 7 Gbps
- IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput / Concurrent Users: 950 Mbps / 200 (Tunnel Mode)

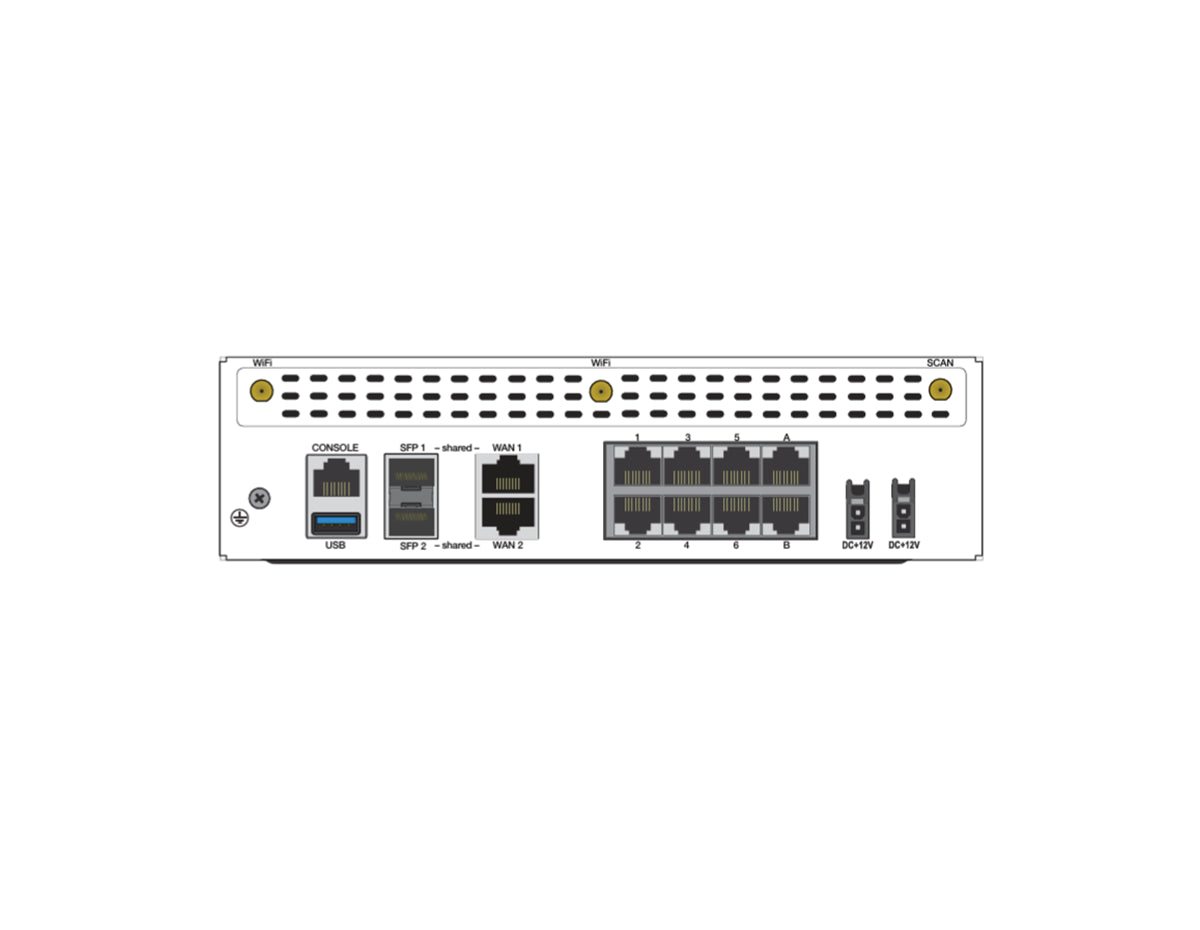

- Interfaces: 1 x DSL port (RJ11), 8 x GE RJ45 ports, 2 x RJ45/SFP shared media ports
- Power: 12V DC, 5A; 28.0 W average / 31.6 W maximum
- Dimensions (H x W x L) / Weight: 60 x 216 x 178 mm / 1.39 kg
- Operating Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity
Upgrade Your Network Security
Simplify your branch network with the integrated DSL capabilities of the FortiGate 80F-DSL-BDL-950-12 and included 1-year UTP bundle.
