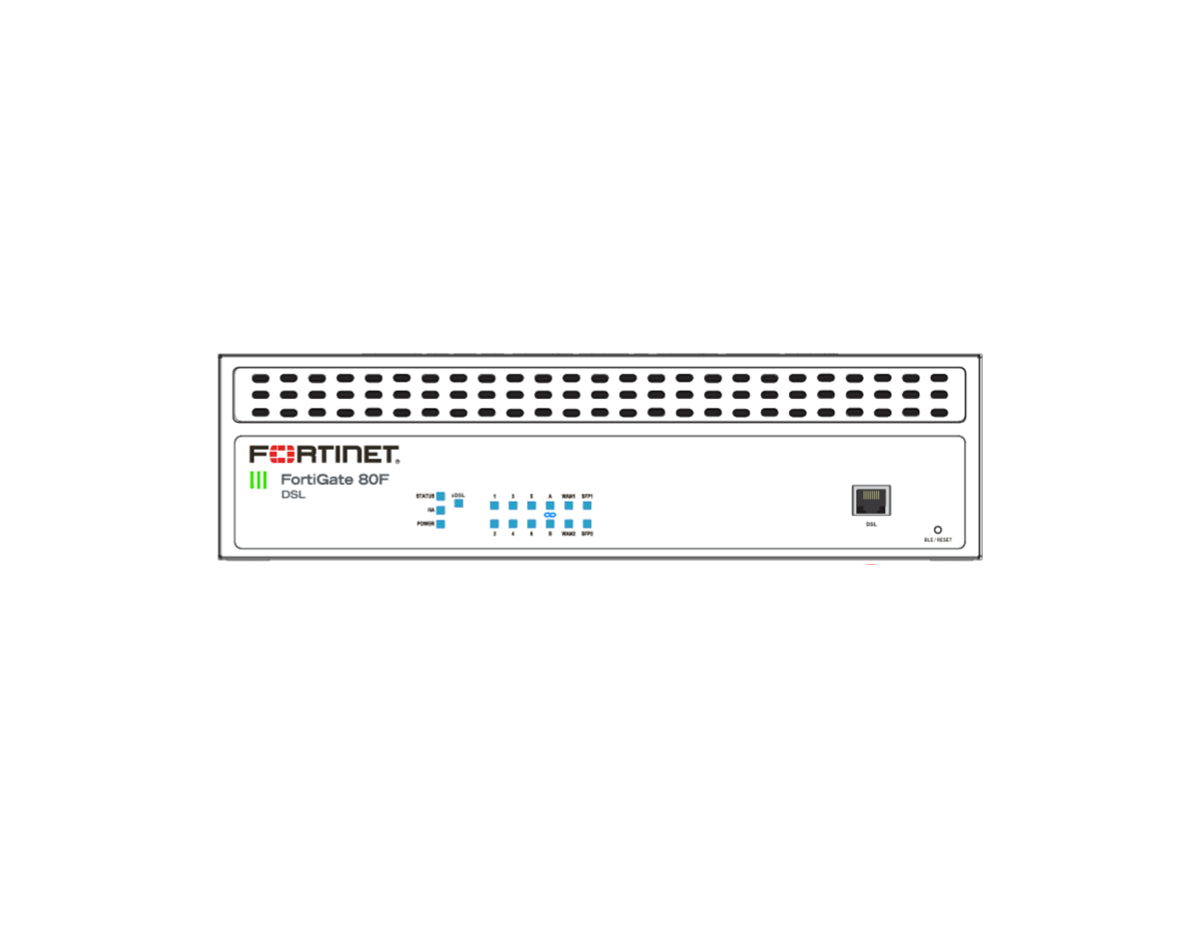

The FortiGate 80F-DSL-BDL-809-36 integrates firewalling, SD-WAN, and security in one appliance for distributed enterprise sites, featuring an embedded DSL module with a dedicated RJ11 port supporting VDSL2, ADSL2, ADSL2+, and legacy DSL standards.
This bundle includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps IPv4 firewall throughput (1518 / 512 / 64 byte UDP) and up to 1.4 Gbps IPS throughput, supporting secure connectivity and SD-WAN deployment at branch locations.
Integrated DSL Connectivity with Converged Security
Key Benefits
- Integrated DSL Connectivity: 1x DSL RJ11 port supports VDSL2, ADSL2, ADSL2+, G.DMT, T1.413, and G.Lite; supported types include Annex A, B, I, J, M & L.
- Bundle + Coverage Included: Includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection (BDL-809-36).
- ASIC-Accelerated Architecture: Built on the secure SD-WAN ASIC SP4 for accelerated networking and security functions.
- Converged Networking and Security: FortiOS converges networking and security in a single operating system for unified protection and operations.
- Secure SD-WAN Capabilities: Integrated SD-WAN with accelerated application identification and steering for efficient WAN edge operation.
- Flexible Interfaces: 2x GE RJ45/SFP shared media ports, 6x GE RJ45 ports, and 2x GE RJ45 FortiLink ports (default), plus 1x USB and 1x RJ45 console.
- Centralized Management Options: Supports centralized management and visibility using FortiManager and FortiGate Cloud.
Ideal Use Cases
- Perimeter Protection: Inspect and control inbound and outbound traffic based on defined security policies.
- Secure SD-WAN WAN Edge: Consolidate SD-WAN and firewall functions with unified management from a single FortiOS operating system.
- Secure Branch Deployments: Extend protection across WAN, LAN, and branch connectivity with support for FortiSwitch and FortiAP integration.
Technical Specifications Summary
- IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 10 / 10 / 7 Gbps
- IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps
- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
- SSL Inspection Throughput (IPS, avg. HTTPS): 715 Mbps; SSL Inspection CPS: 700; SSL Inspection Concurrent Sessions: 100,000
- Concurrent Sessions (TCP): 1.5 Million; New Sessions/Second (TCP): 45,000

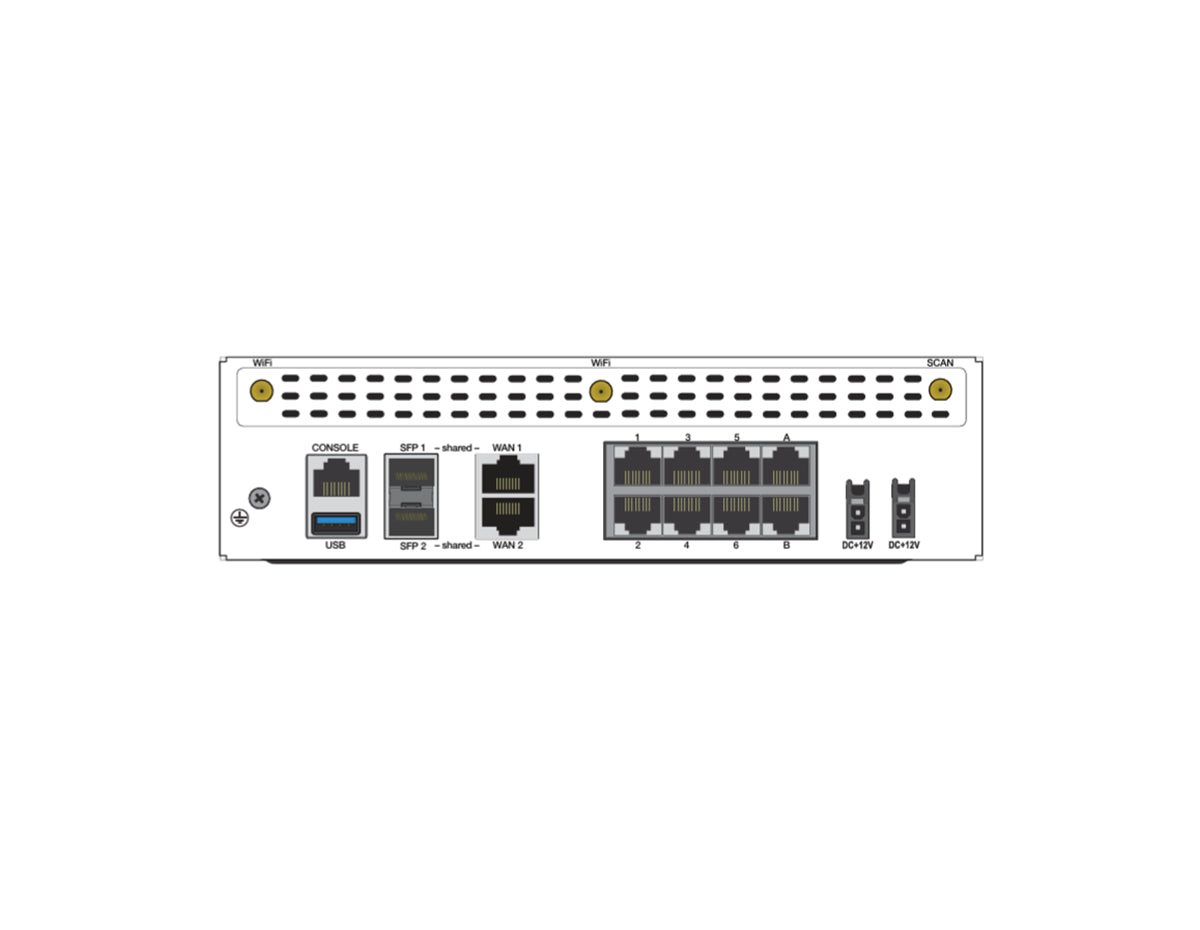

- Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media pairs, 6x GE RJ45 ports, 2x GE RJ45 FortiLink ports (default), 1x USB, 1x RJ45 console
- Power & Physical: 12V DC, 5A; 28.0 W average / 31.6 W maximum; 60 x 216 x 178 mm; 1.39 kg
- Operating Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity; 24.14 dBA noise level
Upgrade Your Network Security
Simplify branch connectivity with the FortiGate 80F-DSL-BDL-809-36 Firewall, combining integrated DSL access with SD-WAN capabilities and included 3-year Enterprise Protection bundle coverage.
