The FortiGate 80F-DSL-BDL-809-12 integrates specialized broadband connectivity directly into the security appliance, offering a seamless all-in-one solution for branch offices and retail locations. By incorporating a VDSL2/ADSL2+ DSL modem via a dedicated RJ11 port, this model supports direct broadband connection while maintaining enterprise-grade security controls through the Fortinet Security Fabric.
This bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 1 year. The FG-80F-DSL platform delivers up to 10 / 10 / 7 Gbps of firewall throughput (1518 / 512 / 64 byte UDP) and 1.4 Gbps of IPS performance, helping keep secure connectivity from becoming a bottleneck while enabling advanced SD-WAN capabilities such as dynamic path selection and application steering.
Integrated DSL Connectivity with Converged Security
Key Benefits
- Integrated DSL Modem: Built-in RJ11 WAN port supports VDSL2, ADSL2+, and legacy standards (Annex A/B/I/J/M/L) for direct broadband connection.
- Bundle + Support Included: FortiCare Premium and FortiGuard Enterprise Protection coverage included for 1 year.
- ASIC-Accelerated Performance: Built on the SP4 ASIC to deliver high-performance firewall and secure SD-WAN capabilities.
- Consolidated Footprint: Combines DSL modem connectivity and firewall functions in a single compact device.
- Secure SD-WAN: Enables secure direct internet access with SSL inspection and application steering.
- High Port Density: Features 6 internal GE RJ45 ports and 2 Shared Media ports in addition to the DSL interface for flexible LAN/WAN connectivity.
- Unified Management: Simplifies deployment and monitoring via FortiManager and FortiGate Cloud.
Ideal Use Cases
- Retail Locations: Consolidate point-of-sale security and broadband connectivity in a single compact device.
- Remote Branch Offices: Utilize DSL lines for cost-effective primary or backup WAN connectivity with full NGFW protection.
- Managed Service Providers (MSPs): Deploy a unified customer premise equipment (CPE) solution that reduces truck rolls and simplifies troubleshooting.
Technical Specifications Summary
- Firewall Throughput (1518 / 512 / 64 byte UDP): 10 / 10 / 7 Gbps
- IPS Throughput (Enterprise Traffic Mix): 1.4 Gbps
- NGFW Throughput (Enterprise Traffic Mix): 1 Gbps
- Threat Protection Throughput (Enterprise Traffic Mix): 900 Mbps
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- SSL-VPN Throughput: 950 Mbps; Concurrent SSL-VPN Users (Tunnel Mode): 200
- Firewall Latency (64 byte UDP): 3.23 μs; Concurrent Sessions (TCP): 1.5 Million

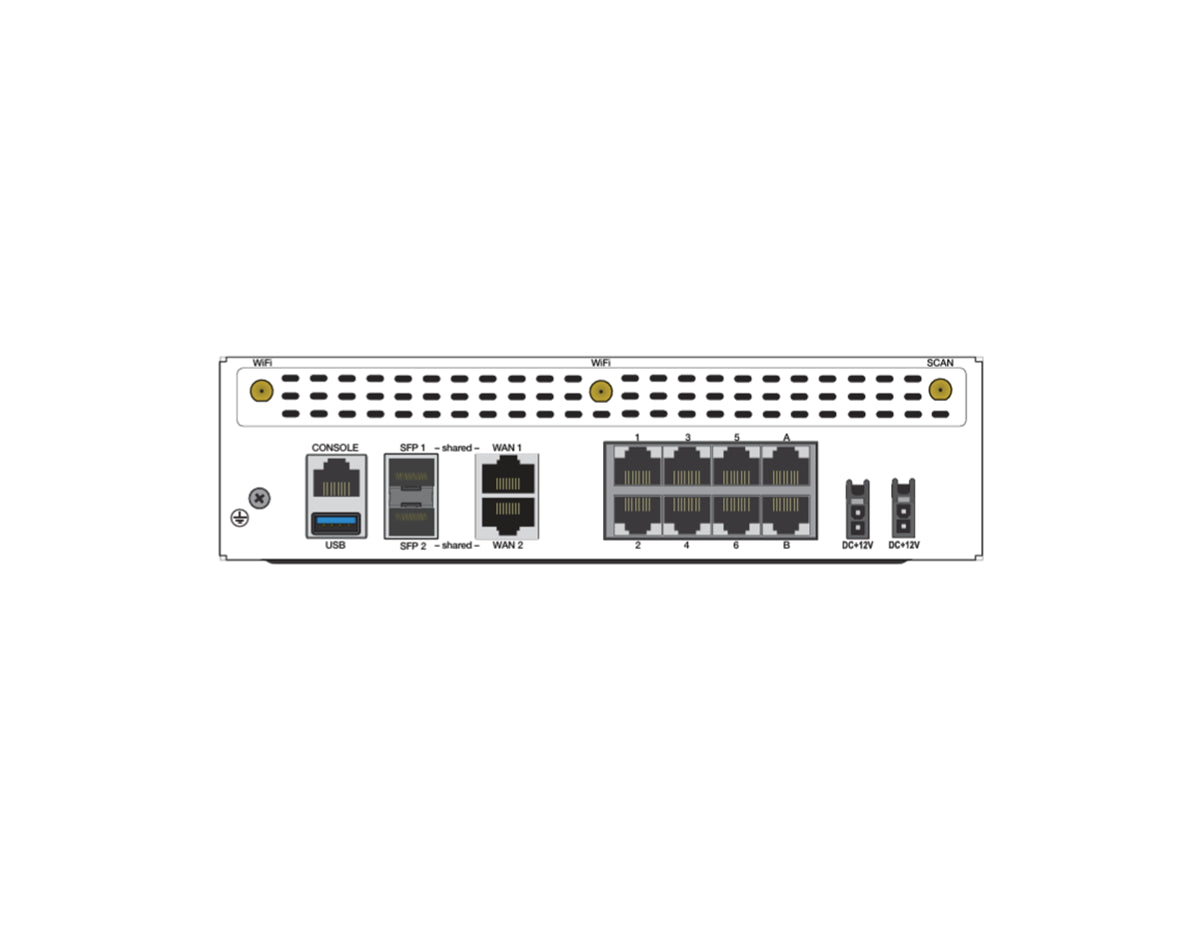

- Interfaces: 1x DSL RJ11, 2x GE RJ45/SFP shared media, 6x GE RJ45 ports, 2x GE RJ45 FortiLink ports (Default)
- Power: 12V DC, 5A; Power Consumption (Average / Maximum): 28.0 W / 31.6 W
- Dimensions (H x W x L) / Weight: 60 x 216 x 178 mm; 1.39 kg (3.07 lbs)
- Operating Environment: 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing humidity
Upgrade Your Network Security
Simplify your branch network with the integrated DSL capabilities of the FortiGate 80F-DSL-BDL-809-12, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection.
