The FortiGate 71G-POE Bundle pairs enterprise-grade NGFW security and SD-WAN with integrated PoE power delivery in a silent, fanless desktop appliance. With 4x dedicated PoE/+ ports and a 60W total power budget, it can power wireless access points, VoIP phones, cameras, and IoT devices directly from the firewall—reducing equipment sprawl at branch sites.
Powered by Fortinet’s SP5 ASIC and running FortiOS, this bundle delivers high-performance inspection and threat prevention while enabling centralized operations through FortiManager and FortiGate Cloud. The built-in 64GB SSD supports local logging for improved visibility and operational resilience at the edge.
Secure, Powered, and Converged Networking for the Edge
Key Benefits
- Bundle Coverage: Includes FortiCare Premium and FortiGuard Enterprise Protection for 36 months.
- Integrated PoE/+ Support: 4x GE RJ45 PoE/+ ports with a 60W budget for downstream devices.
- Onboard SSD Storage: 64GB SSD for local logging and visibility.
- High-Performance Security: Up to 1.5 Gbps NGFW and 1.3 Gbps Threat Protection throughput.
- Fanless Reliability: Silent operation for office and retail environments.
- FortiOS & Centralized Management: Streamlined operations with FortiManager and FortiGate Cloud.
Ideal Use Cases
- Retail & Point of Sale: Power and secure edge devices with one compact appliance.
- Small Branch Offices: Converged security, SD-WAN, and PoE for simplified deployments.
- Secure Telework / Micro-Branches: Quiet, compact NGFW with local logging.
Technical Specifications Summary
- Firewall Throughput (1518/512/64 byte UDP): 10 / 10 / 10 Gbps
- IPS / NGFW / Threat Protection Throughput: 2.5 / 1.5 / 1.3 Gbps
- IPsec VPN Throughput (512 byte): 7.1 Gbps
- SSL Inspection: 1.4 Gbps throughput; 715 CPS; 140,000 concurrent sessions
- Session Capacity: 1.4M concurrent sessions; 100,000 new sessions/second; 5,000 firewall policies

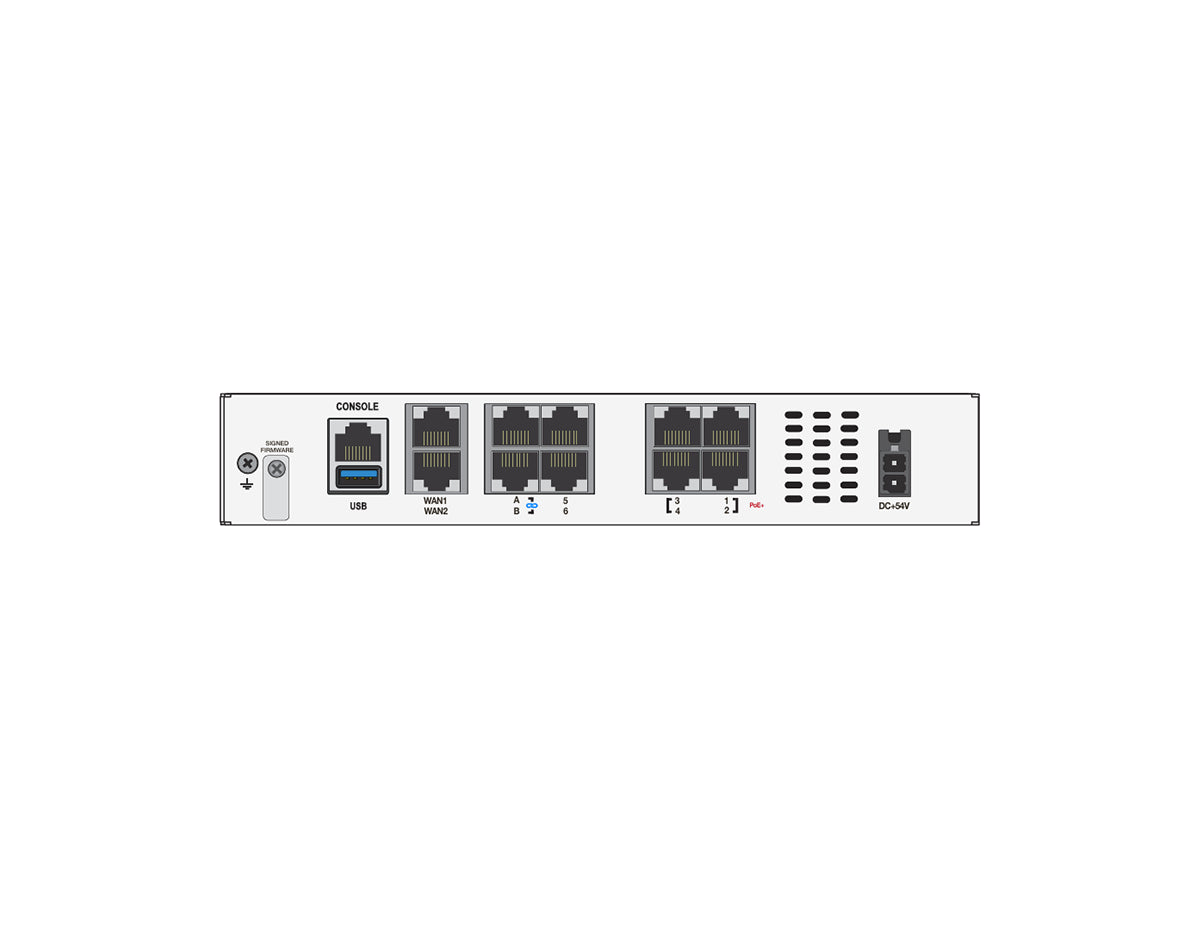

- Interfaces: 10x GE RJ45 ports (2x WAN, 4x internal ports, 4x PoE/+), 1x USB, 1x RJ45 console
- PoE Budget: 60 W total (max 30 W per PoE/+ port, 802.3at)
- Internal Storage: 64GB SSD
- Power Consumption (Avg/Max): 76 W / 79 W
- Physical: 40.5 x 216 x 160 mm; 0.993 kg (2.19 lbs)
- Compliance / Certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Deploy secure connectivity and integrated power at the edge with the FortiGate 71G-POE Bundle (FG-71G-POE-BDL-809-36).
