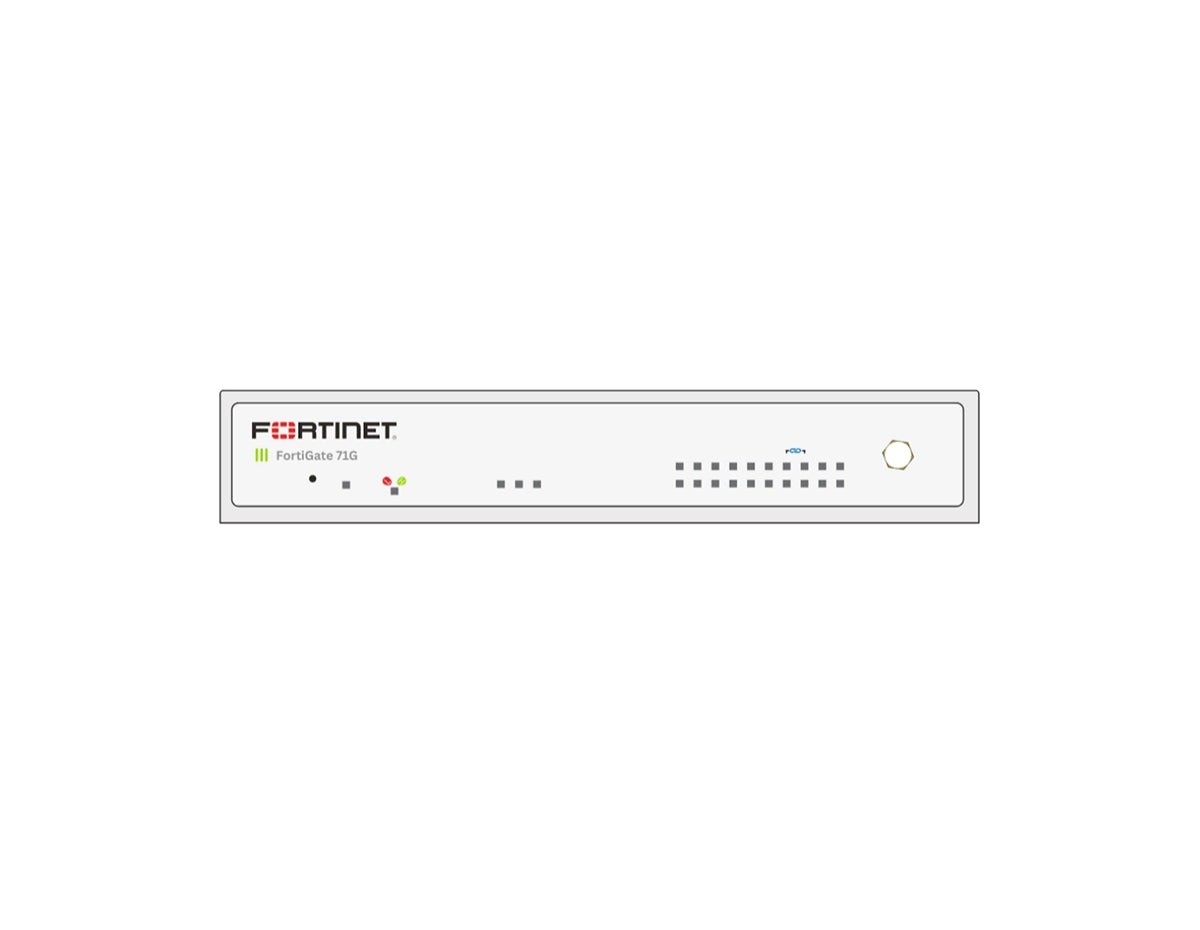

The FortiGate 71G (FG-71G) Series represents the cutting edge of compact network security, integrating firewalling, SD-WAN, and security functions into a single fanless desktop appliance. Built on the patented SD-WAN-based ASIC, the FortiGate 71G delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption for secure connections at branch locations.
This model is equipped with 64GB SSD storage, providing local capacity for logging and operational visibility at the edge.
This bundle, FG-71G-BDL-950-60, includes the FortiGate 71G firewall plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 5-year contract term, enabling enhanced security services and support for production deployments.
Operating on FortiOS, Fortinet’s converged networking and security operating system, the FortiGate 71G simplifies operations through centralized management and automated workflows. As part of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
Next-Generation Security and Performance with Integrated Storage
Key Benefits
- Secure SD-WAN ASIC SP5 acceleration: Built on the patented SD-WAN-based ASIC for unmatched performance and reduced power consumption.
- Integrated SSD storage: 64GB SSD storage for local logging and operational visibility.
- UTP Protection Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (5-year contract) for enhanced security services and support.
- Converged networking and security: Integrates firewalling, SD-WAN, and security in one appliance for distributed enterprise sites.
- Silent operation: Fanless desktop design for quiet, reliable deployment.
- Energy efficiency: Optimized power consumption of 13.4 W average / 14.1 W maximum.
- Unified operations: FortiOS enables centralized management, automation, and unified protection across the attack surface.
Ideal Use Cases
- Distributed Enterprise Sites: Build secure networks at branch locations with integrated SD-WAN and robust threat protection.
- Secure SD-WAN: Deliver best-of-breed WAN edge with integrated SD-WAN, security, and unified management through FortiOS.
- Secure Branch: Extend protection to WAN, LAN, and downstream devices with centralized visibility and simplified management.
- Perimeter Protection: Inspect and control traffic based on defined security policies with integrated security services.
Technical Specifications Summary
- IPS / NGFW / Threat Protection: 2.5 Gbps IPS throughput, 1.5 Gbps NGFW throughput, 1.3 Gbps threat protection throughput
- Firewall throughput (1518 / 512 / 64 byte UDP): 10 / 10 / 10 Gbps
- Latency and packet rate: 2.46 μs firewall latency (64 byte UDP), 15 Mpps firewall throughput
- Session capacity: 1.4 million concurrent TCP sessions, 100,000 new sessions/second, 5,000 firewall policies
- VPN capacity: 7.1 Gbps IPsec VPN (512 byte), 200 gateway-to-gateway tunnels, 500 client-to-gateway tunnels
- SSL inspection: 1.4 Gbps throughput, 715 CPS, 140,000 concurrent sessions (IPS, avg. HTTPS)
- Application control and CAPWAP: 3.6 Gbps application control (HTTP 64K), 6.8 Gbps CAPWAP throughput (HTTP 64K)

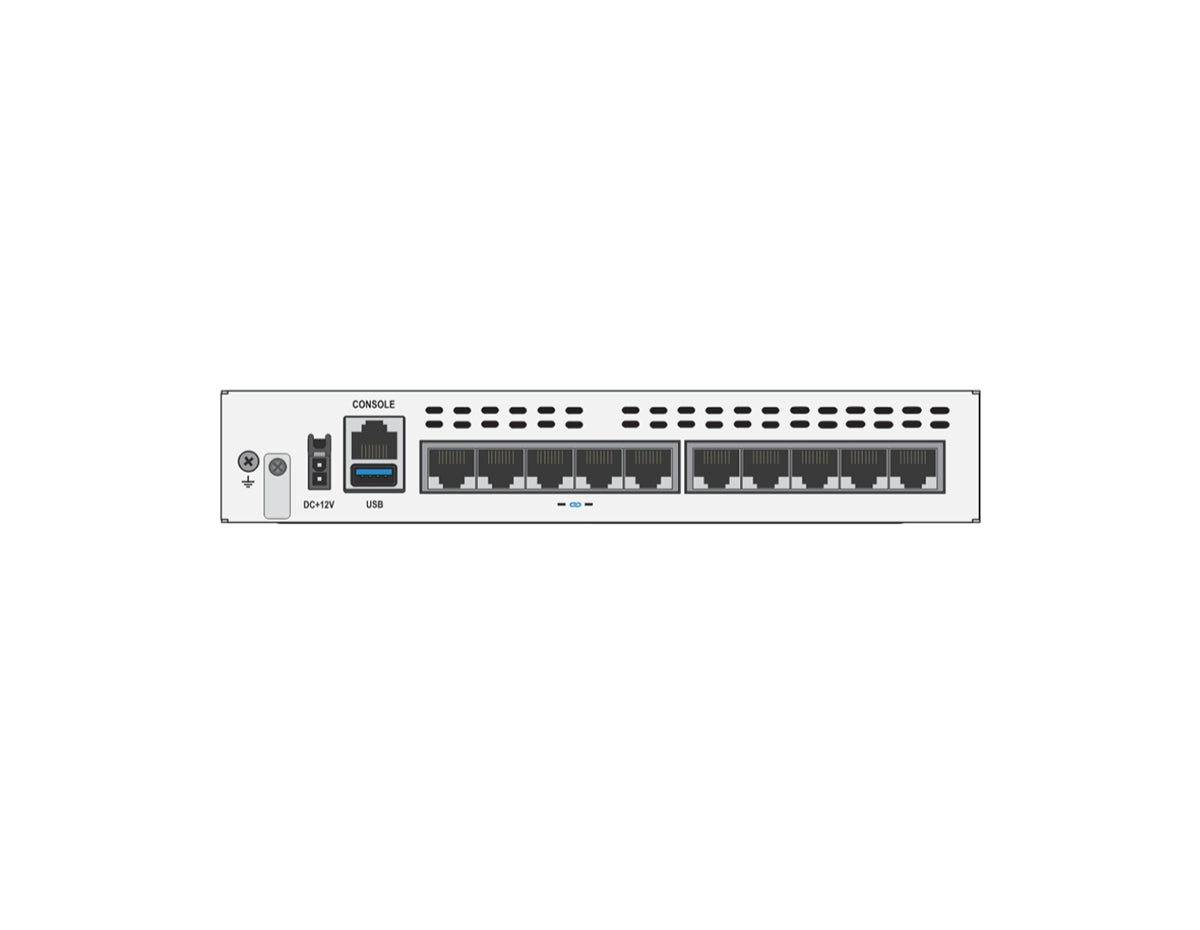

- Interfaces: 2x GE RJ45 WAN, 2x GE RJ45 FortiLink (default), 6x GE RJ45, 1x USB, 1x RJ45 console
- Storage and security hardware: 64GB SSD, Trusted Platform Module (TPM), signed firmware hardware switch, Bluetooth Low Energy (BLE)
- Power, environment, and compliance: 12V DC 3A, 13.4 W average / 14.1 W maximum, fanless, 0°C to 40°C, FCC/ICES/CE/RCM/VCCI/BSMI/UL/cUL/CB, USGv6/IPv6
Upgrade Your Network Security
Secure your business infrastructure today with the FortiGate 71G bundle (FG-71G-BDL-950-60) for unified threat protection and FortiCare Premium support.
