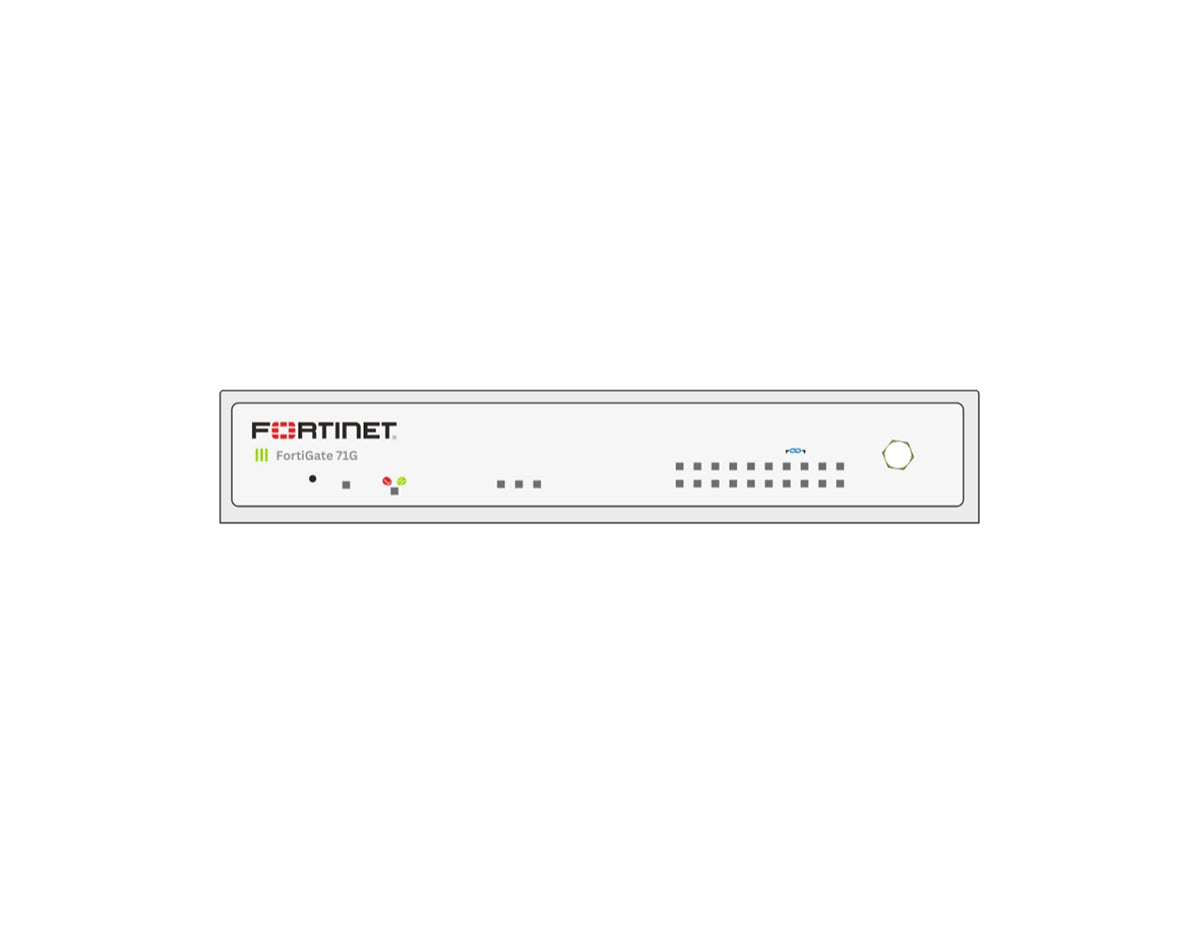

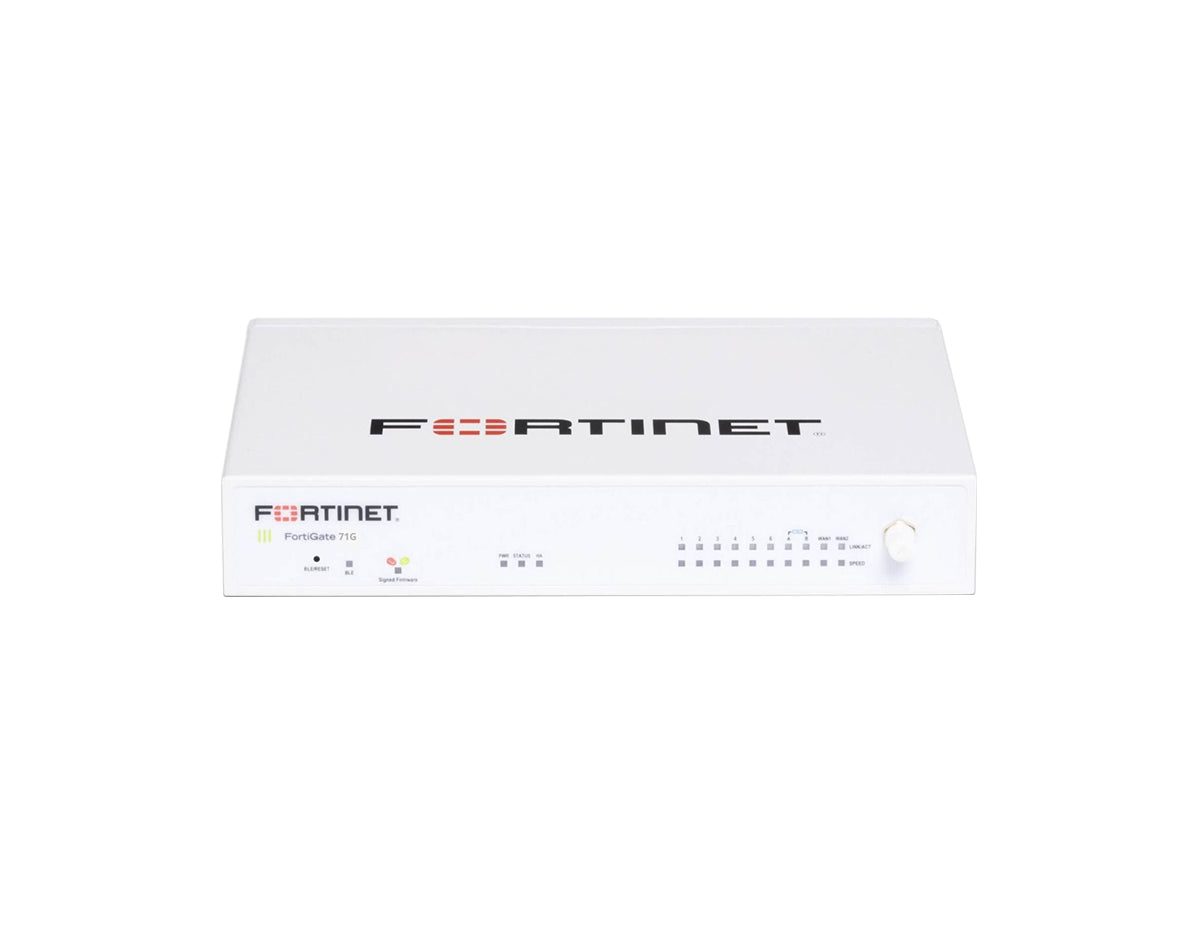

The FortiGate 71G (FG-71G) is part of the FortiGate FortiWiFi 70G series, integrating firewalling, SD-WAN, and security functions into a single fanless desktop appliance. Built on the Fortinet SP5 SD-WAN ASIC, the FG-71G delivers high performance and low latency for business-critical applications. This model includes 64GB of internal SSD storage.
This bundle, FG-71G-BDL-809-36, includes the FortiGate 71G appliance plus FortiCare Premium and FortiGuard Enterprise Protection for a 3-year contract term, enabling security services and support for production deployments.
Operating on FortiOS, the industry's first converged networking and security operating system, the FortiGate 71G simplifies operations through centralized management and automated workflows. It delivers enterprise-grade protection with FortiGuard AI-Powered Security Services, including network and file security and web/DNS security capabilities. Whether deployed in a secure branch, retail location, or as part of a hybrid mesh firewall architecture, the FG-71G provides scalable, energy-efficient, and unified protection against modern cyber threats.
Next-Generation Security and Performance with Integrated Storage
Key Benefits
- Unmatched ASIC Performance: Powered by the patented SP5 ASIC to accelerate networking and security functions with up to 2.5 Gbps IPS throughput.
- Integrated SSD Storage: Includes 64GB of internal SSD storage.
- Enterprise Protection Bundle: Includes FortiCare Premium and FortiGuard Enterprise Protection (3-year contract) for services and support.
- Converged Networking: Integrates Firewall and SD-WAN in a single appliance for branch and edge deployments.
- Silent Operation: Fanless desktop design ensures quiet reliability, making it ideal for noise-sensitive office environments.
- Energy Efficient: Average power consumption of 13.4 W supports efficient branch deployments.
- Unified Management: Simplifies deployment and operations with FortiOS and centralized management solutions.
Ideal Use Cases
- Distributed Enterprise Sites: Connect and secure branch locations with integrated SD-WAN and robust threat protection.
- Small to Mid-Sized Businesses (SMB): All-in-one security solution that reduces complexity and footprint.
- Retail & Point of Sale: Secure transaction processing and guest Wi-Fi segmentation at the edge.
- Remote Work Offices: Extend enterprise-grade security to remote and satellite locations.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 2.5 Gbps
- NGFW Throughput: 1.5 Gbps
- Threat Protection Throughput: 1.3 Gbps
- Firewall Throughput (1518 / 512 / 64 byte UDP): 10 / 10 / 10 Gbps
- Firewall Latency (64 byte UDP): 2.46 μs
- Concurrent Sessions (TCP): 1.4 M
- New Sessions/Second (TCP): 100,000
- IPsec VPN Throughput (512 byte): 7.1 Gbps

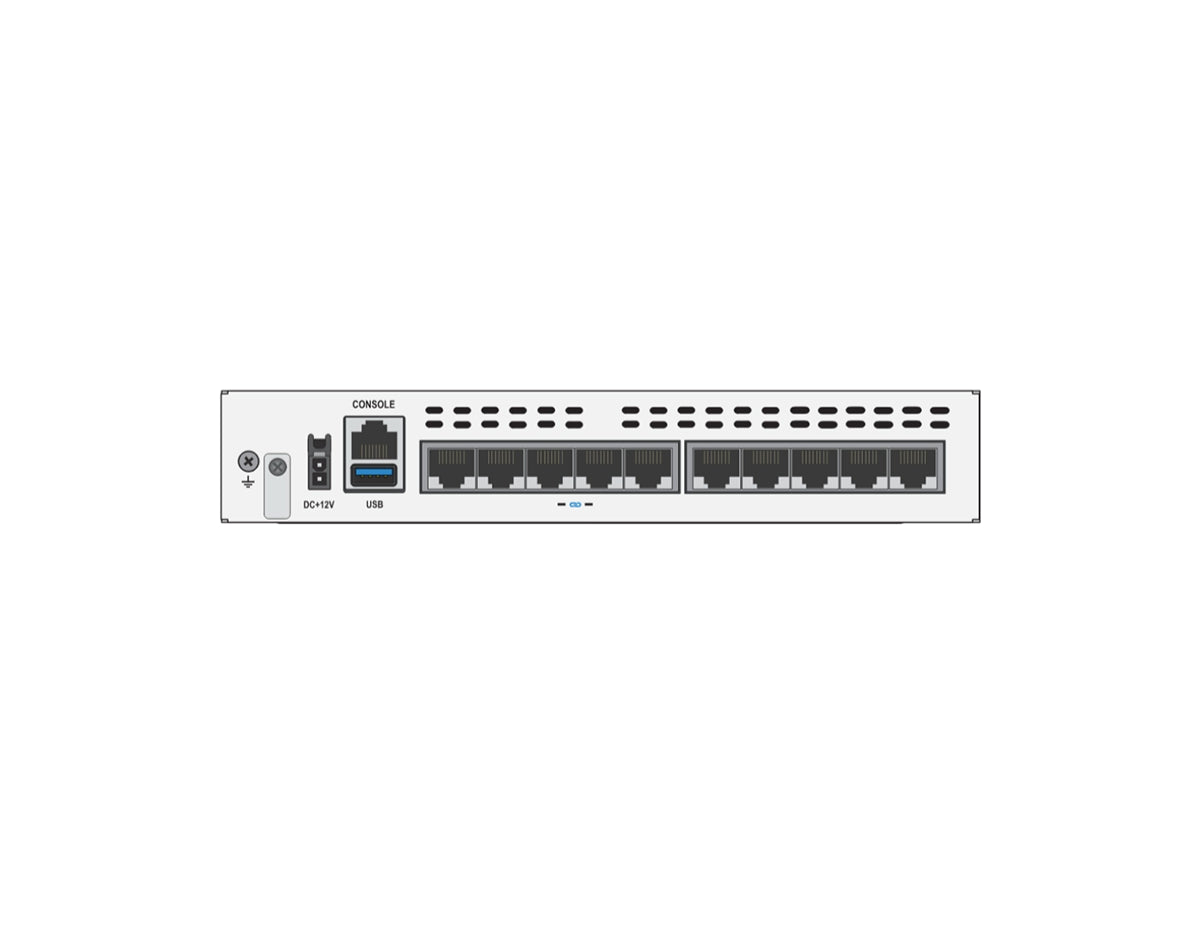

- Interfaces: 10x GE RJ45 (2x WAN, 2x FortiLink (default), 6x GE RJ45), plus 1x USB and 1x Console (RJ45)
- Power Consumption (Average / Maximum): 13.4 W / 14.1 W
- Physical: 40.5 x 216 x 160 mm; 0.93 kg (2.05 lbs)
- Operating Environment / Compliance: 0°C to 40°C; 10% to 90% non-condensing; up to 10,000 ft (3048 m); fanless; FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6
Upgrade Your Network Security
Secure your business infrastructure today with the FortiGate 71G bundle (FG-71G-BDL-809-36) for enterprise-grade protection and support.
