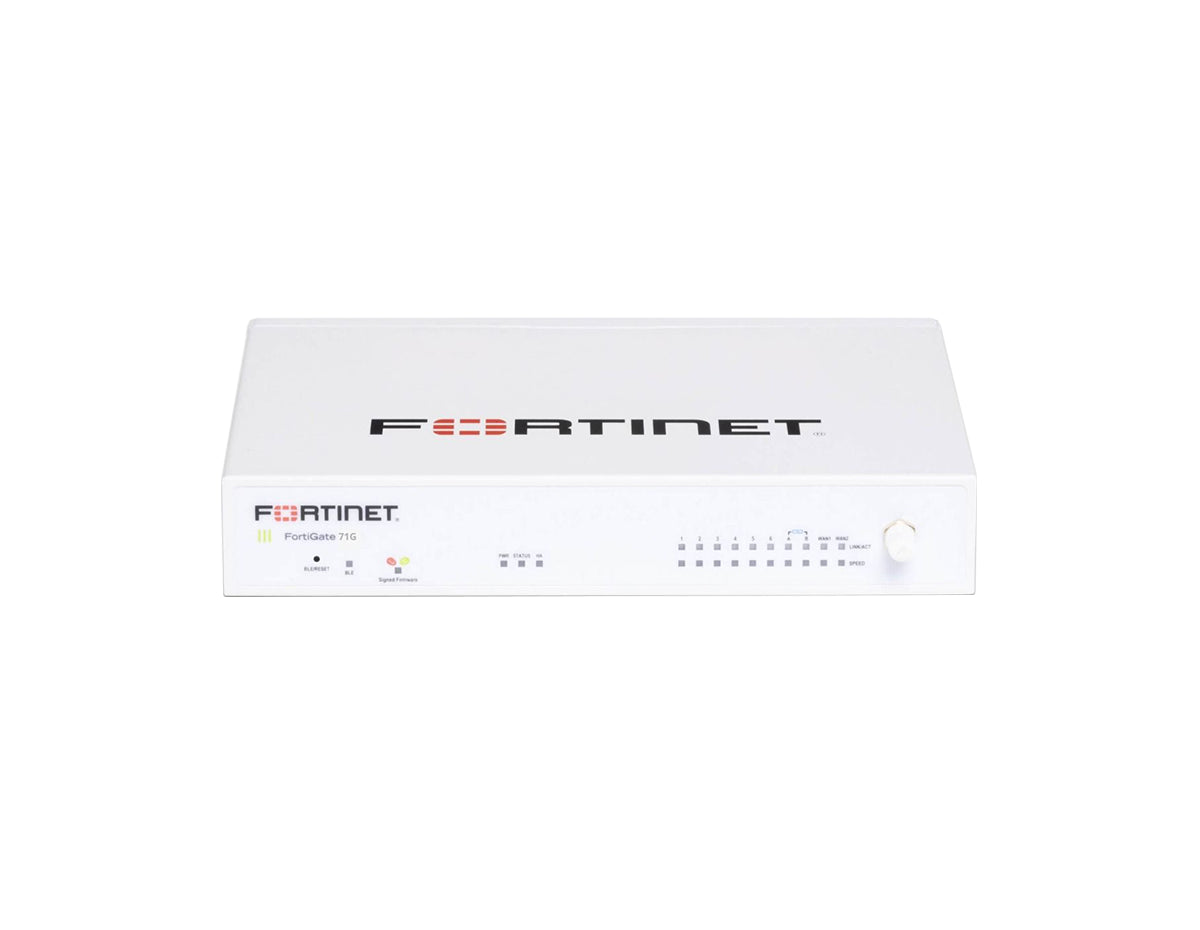

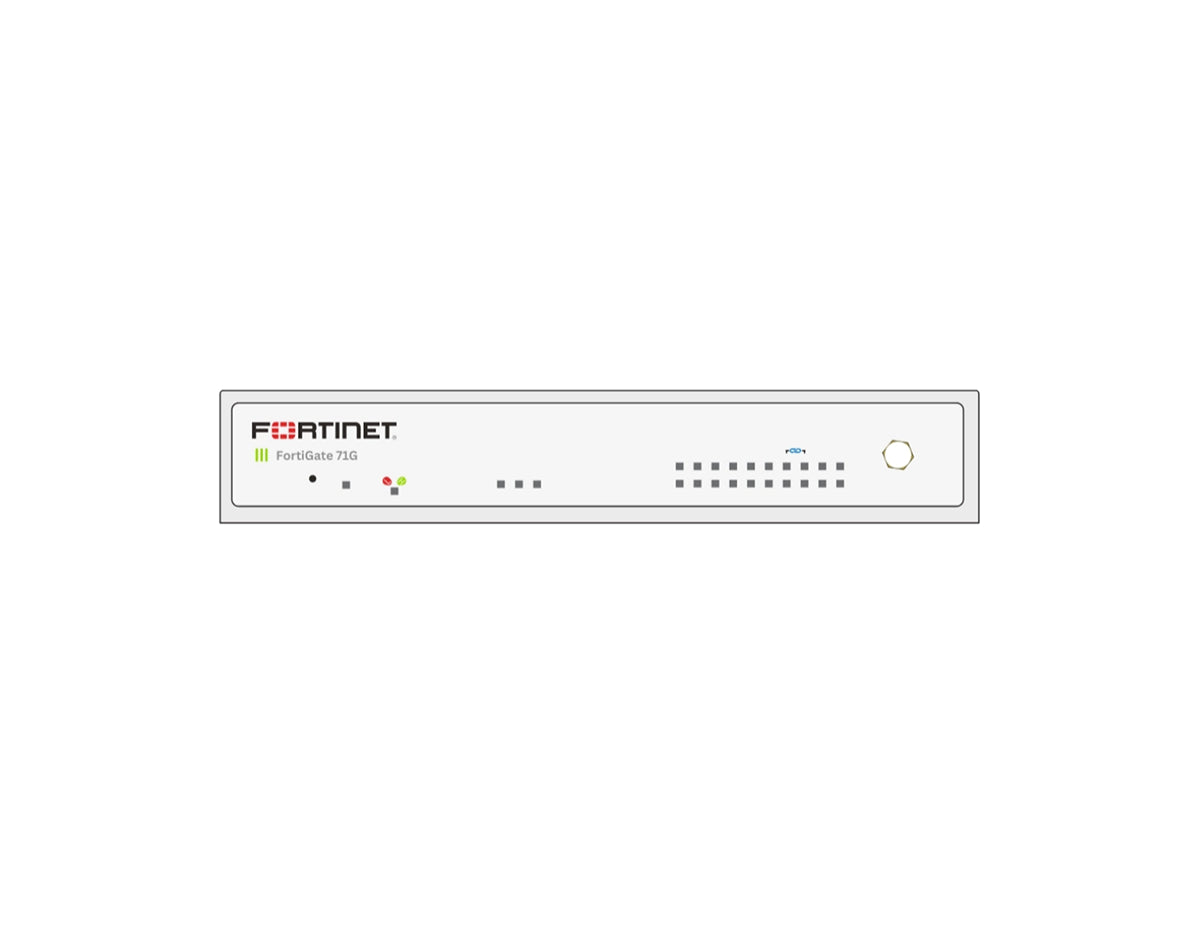

The FortiGate 71G (FG-71G) Series represents the cutting edge of compact network security, integrating firewalling, SD-WAN, and security functions into a single fanless desktop appliance. Built on the Fortinet SP5 SD-WAN ASIC, the FG-71G delivers high performance and low latency for business-critical applications. This model is specifically equipped with 64GB of SSD storage, providing local capacity for logging and operational visibility at the edge.
Operating on FortiOS, the industry's first converged networking and security operating system, the FortiGate 71G simplifies operations through centralized management and automated workflows. It offers enterprise-grade protection with FortiGuard AI-Powered Security Services, including advanced malware protection, IPS, and web/DNS security capabilities. Whether deployed in a secure branch, retail location, or as part of a hybrid mesh firewall architecture, the FG-71G provides scalable, energy-efficient, and unified protection against modern cyber threats.
Next-Generation Security and Performance with Integrated Storage
Key Benefits
- Unmatched ASIC Performance: Powered by the patented SP5 ASIC to accelerate networking and security functions with up to 2.5 Gbps IPS throughput.
- Integrated SSD Storage: Includes 64GB of internal SSD storage for enhanced local logging and data retention.
- Converged Networking: Seamlessly integrates SD-WAN, NGFW, and advanced routing in a single, cost-effective appliance.
- Silent Operation: Fanless desktop design ensures quiet reliability, making it ideal for noise-sensitive office environments.
- Energy Efficient: Optimized power consumption (Average 13.4 W) reduces operational costs and environmental footprint.
- Unified Management: Simplifies deployment and operations with the intuitive FortiOS interface and centralized management tools.
Ideal Use Cases
- Distributed Enterprise Sites: Connect and secure branch locations with integrated SD-WAN and robust threat protection.
- Small to Mid-Sized Businesses (SMB): All-in-one security solution that reduces complexity and device footprint.
- Retail & Point of Sale: Secure transaction processing and guest Wi-Fi management in a compact form factor.
- Remote Work Offices: Enterprise-grade security extensions for home or remote office setups.
Technical Specifications Summary
- Firewall Throughput (1518 / 512 / 64 byte UDP): 10 / 10 / 10 Gbps
- IPS Throughput (Enterprise Traffic Mix): 2.5 Gbps
- NGFW Throughput (Enterprise Traffic Mix): 1.5 Gbps
- Threat Protection Throughput (Enterprise Traffic Mix): 1.3 Gbps
- IPsec VPN Throughput (512 byte): 7.1 Gbps
- Firewall Latency (64 byte UDP): 2.46 μs
- Sessions: 1.4 Million concurrent (TCP), 100,000 new sessions/second (TCP)

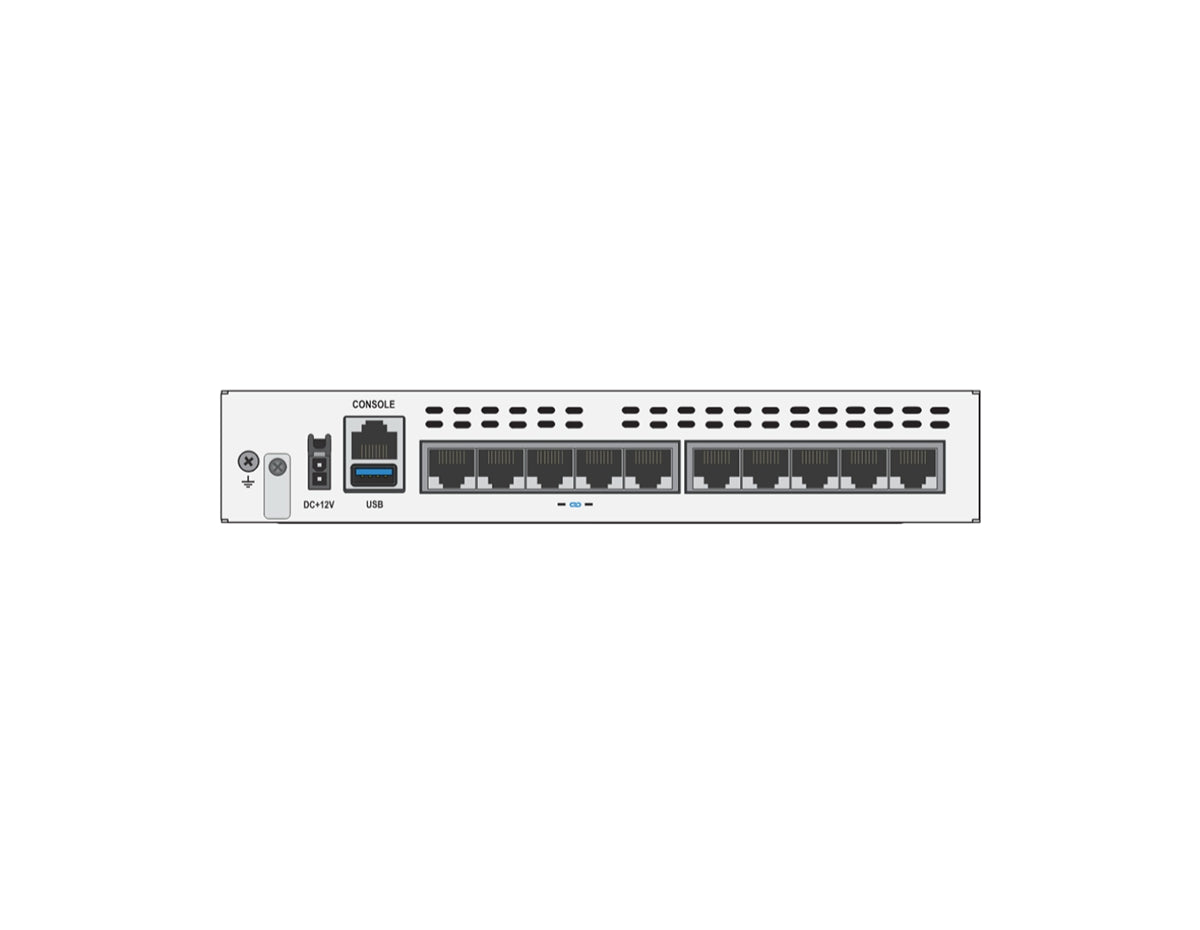

- Interfaces: 2x GE RJ45 WAN, 2x GE RJ45 FortiLink (default), 6x GE RJ45 Ethernet, 1x USB, 1x Console (RJ45)
- Internal Storage: 64GB SSD
- Power and Physical: 13.4 W average / 14.1 W maximum, 12V DC 3A input, 40.5 x 216 x 160 mm, 0.93 kg
