The FortiGate 71F-BDL-809-12 bundle runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 71F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design further accelerates the convergence of networking and security functions in the 71F family to optimize secure connections and deliver a robust user experience at branch locations. Additionally, the FG-71F includes 128 GB SSD onboard storage.
Converged Next-Generation Firewall and SD-WAN with Integrated Storage
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- Integrated Storage: Includes onboard SSD storage to support local log storage and data retention at the branch.
- Enterprise-Grade Protection: Includes 1 Year FortiCare Premium and FortiGuard Enterprise Protection alongside FortiGuard AI-Powered Security Services to protect against malicious traffic, file-based threats, and web-based attacks.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor with 0 dBA noise level, suitable for noise-sensitive environments like retail or small offices.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity with local logs.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary
- Security performance: IPS 1.4 Gbps; NGFW 1 Gbps; Threat Protection 800 Mbps
- Firewall performance: 10/10/6 Gbps (1518/512/64 byte UDP); 2.54 µs latency (64 byte UDP); 9 Mpps firewall throughput
- Capacity: 1.5 M concurrent sessions (TCP); 35,000 new sessions/second (TCP); 5,000 firewall policies
- IPsec VPN: 6.1 Gbps (512 byte); 200 gateway-to-gateway tunnels; 500 client-to-gateway tunnels
- SSL VPN & inspection: 405 Mbps SSL-VPN; 200 concurrent SSL-VPN users; 700 Mbps SSL inspection throughput; 500 SSL inspection CPS; 100,000 concurrent SSL inspection sessions

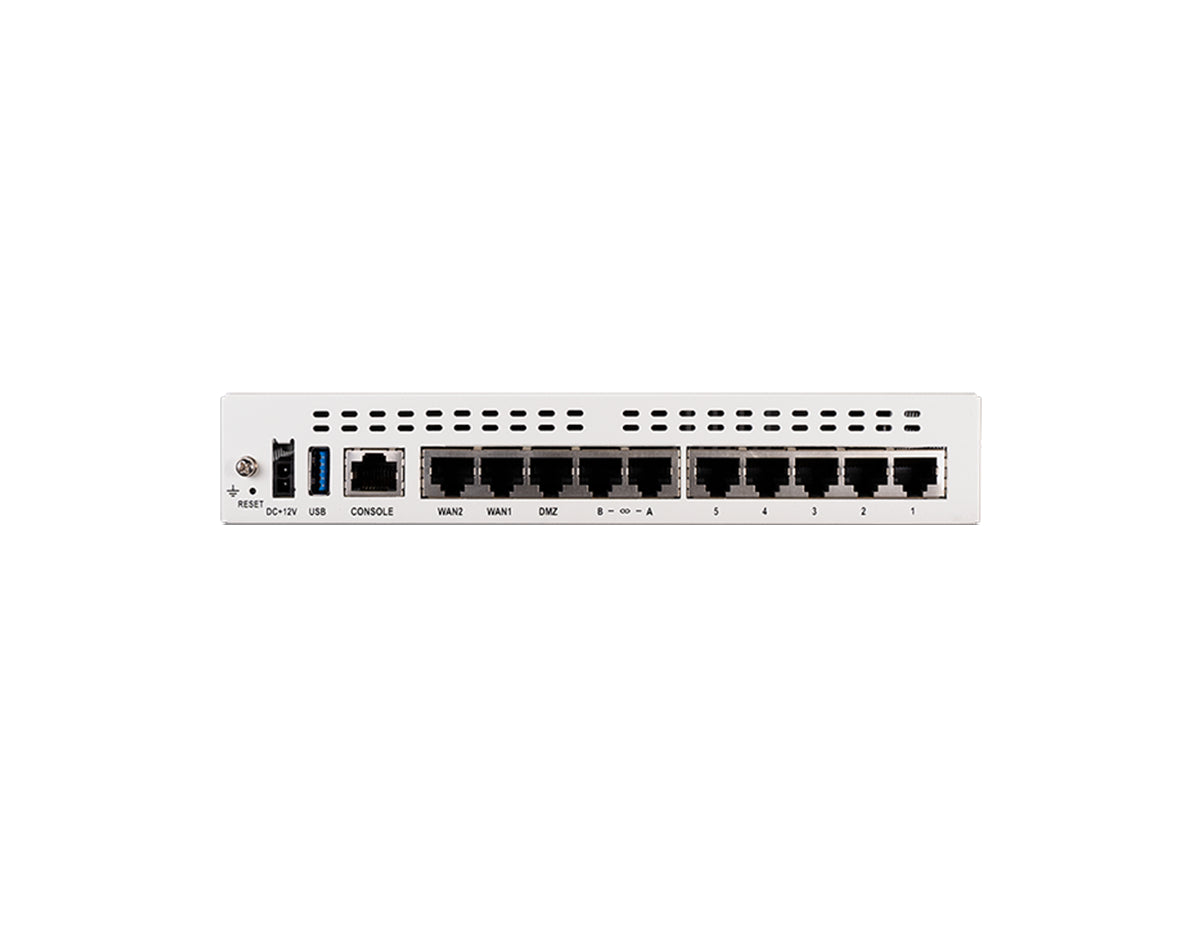

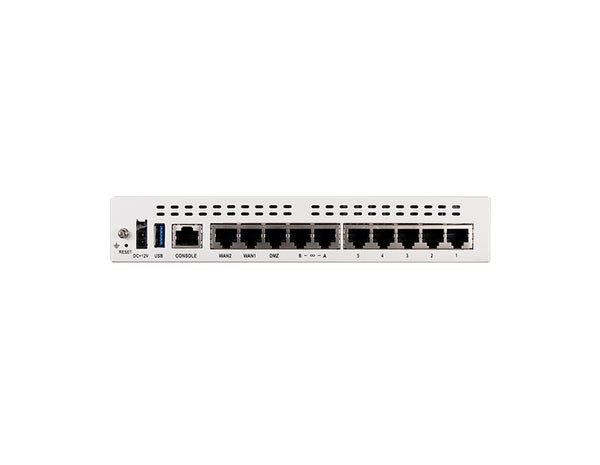

- Interfaces: 10 x GE RJ45 (2 x WAN, 1 x DMZ, 2 x FortiLink, 5 x internal) plus 1 x USB and 1 x RJ45 console
- Storage & form factor: 1 x 128 GB SSD onboard storage; desktop; fanless 0 dBA
- Power & thermals: 12VDC, 3A; 17.2 W average / 18.7 W maximum; 63.8 BTU/hr heat dissipation
- Physical & environment: 38.5 x 216 x 160 mm; 2.23 lbs (1.01 kg); 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing
Upgrade Your Network Security
Choose the FortiGate 71F-BDL-809-12 bundle for a scalable, high-performance security solution that unifies networking and protection.
