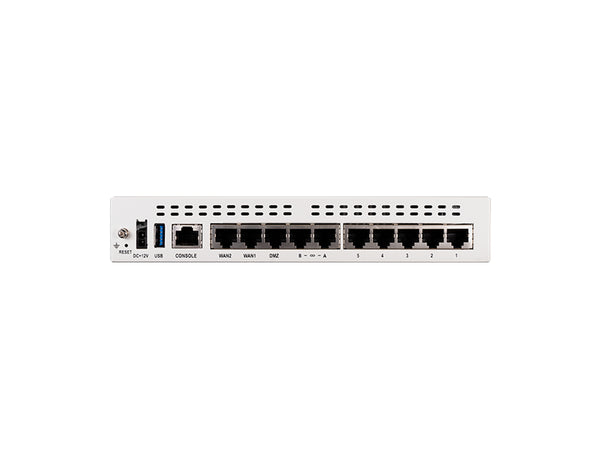

Fortinet FortiGate 71F Next-Generation Firewall with 128GB SSD (FG-71F)

The FortiGate 70F series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design further accelerates the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations. Additionally, the FG-71F includes 128 GB SSD onboard storage.

Converged Next-Generation Firewall and SD-WAN with Integrated Storage

Key Benefits

• Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
• Integrated Storage: Includes onboard SSD storage to support local log storage and data retention at the branch.
• Enterprise-Grade Protection: Natively integrated FortiGuard AI-Powered Security Services protect against malicious traffic, file-based threats, and web-based attacks.
• Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
• Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
• Compact & Fanless: Small, lightweight desktop form factor with 0 dBA noise level, suitable for noise-sensitive environments like retail or small offices.

Ideal Use Cases

• Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity with local logs.
• Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
• Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
• Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.

Technical Specifications Summary

• IPS Throughput: 1.4 Gbps
• NGFW Throughput: 1 Gbps
• Threat Protection Throughput: 800 Mbps
• Firewall Throughput: 10/10/6 Gbps (1518/512/64 byte UDP packets)
• Firewall Latency: 2.54 µs (64 byte UDP packets)
• Concurrent Sessions: 1.5 M (TCP)
• New Sessions/Second: 35,000 (TCP)
• IPsec VPN Throughput: 6.1 Gbps (512 byte)
• SSL-VPN Throughput: 405 Mbps
• SSL Inspection Throughput: 700 Mbps (IPS, avg. HTTPS)
• Internal Storage: 1 x 128 GB SSD
• Power Consumption (Average / Max): 17.2 W / 18.7 W

Upgrade Your Network Security

Choose the FortiGate 71F for a scalable, high-performance security solution that unifies networking and protection.
