The FortiGate 70G-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with 10 / 10 / 10 Gbps firewall throughput while providing 60W of total PoE power budget to drive essential devices such as wireless access points and IP phones directly from the firewall.
Designed for flexibility and reduced footprint, the FG-70G-POE features a compact desktop form factor ideal for space-constrained environments. It includes 4 dedicated PoE/+ ports alongside GE RJ45 WAN ports and FortiLink ports, allowing for diverse connectivity options and seamless deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Provides 60W total PoE budget across 4 ports to power IoT devices, cameras, and access points, eliminating the need for extra injectors.
- SP5 ASIC Acceleration: Delivers industry-leading performance with 10 / 10 / 10 Gbps firewall throughput and 2.5 Gbps IPS inspection.
- UTP Security Bundle: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) (1-year contract) for enhanced security coverage.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Low-Noise Desktop Deployment: Fanless design supports quiet placement in open offices and shared workspaces.
Ideal Use Cases
- SD-Branch Deployment: Powers and secures branch infrastructure like Wi-Fi APs and VoIP phones with a single consolidated device.
- Retail Point of Sale: Secures transaction data while powering surveillance cameras or IP-connected retail devices.
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Remote Work: Delivers secure, high-performance VPN access for remote employees with simplified hardware requirements.
Technical Specifications Summary
- Firewall Throughput: 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets)
- Firewall Throughput (Packets Per Second): 15 Mpps
- Firewall Latency: 2.46 µs (64 byte UDP packets)
- IPS Throughput: 2.5 Gbps
- NGFW Throughput: 1.5 Gbps
- Threat Protection Throughput: 1.3 Gbps
- IPsec VPN Throughput: 7.1 Gbps (512 byte)
- SSL Inspection: 1.4 Gbps (IPS, avg. HTTPS); 715 CPS; 140,000 concurrent sessions

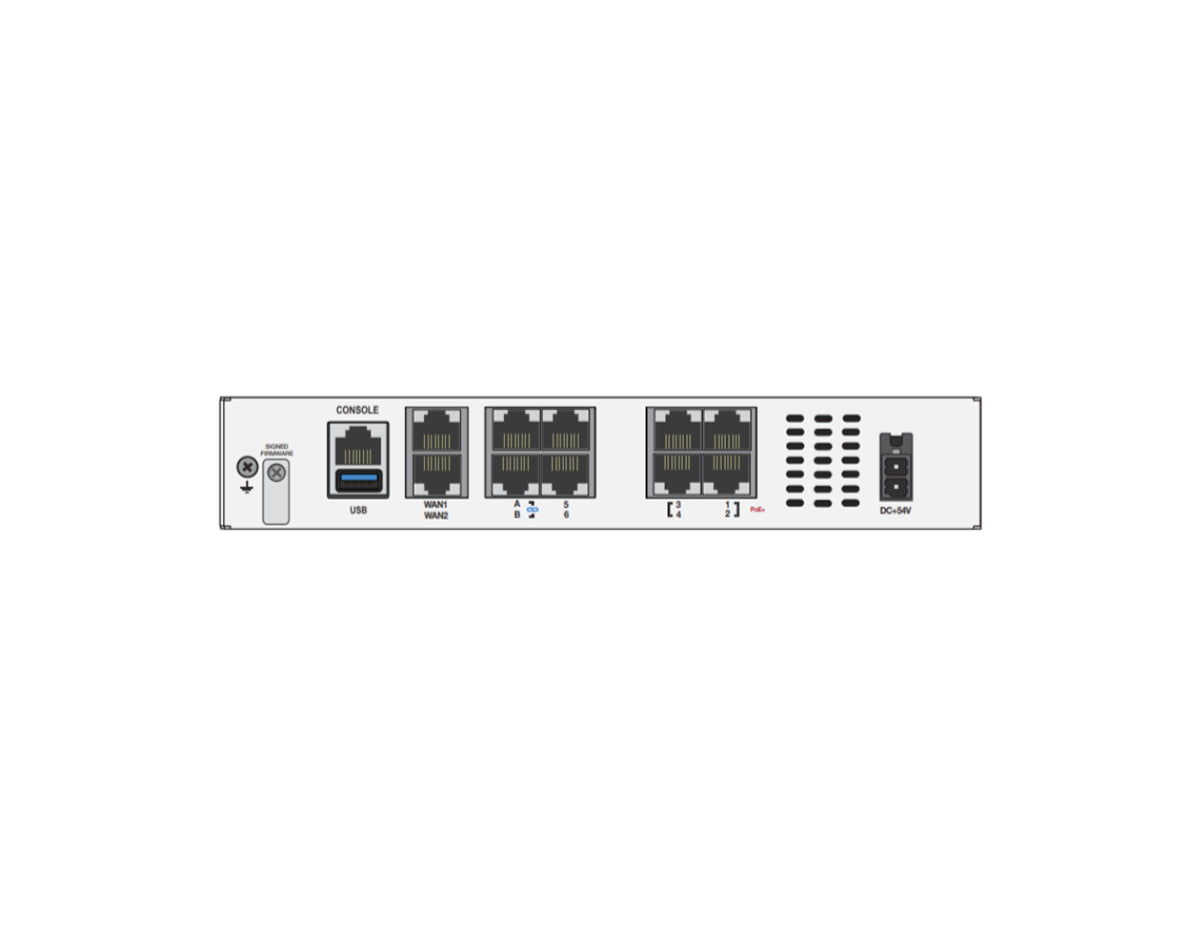

- Interfaces: 10x GE RJ45 (2x GE RJ45 WAN, 4x GE RJ45 FortiLink, 4x GE RJ45 PoE/+)
- PoE Budget: 60 W total (max 30 W per PoE/+ port, 802.3at)
- Power / Heat / Noise: 70.3 W / 72.5 W (Average / Maximum); 247.23 BTU/hr heat dissipation; Fanless
- Environment: 0°C to 40°C operating; -35°C to 70°C storage; 10% to 90% non-condensing humidity
Upgrade Your Network Security
Deploy the FortiGate 70G-POE-BDL-950-12 bundle today for a streamlined, powerful, and power-capable security solution backed by FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
