The FortiGate 70G-POE series simplifies SD-Branch architecture by integrating advanced security, SD-WAN, and power delivery into a single compact appliance. Built on the Fortinet SP5 ASIC, it delivers high-speed inspection with 10 / 10 / 10 Gbps firewall throughput while providing 60W of total PoE power budget to drive essential devices such as wireless access points and IP phones directly from the firewall.
Designed for flexibility and reduced hardware footprint, the FG-70G-POE features a fanless desktop form factor ideal for noise-sensitive environments. It includes 4 dedicated PoE+ ports alongside GE RJ45 WAN ports and FortiLink ports, allowing for diverse connectivity options and seamless deployment in retail stores, small offices, and distributed enterprise sites.
Converged Security with Integrated PoE+ Power
Key Benefits
- Integrated Power over Ethernet: Provides 60W total PoE budget across 4 ports to power connected PoE devices such as access points and IP phones, reducing the need for separate injectors.
- SP5 ASIC Acceleration: Delivers high performance with 10 / 10 / 10 Gbps firewall throughput and 2.5 Gbps IPS inspection.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Silent Operation: Fanless design ensures quiet performance, ideal for desktop or open-office deployments.
Ideal Use Cases
- SD-Branch Deployment: Powers and secures branch infrastructure like Wi-Fi APs and VoIP phones with a single consolidated device.
- Retail Point of Sale: Secures transaction data while powering PoE-connected devices supporting branch operations.
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Remote Work: Delivers secure, high-performance IPsec VPN access for remote employees with streamlined deployment.
Technical Specifications Summary
- Firewall Throughput: 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP packets)
- IPS Throughput: 2.5 Gbps
- NGFW Throughput: 1.5 Gbps
- Threat Protection Throughput: 1.3 Gbps
- IPsec VPN Throughput: 7.1 Gbps (512 byte)
- Firewall Latency: 2.46 μs (64 byte UDP packets)
- Concurrent Sessions: 1.4 Million (TCP)
- New Sessions/Second: 100,000 (TCP)

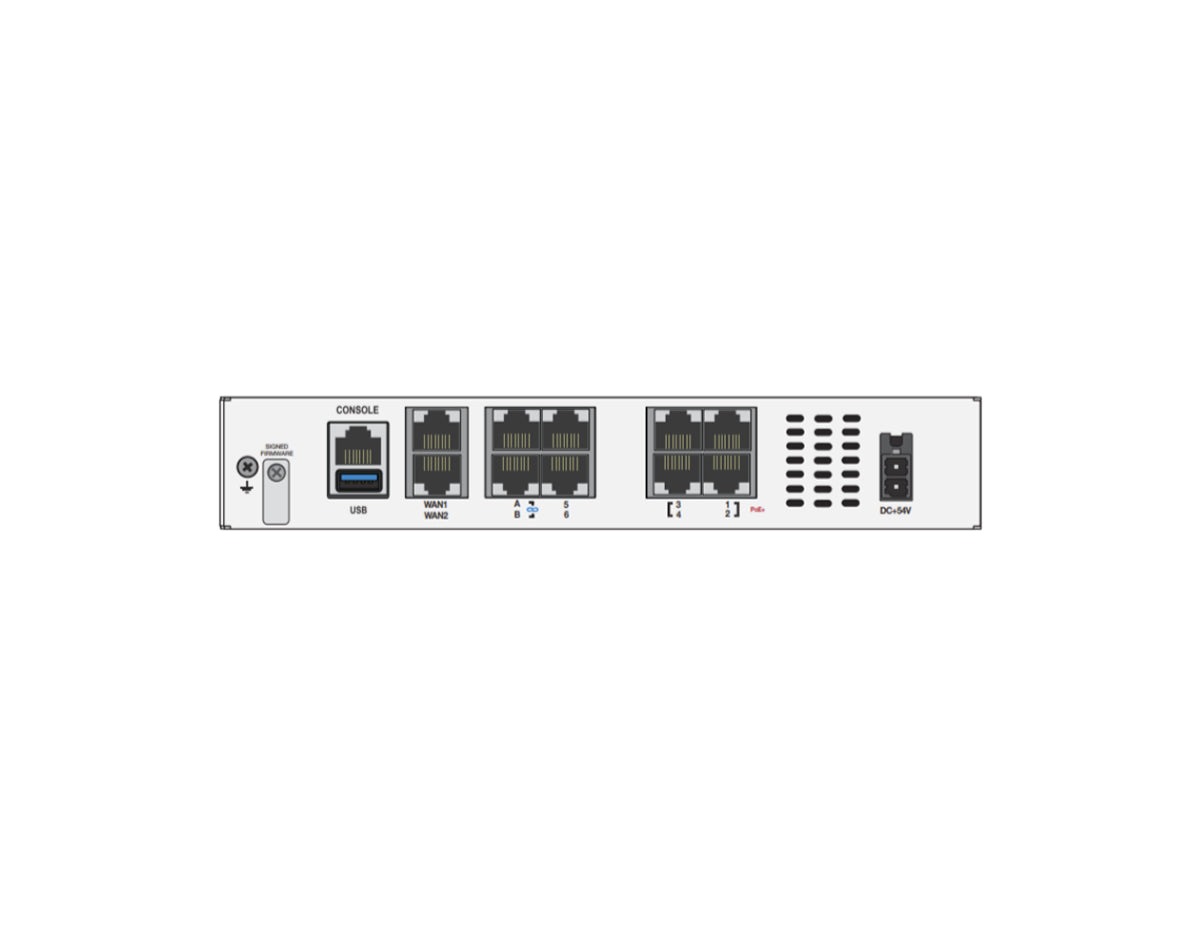

- Interfaces: 10x GE RJ45 (2x WAN, 4x FortiLink, 4x PoE/+)
- Total Available PoE Power Budget: 60 W
- Power Consumption (Average / Maximum): 70.3 W / 72.5 W
- Dimensions (H x W x L): 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm)
Upgrade Your Network Security
Deploy the FortiGate 70G-POE today for streamlined security, integrated PoE power delivery, and SD-WAN in a compact, fanless desktop firewall.
