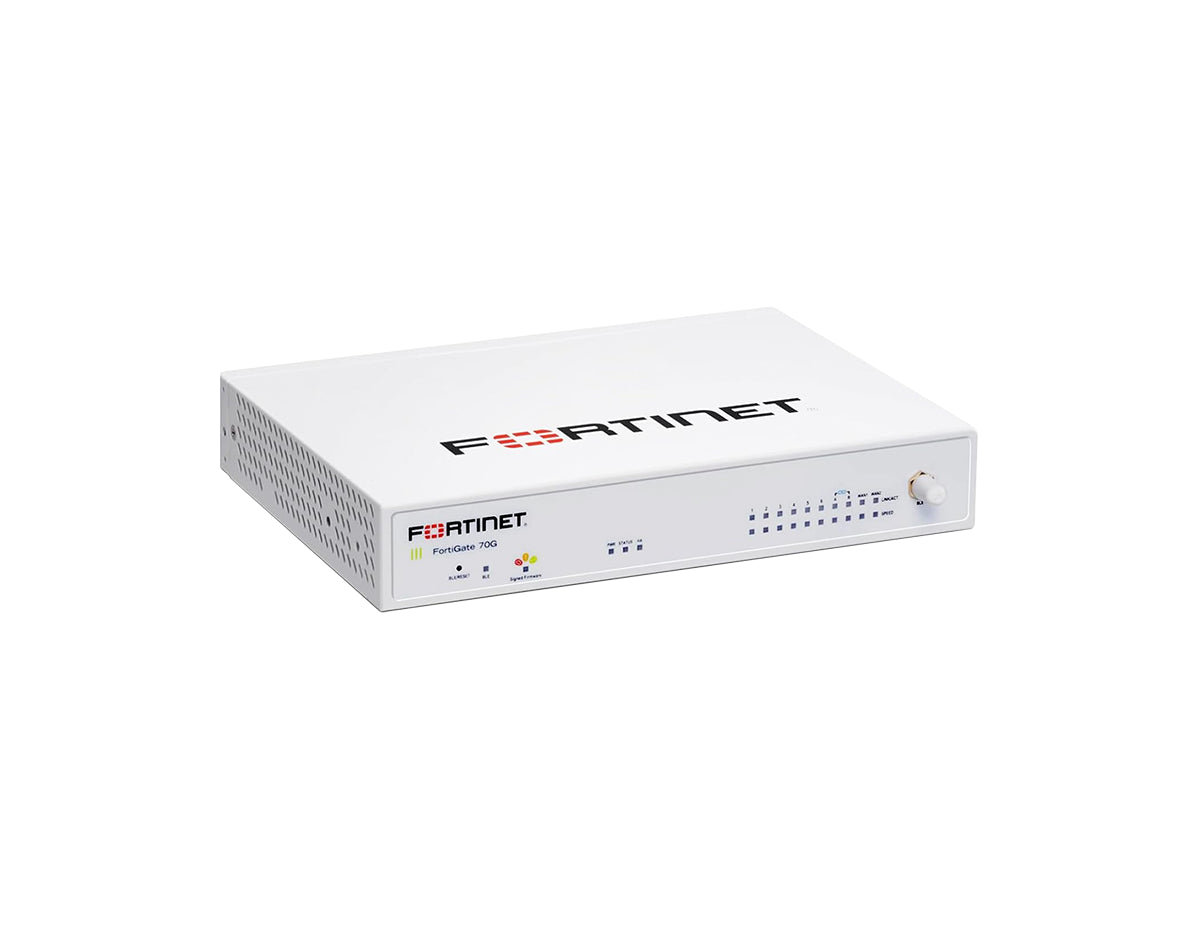

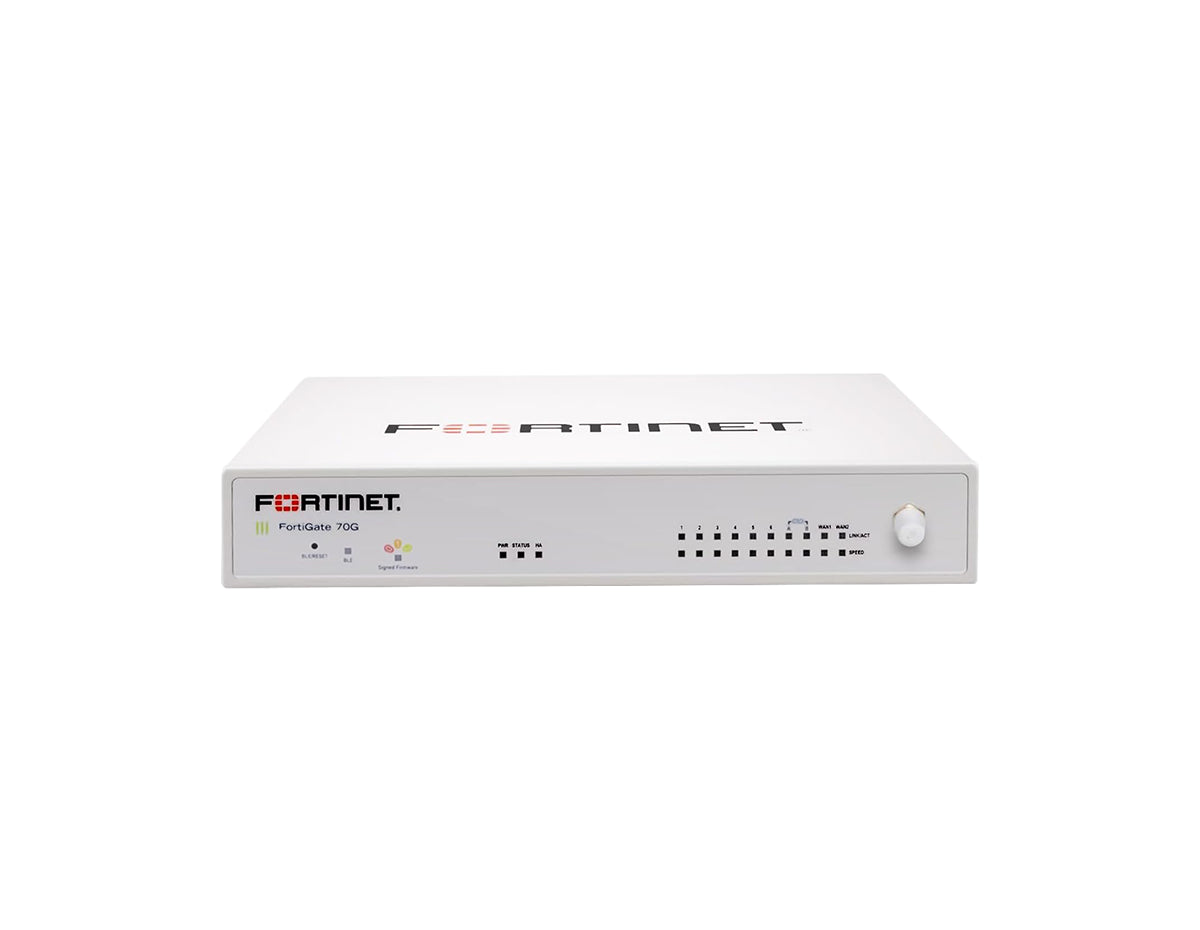

Fortinet FortiGate 70G Next-Generation Firewall (FG-70G)

The FortiGate 70G series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.

The 70G family is built on the patented SD-WAN-based ASIC SP5, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70G family to optimize secure connections and deliver a robust user experience at branch locations.

Converged Next-Generation Firewall and SD-WAN

Key Benefits

• Unparalleled Performance: Enabled by Fortinet's patented SP5 ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
• Enterprise-Grade Protection: Natively integrated FortiGuard AI-Powered Security Services protect against malicious traffic, file-based threats, and web-based attacks.
• Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
• Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
• Compact & Fanless: Small, lightweight desktop form factor with fanless cooling, suitable for deployment in noise-sensitive environments.

Ideal Use Cases

• Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
• Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
• Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
• Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.

Technical Specifications Summary

• Firewall throughput: 10 / 10 / 10 Gbps (1518 / 512 / 64 byte UDP)
• Firewall throughput (packets per second): 15 Mpps
• IPS throughput: 2.5 Gbps
• NGFW throughput: 1.5 Gbps
• Threat protection throughput: 1.3 Gbps
• IPsec VPN throughput (512 byte): 7.1 Gbps
• SSL inspection throughput (IPS, avg. HTTPS): 1.4 Gbps
• Concurrent sessions (TCP): 1.4 M
• New sessions/second (TCP): 100,000
• Interfaces: 2 x GE RJ45 WAN, 6 x GE RJ45, 2 x GE RJ45 FortiLink (default), 1 x RJ45 console, 1 x USB
• Power, physical, environment: 12V DC, 3A; 12.3 W / 12.8 W (avg/max); 40.5 x 216 x 160 mm; 0.91 kg; 0°C to 40°C; fanless
• Compliance & certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate 70G today for a compact, high-performance security solution powered by the SP5 ASIC.
