The FortiGate 70F-BDL-809-36 bundle runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations.
Converged Next-Generation Firewall and SD-WAN
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- Enterprise-Grade Protection: Includes FortiCare Premium and FortiGuard Enterprise Protection (3 Year contract) alongside FortiGuard AI-Powered Security Services for protection against malicious traffic, file-based threats, and web-based attacks.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor suitable for noise-sensitive environments.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary
- Firewall throughput: 10 / 10 / 6 Gbps (1518 / 512 / 64 byte UDP packets).
- Threat Protection throughput: 800 Mbps.
- IPS throughput: 1.4 Gbps.
- NGFW throughput: 1 Gbps.
- Firewall latency: 2.54 µs (64 byte UDP packets).
- Concurrent sessions (TCP): 1.5 M.
- New sessions/second (TCP): 35,000.
- IPsec VPN throughput: 6.1 Gbps (512 byte).
- SSL-VPN throughput: 405 Mbps.

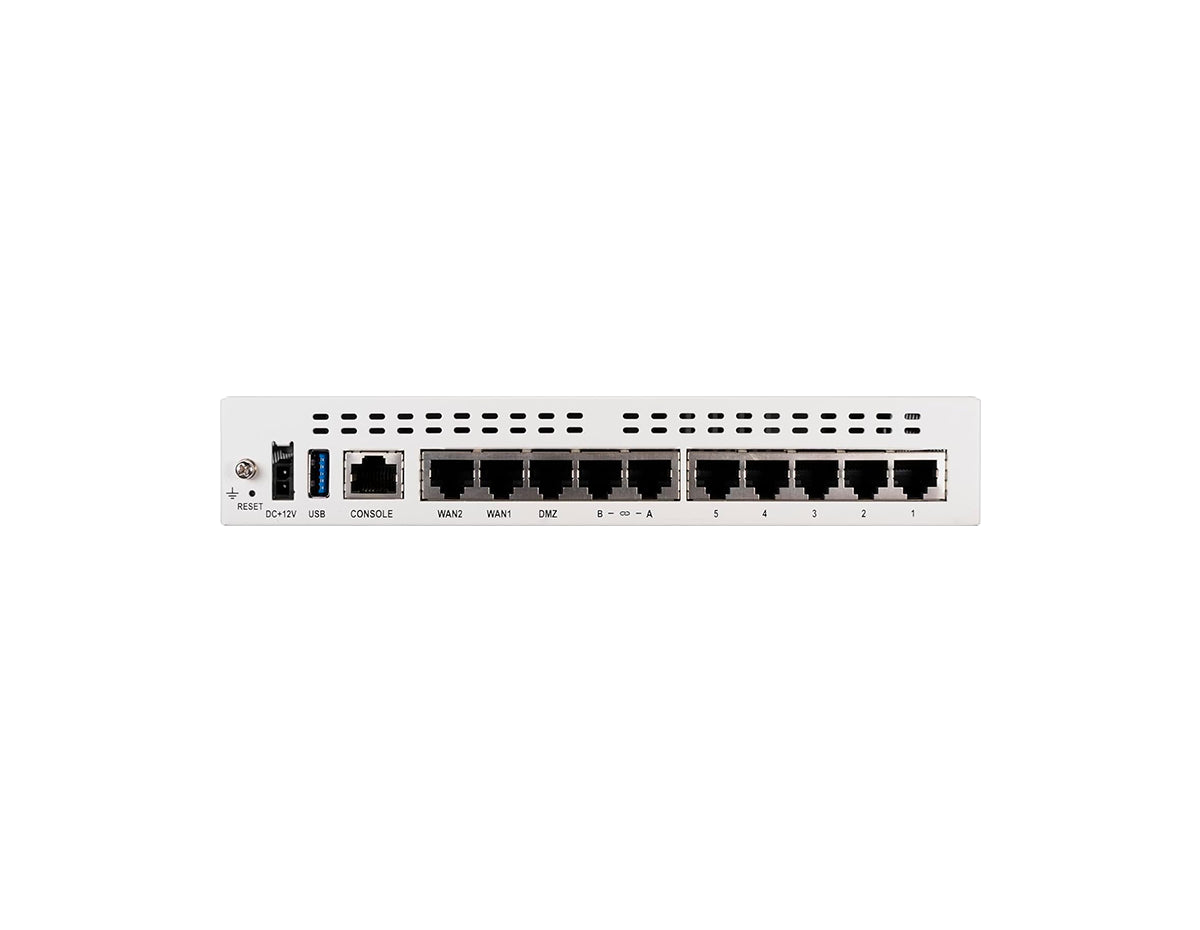

- Interfaces: 10x GE RJ45 (2x WAN, 1x DMZ, 2x FortiLink default, 5x internal), plus 1x USB and 1x RJ45 console.
- Power rating: 12VDC, 3A.
- Dimensions (H x W x L): 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm).
Upgrade Your Network Security
Deploy the FortiGate 70F-BDL-809-36 bundle today for a compact, high-performance security solution that unifies networking and protection with FortiCare Premium and FortiGuard Enterprise Protection.
