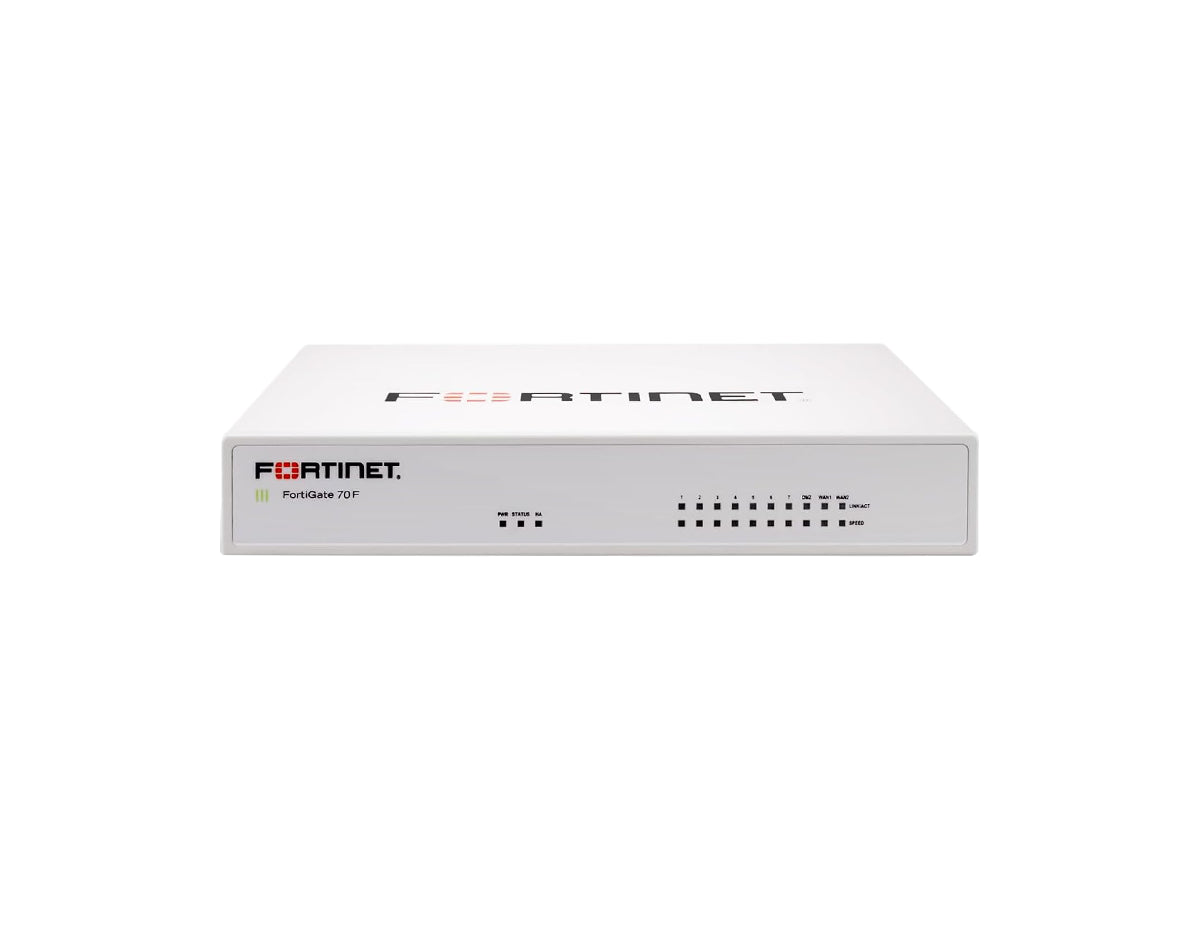

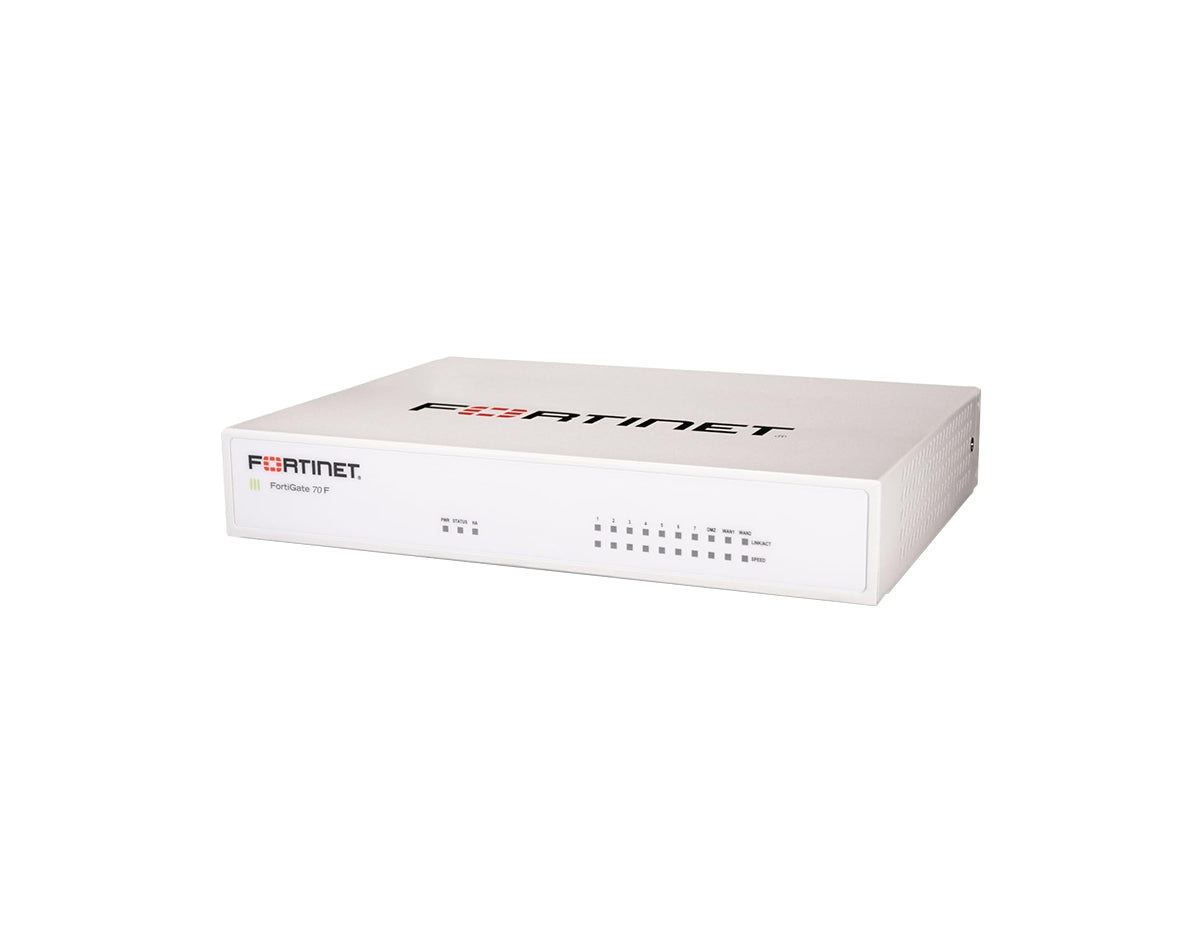

The FortiGate 70F bundle (FG-70F-BDL-809-12) runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate firewall works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations.
Converged Next-Generation Firewall and SD-WAN
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- Enterprise-Grade Protection: Includes FortiCare Premium and FortiGuard Enterprise Protection (1 Year) to support unified protection against malicious traffic, file-based threats, and web-based attacks.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor suitable for noise-sensitive environments.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary

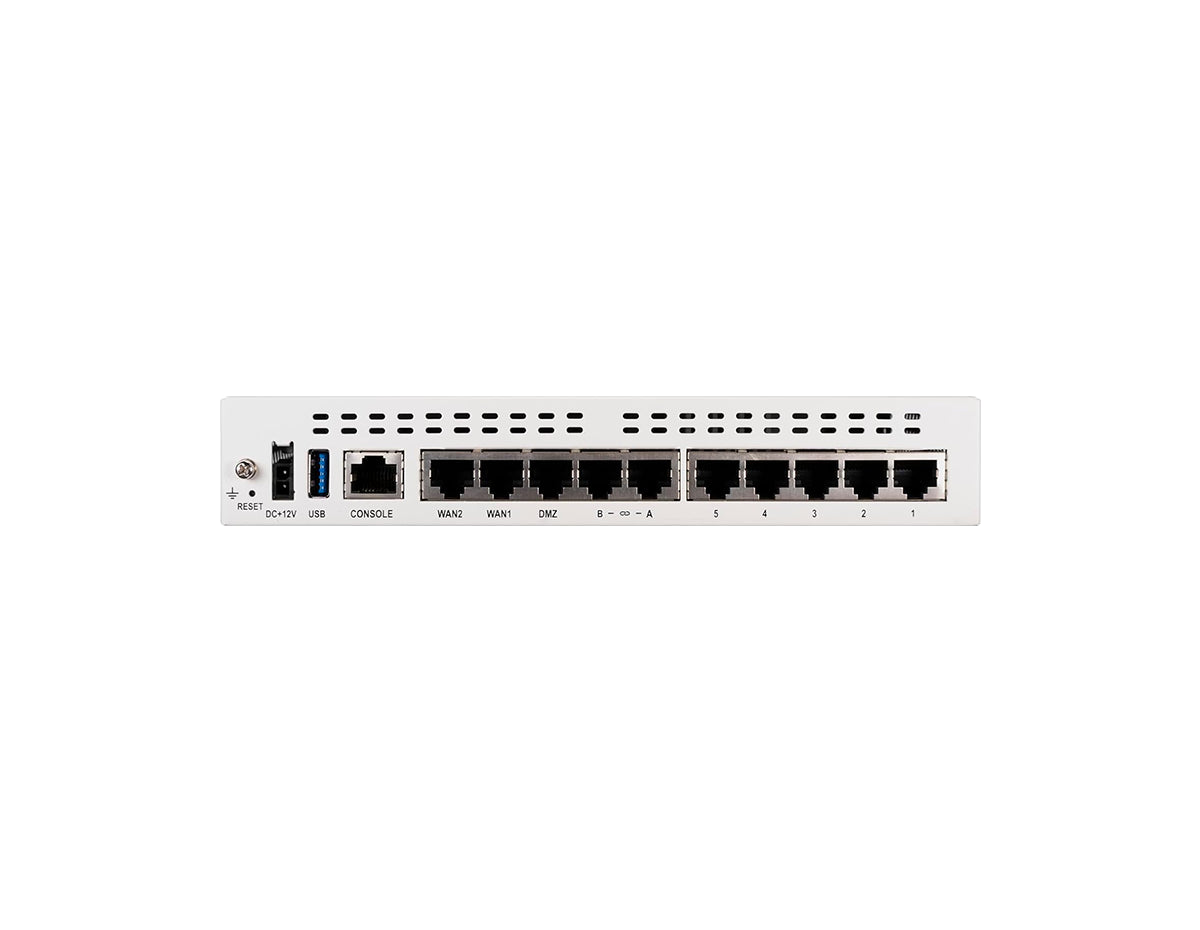

- Interfaces: 10x GE RJ45 (2x WAN, 1x DMZ, 2x FortiLink default, 5x internal), plus 1x USB and 1x RJ45 console.
- Firewall throughput: 10 / 10 / 6 Gbps (1518 / 512 / 64 byte UDP packets).
- IPS throughput: 1.4 Gbps (Enterprise Traffic Mix).
- NGFW throughput: 1 Gbps (Enterprise Traffic Mix).
- Threat protection throughput: 800 Mbps (Enterprise Traffic Mix).
- IPsec VPN throughput: 6.1 Gbps (512 byte).
- SSL-VPN throughput: 405 Mbps.
- Firewall latency: 2.54 μs (64 byte UDP packets).
- Concurrent sessions (TCP): 1.5 M.
- Power: 12VDC, 3A; 10.17 W average / 12.43 W maximum.
- Operating environment: 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm), 2.23 lbs (1.01 kg), 0°C to 40°C operating, -35°C to 70°C storage, 10% to 90% non-condensing, fanless 0 dBA.
- Compliance & certifications: FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB; USGv6/IPv6.
Upgrade Your Network Security
Deploy the FortiGate 70F bundle (FG-70F-BDL-809-12) today for a compact, high-performance security solution that unifies networking and protection with FortiCare Premium and FortiGuard Enterprise Protection.
