The FortiGate 70F series runs on FortiOS, the industry's first converged networking and security operating system, enabling businesses to gain benefits of operational efficiency and unified protection. As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 70F family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 70F family to optimize secure connections and deliver a robust user experience at branch locations.
Converged Next-Generation Firewall and SD-WAN
Key Benefits
- Unparalleled Performance: Enabled by Fortinet's patented ASIC and the FortiOS operating system to deliver industry-leading throughput and faster security inspections.
- Enterprise-Grade Protection: Natively integrated FortiGuard AI-Powered Security Services protect against malicious traffic, file-based threats, and web-based attacks.
- Simplified Operations: Centralized management for networking and security with automated workflows, deep analytics, and self-healing capabilities.
- Integrated SD-WAN: Delivers faster application identification to avoid delays and accelerates overlay performance regardless of location.
- Compact & Fanless: Small, lightweight desktop form factor suitable for noise-sensitive environments.
Ideal Use Cases
- Secure Branch: Extends security to WAN, LAN, and WLAN at branch offices for unified protection and reliable connectivity.
- Perimeter Protection: Inspects and controls incoming and outgoing traffic based on defined security policies to guard against defined and unknown threats.
- Secure SD-WAN: Enables best-of-breed WAN edge with integrated SD-WAN, WAN optimization, and security from a single OS.
- Universal ZTNA: Controls access to applications no matter where the user is and no matter where the application is hosted for universal application of access policies.
Technical Specifications Summary
- Firewall performance: 10 / 10 / 6 Gbps firewall throughput (1518 / 512 / 64 byte UDP), 2.54 μs latency (64 byte UDP).
- Security throughput: IPS 1.4 Gbps, NGFW 1 Gbps, Threat Protection 800 Mbps (Enterprise Traffic Mix).

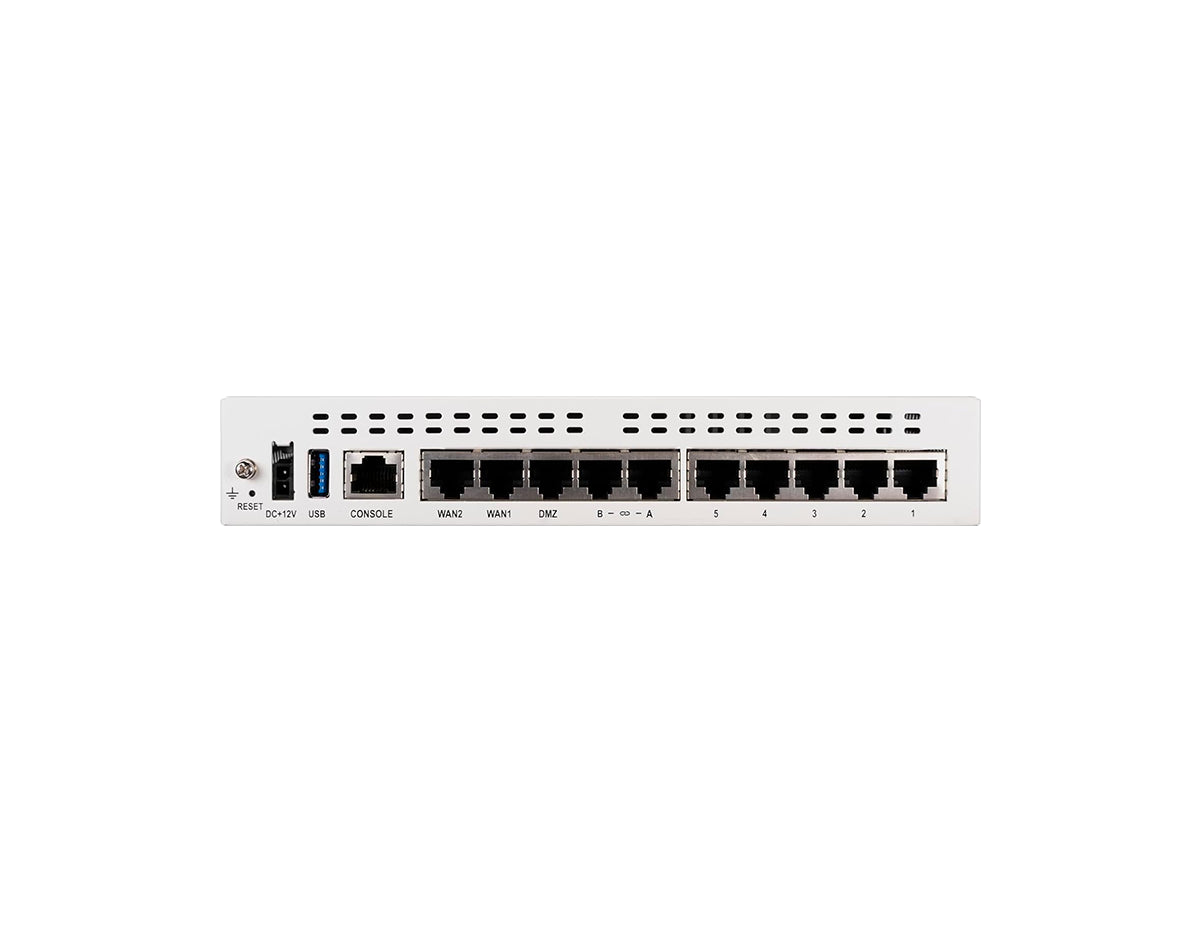

- Interface set: 10x GE RJ45 ports (2x WAN, 1x DMZ, 7x Internal including 2x FortiLink default), plus 1x USB and 1x RJ45 console.
- IPsec VPN capacity: 6.1 Gbps IPsec VPN throughput (512 byte), 200 gateway-to-gateway tunnels, 500 client-to-gateway tunnels.
- SSL performance: 405 Mbps SSL-VPN throughput, 700 Mbps SSL inspection throughput (IPS, avg. HTTPS).
- Power, acoustics, and size: 12VDC, 3A; 10.17 W / 12.43 W (avg / max); fanless 0 dBA; 1.5 x 8.5 x 6.3 in (38.5 x 216 x 160 mm), 2.23 lbs (1.01 kg).
Upgrade Your Network Security
Deploy the FortiGate 70F today for a compact, high-performance security solution that unifies networking and protection.
