FORTINET FG-7040E-DC FIREWALL

Accessories

FPM-7620E	Hot swappable processor module for 7000E series — SPU NP6 and CP9 hardware accelerated.
FPM-7630E	Hot swappable processor module for 7000E series — SPU NP6 and CP9 hardware accelerated.
FIM-7901E	Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports and 34x 10 GE SFP+ slots.
FIM-7904E	Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 8x 40 GE QSFP+.
FIM-7910E	Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 4x 100 GE CFP2 slots.
FIM-7920E	Hot swappable I/O module for 7000E series — 4x GE RJ45 management ports, 2x 10 GE SFP+ slots and 4x 100 G QSFP28 slots.
FG-TRAN-CFP2-SR10	100 GE CFP2 transceivers, 10 channel parallel fiber, short range for all systems with CFP2 slots. 100 GE CFP2 transceivers, long range, over single mode fiber, for all systems with CFP2 slots. 40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
FG-TRAN-CFP2-LR4	100 GE CFP2 transceivers, long range, over single mode fiber, for all systems with CFP2 slots.
FG-TRAN-QSFP+SR	40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
FG-TRAN-QSFP+LR	40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
FG-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
FG-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
FS-TRAN-SFP+GC	10 GE copper SFP+ RJ45 transceiver. For FortiSwitch only, up to 30m.
FG-TRAN-QSFP28-SR4	100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
FG-TRAN-QSFP28-LR4	100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots.

Specifications

System Performance
Firewall Throughput (1518 / 512 / 64 byte, UDP)	315 / 310 / 200 Gbps
Firewall Latency (64 byte UDP packets)	7.00 μs
Firewall Throughput (Packets Per Second)	300 Mpps
Concurrent Sessions (TCP)	160 Million
New Sessions/Second (TCP)	950.000
Firewall Policies	200.000
IPsec VPN Throughput (512 byte packets)	100Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40000
Client-to-Gateway IPsec VPN Tunnels	64000
SSL-VPN Throughput	N/A
Concurrent SSL-VPN Users (Recommended Maximum)	N/A
SSL Inspection Throughput	50 Gbps
Application Control Throughput	80 Gbps
IPS Throughput	140 / 60 Gbps
NGFW Throughput	50 Gbps
Threat Protection Throughput	40 Gbps
CAPWAP Throughput	N/A
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiAPs (Total / Tunnel Mode)	N/A
High Availability Configurations	Supported

Properties

Properties	FG-7040E-DC

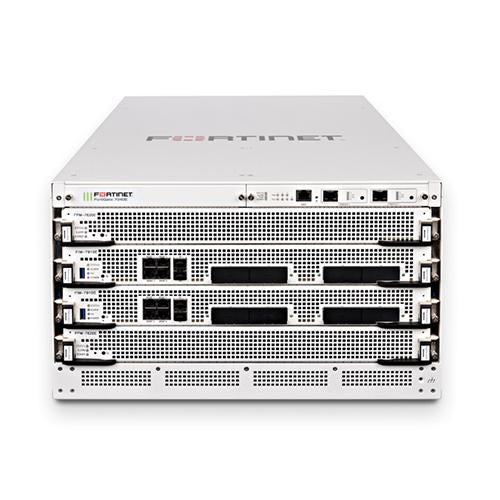

Description	Next Generation 6U 19-inch 4-slot rack mount chassis with 2x Fortinet Processor Modules (FPM) and 2x Fortinet Interface Modules (FIM). DC PSU.
Product Family	Chasis Based Firewalls
Product Type	Firewall
Fortinet Processor Module (FPM) Slots	2
Fortinet Interface Module (FIM) Slots	2
Shelf Manager	1
Dimensions in.	10.4 x 17.3 x 25.6
Form Factor	6 RU
Power Required	AC (configured with 3 PSUs by default, optionally an additional PSU can be added for redundancy)
Maximum Current	AC:12A@100V, 10A@240V DC:30A per feed (2+2)
Power Consumption (Average / Maximum)	2500 / 1800 W
Operating Temperature	32–104°F (0–40°C)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
