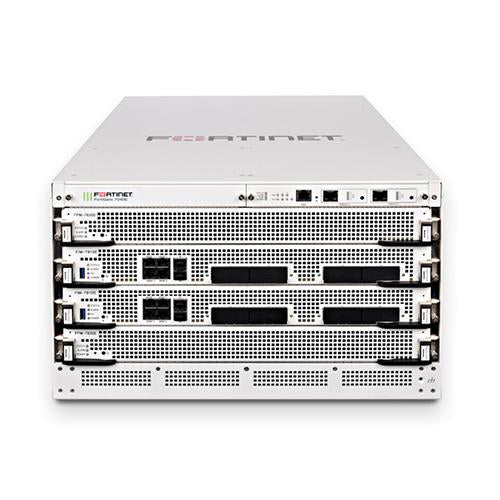

Fortinet FG-7040E-8 Firewall

Name: Fortinet FG-7040E-8 Firewall
Brand: Fortinet
Price: 218280.0 USD
Availability: InStock

Part Number: FG-7040E-8

Technical Details

6U 4-slot chassis with 2x FPM-7620E Processor Modules, 2x FIM-79xxE-C specified at purchase, 1x Manager Module and 3x hot swappable redundant PSU

$218,280.00

Net 30 or as low as $/month

Apply Now

Product & Solutions Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

6U 4-slot chassis with 2x FPM-7620E Processor Modules, 2x FIM-79xxE-C specified at purchase, 1x Manager Module and 3x hot swappable redundant PSU

Properties

Properties	FG-7040E-8
Description	6U 4-slot chassis with 2x FPM-7620E processor modules, 2x FIM-79xxE-C specified at purchase, 1x manager module and 3x hot swappable redundant PSU.
Product Family	Chasis Based Firewalls
Product Type	Firewall
Fortinet Processor Module (FPM) Slots	2
Fortinet Interface Module (FIM) Slots	1
Shelf Manager	1

Specifications

System Performance
Firewall Throughput (1518 / 512 / 64 byte, UDP)	315 / 310 / 200 Gbps
Firewall Latency (64 byte UDP packets)	7.00 Î¼s
Firewall Throughput (Packets Per Second)	300 Mpps
Concurrent Sessions (TCP)	160 Million
New Sessions/Second (TCP)	900.000
Firewall Policies	200.000
IPsec VPN Throughput (512 byte packets)	100Gbps
Gateway-to-Gateway IPsec VPN Tunnels	16000
Client-to-Gateway IPsec VPN Tunnels	64000
SSL-VPN Throughput	15 Gbps
Concurrent SSL-VPN Users (Recommended Maximum)	48000
SSL Inspection Throughput	39.9 / 60 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	32 500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	12 Million
Application Control Throughput	80 Gbps
IPS Throughput	60 / 100 Gbps
NGFW Throughput	50/60 Gbps
Threat Protection Throughput	40 / 48 Gbps
CAPWAP Throughput	N/A
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	N/A
High Availability Configurations	Active/Active (FGSP), Active/Passive, Clustering
Dimensions in.	10.5 x 17.3 x 25.6
Form Factor	6 RU
Power Required	100240V AC, 5060 Hz
Maximum Current	AC:12A@100V, 10A@240V DC:30A per feed (2+2)
Power Consumption (Average / Maximum)	2500 / 1800 W
Operating Temperature	32104°F (040°C)
Certifications	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
