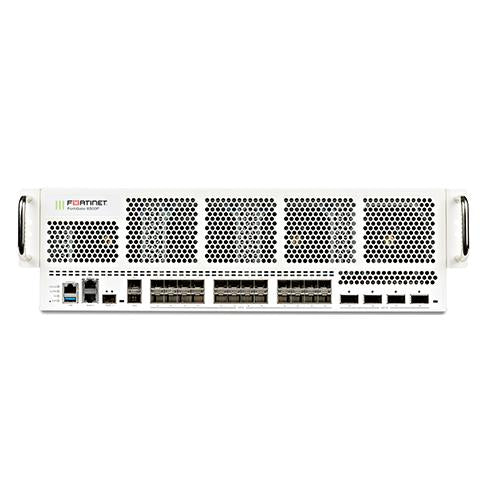

Model: | FG-6500F |
Detail: |
|
List Price: | |
Price: | $187,819.76 |
You Save: | $92,508.24 (33% OFF) |
Condition: | Brand New Sealed |
Availability: | SPECIAL ORDER |
Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
Tax: | $0.00 Tax Outside NJ and TX |
Quantity: |
4 x 100/40GE QSFP28 slots, 24 x 25/10GE SFP+ slots, 2 x 1GE RJ45 management ports, 2x 10GE SFP+ HA ports, 1x 10GE SFP+ MGMT port and 3 x AC power supplies
SP-FG4000F-PS |
2000W AC power supply for 4000F and 6000F series, does not include SP-FGPCORC15-XX power cord.
|
SP-FGPCORC15-XX |
6 ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F and 7000E/F Series
|
SP-FG4000F-DC-PS |
DC power supply for FG-4200F-DC/4201F-DC, FG-4400F-DC/4401F-DC and FG-6000F-DC.
|
SP-FG4K6K-FAN |
Spare Hotswappable Fan Module for FG-420xF/440xF/6000F.
|
FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
|
FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
FN-TRAN-SFP+BD27 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
|
FN-TRAN-SFP+BD33 |
10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
|
FN-TRAN-SFP28-SR |
25 GE SFP28 transceiver module, short range for all systems with SFP28 slots
|
FG-TRAN-SFP28-LR |
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
|
FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
FN-TRAN-QSFP28-SR |
100GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 Slots
|
FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 Slots.
|
FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
FN-TRAN-QSFP28-BIDI |
100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots.
|
FN-CABLE-SFP28-1 |
25 GE SFP28 passive direct attach cable 1m for systems with SFP28 slots.
|
FN-CABLE-SFP28-3 |
25 GE SFP28 passive direct attach cable 3m for systems with SFP28 slots.
|
FN-CABLE-SFP28-5 |
25 GE SFP28 passive direct attach cable 5m for systems with SFP28 slots.
|
FN-CABLE-QSFP28-4SFP28-1 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 1m
|
FN-CABLE-QSFP28-4SFP28-3 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 3m
|
FN-CABLE-QSFP28-4SFP28-5 |
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 5m
|
Firewall Throughput (1518 / 512 / 64 byte, UDP) | 239 / 238 / 135 Gbps |
Firewall Latency (64 byte UDP packets) | 4.80 μs |
Firewall Throughput (Packets Per Second) | 202.5 Mpps |
Concurrent Sessions (TCP) | 200 Million |
New Sessions/Second (TCP) | 3 Million |
Firewall Policies | 200.000 |
IPsec VPN Throughput (512 byte packets) | 160Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 16000 |
Client-to-Gateway IPsec VPN Tunnels | 90000 |
SSL-VPN Throughput | 9 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
SSL Inspection Throughput | 110 Gbps |
SSL Inspection CPS (IPS, avg. HTTPS) | 50000 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 18 Million |
Application Control Throughput | 220 Gbps |
IPS Throughput | 170 Gbps |
NGFW Throughput | 150 Gbps |
Threat Protection Throughput | 100 Gbps |
CAPWAP Throughput | N/A |
Virtual Domains (Default / Maximum) | 10 / 500 |
Maximum Number of FortiSwitches Supported | 256 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | N/A |
Maximum Number of FortiTokens | 20000 |
Maximum Number of Registered FortiClients | - |
High Availability Configurations | Active/Active (FGSP), Active/Passive, Clustering |
Dimensions in. | 5.3 x 17.2 x 27.3 |
Form Factor | Rack Mount, 3RU |
Power Required | 100240V AC, 5060 Hz |
Maximum Current |
AC:30A@100VAC, 20A@240VAC
DC:25-32A (x2) |
Power Consumption (Average / Maximum) | 1,308 W / 1,548 W 1,328 W / 1,568 W |
Operating Temperature | 32104°F (040°C) |
Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
Certifications | USGv6/IPv6 |
Properties | FG-6500F |
Description |
4x 40/100 GE QSFP28 slots, 24x 1/10/25 GE SFP28 slots, 2x 1 GE RJ45 management ports, 2x 10 GE SFP+ HA ports, 1x 1/10 GE SFP+ management port, and 3x AC power supplies.
|
Product Family | Ultra High-End Firewalls |
Product Type | Firewall |
GE RJ45 Ports | - |
GE RJ45 Management/DMZ/HA Ports | 2 |
40/100 GE QSFP28 Slots | 4 |
1/10/25 GE SFP28 Slots |
24 |
10 GE SFP Slots | 3 |
USB Port | 1 |
Console (RJ45) | 1 |
Internal Storage | - |
Included Transceivers | 2x SFP+ (SR 10GE) |
