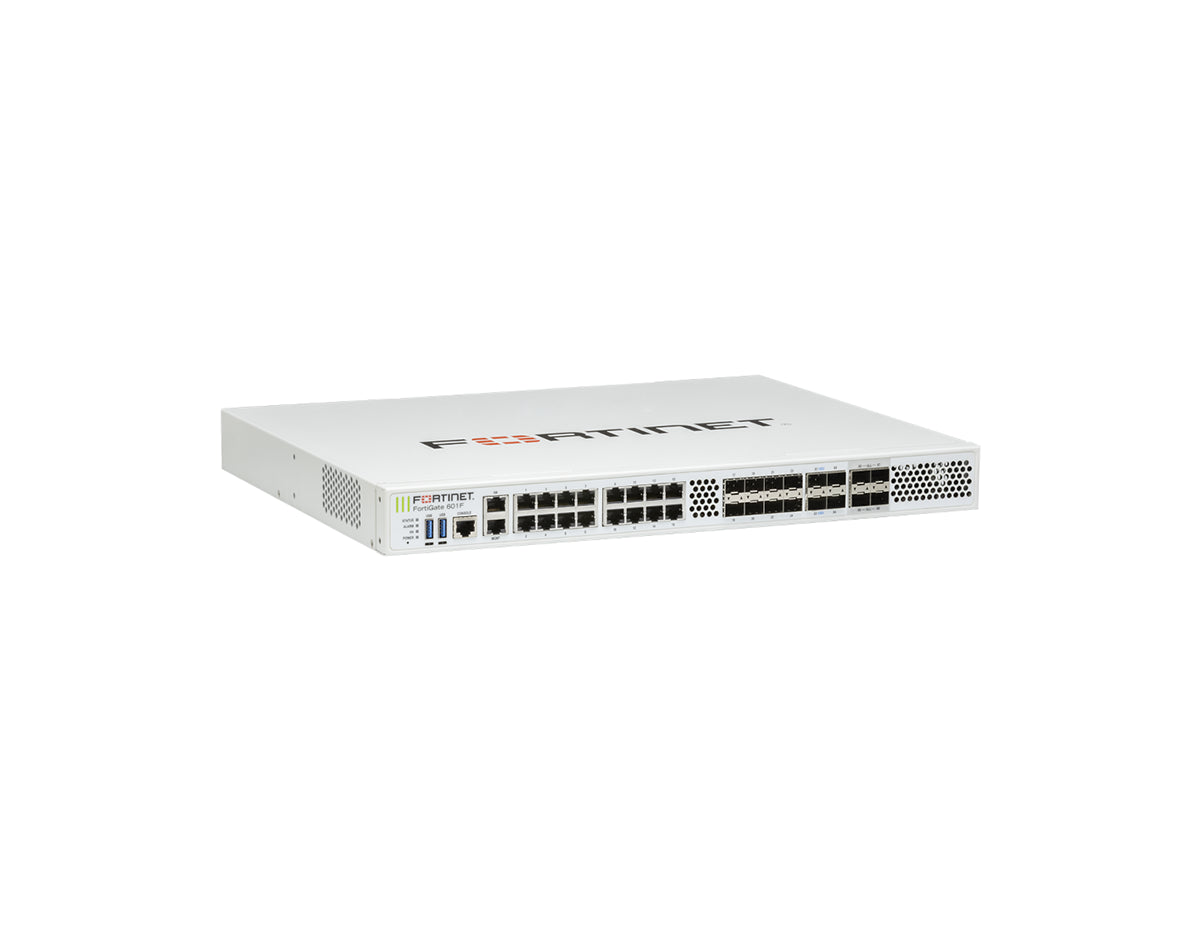

The Fortinet FortiGate 601F is a high-performance Next-Generation Firewall engineered to secure large enterprises and data center environments. Leveraging Fortinet's custom SPU NP7 (Network Processor) and CP9 (Content Processor) hardware, the FG-601F delivers throughput for firewall, IPS (14 Gbps), and IPsec VPN (55 Gbps) functions to help maintain security inspection performance at scale. The inclusion of 480 GB (2 x 240 GB) of onboard SSD storage provides capacity for local logging and reporting. The FG-601F-BDL-809-36 bundle includes the FortiGate 601F firewall with FortiCare Premium and FortiGuard Enterprise Protection for a 3 Year term.
The 601F’s extensive interface configuration, featuring 4x 25GE SFP28 and 4x 10GE SFP+ ports, offers connectivity density and flexibility for modern high-speed networks. Fully integrated into the Fortinet Security Fabric, this firewall provides unified threat management, comprehensive visibility, and centralized policy control, making it an ideal platform for implementing Secure SD-WAN and network segmentation across complex, distributed infrastructures.
Secure Networking with SPU-Accelerated Performance and Integrated 480 GB (2 x 240 GB) SSD Storage
Key Benefits
- Extreme Throughput: Achieves up to 139 Gbps firewall throughput and 14 Gbps IPS throughput, supporting demanding enterprise traffic.
- High-Speed Connectivity: Features 4x 25GE SFP28 and 4x 10GE SFP+ ports for high-bandwidth links.
- Integrated Storage: Includes 480 GB (2 x 240 GB) onboard SSD storage for local logging and reporting.
- Encrypted Visibility: Provides 9 Gbps of SSL Inspection throughput (IPS, avg. HTTPS) to secure encrypted traffic.
- Maximum Capacity: Supports up to 8 million concurrent sessions and 30,000 firewall policies for large-scale deployments.

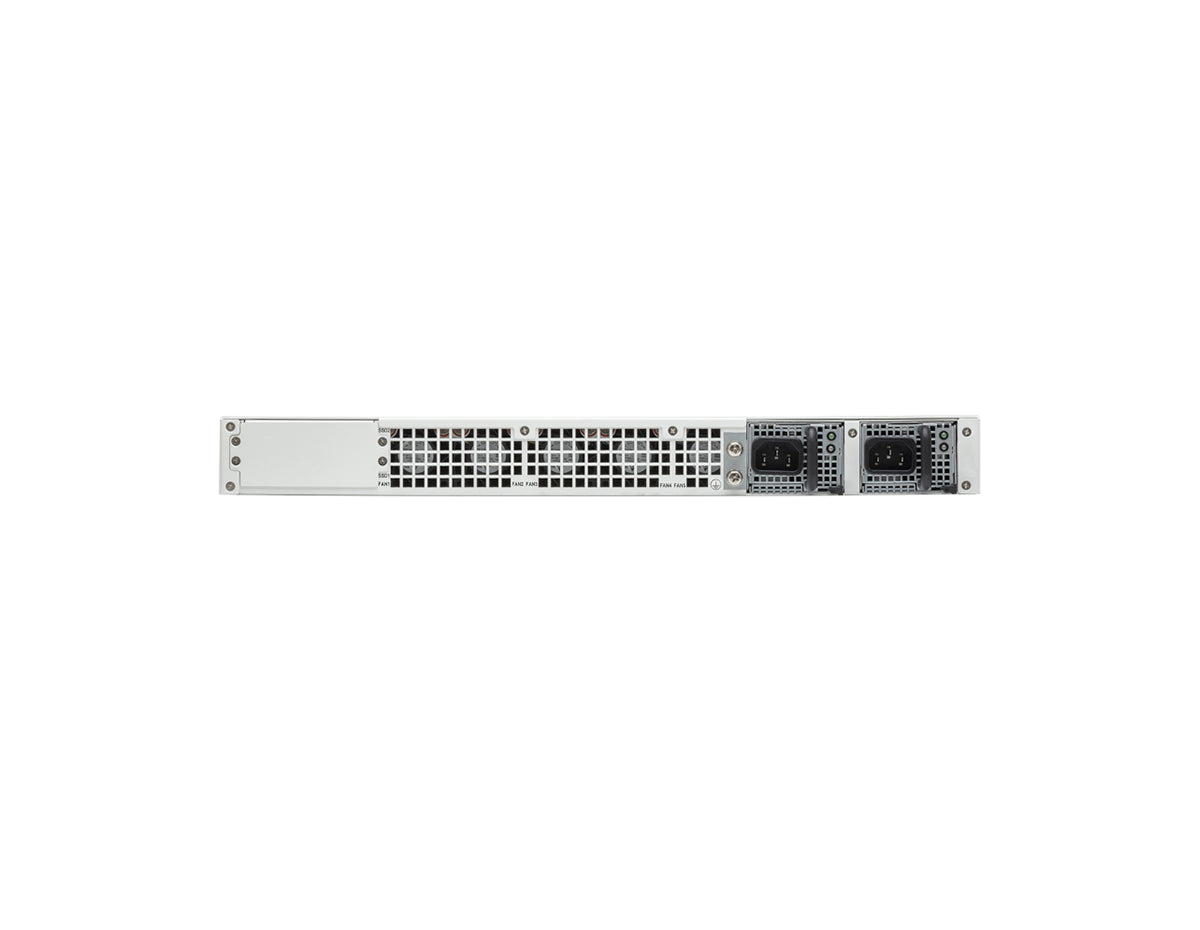

- Mission-Critical Reliability: Includes dual hot-swappable power supplies for operational resilience.
Ideal Use Cases
- Data Center Edge Security: Protecting high-throughput core infrastructure with 25GE connections.
- Enterprise Campus Security: Securing the network perimeter for large organizations requiring dense port configurations.
- Consolidated SD-WAN: Deploying Secure SD-WAN in a single platform with SPU-accelerated networking and security.
- High-Speed Segmentation: Implementing internal network segmentation using high-density GE and SFP ports to contain threats.
Technical Specifications Summary
- Form Factor & Size: Rack Mount, 1 RU; 1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm); 16.2 lbs (7.35 kg)

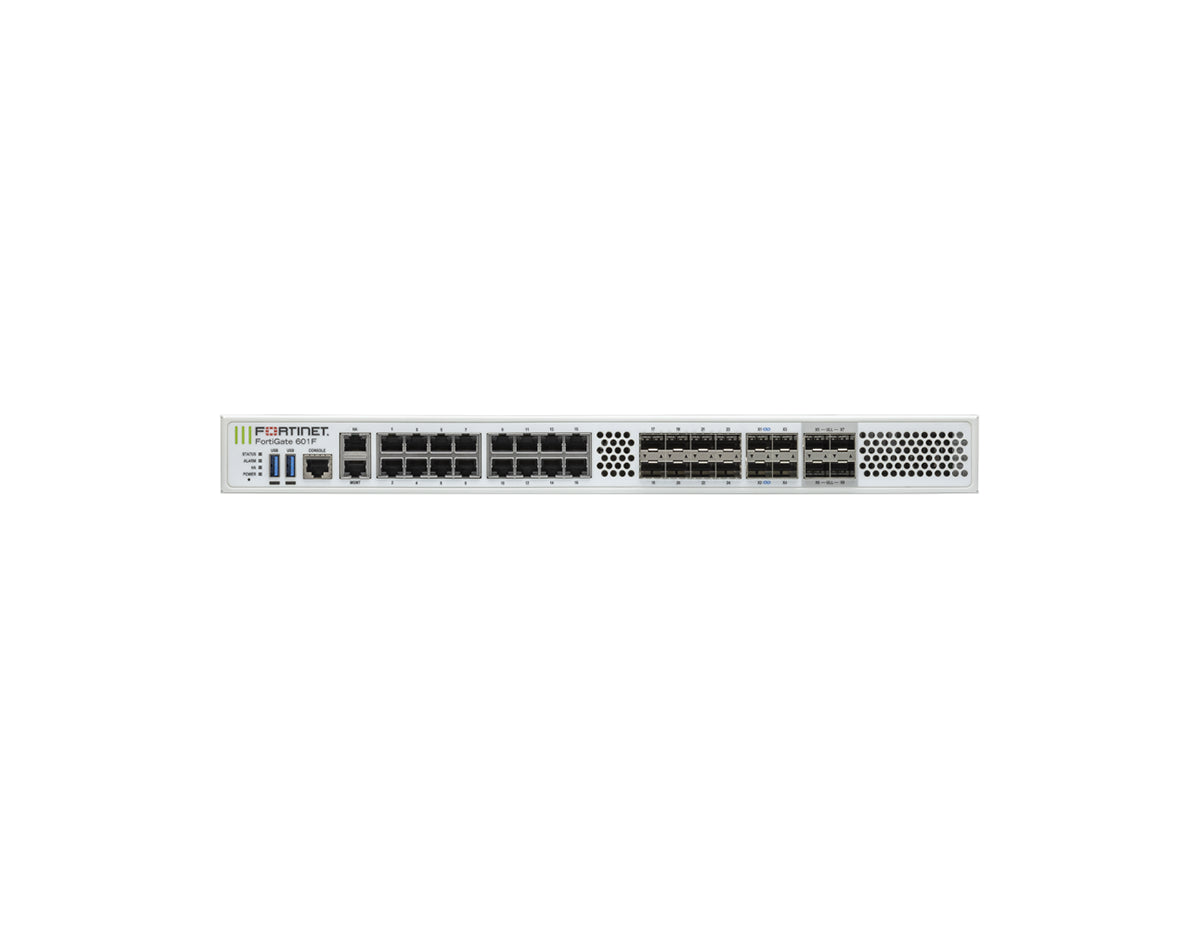

- Interfaces: 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP, 16x GE RJ45 switch ports, 2x GE RJ45 MGMT/HA ports, 1x RJ45 console, 2x USB
- Internal Storage: 480 GB (2 x 240 GB SSD)
- Firewall Performance: 139 / 137.5 / 70 Gbps (1518/512/64 byte, UDP); 105 Mpps; latency 4.12 μs / 2.5 μs (ULL ports)
- Security Performance: IPS 14 Gbps; NGFW 11.5 Gbps; Threat Protection 10.5 Gbps
- VPN Performance: 55 Gbps (IPsec, 512 byte); 4.3 Gbps SSL-VPN
- SSL Inspection: 9 Gbps (IPS, avg. HTTPS)
- Capacity: 8 Million concurrent sessions; 550,000 new sessions/second; 30,000 firewall policies
- Power & Environment: 174 W / 260 W (Average/Maximum); 888 BTU/h; 32°F to 104°F (0°C to 40°C); humidity 5% to 90% non-condensing; noise 55 dBA; Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; Certifications USGv6/IPv6
Upgrade Your Network Security
Future-proof your enterprise with the FortiGate 601F bundle FG-601F-BDL-809-36 today.
