FORTINET FG-601E FIREWALL
| Model: | FG-601E |
| Detail: |
|
| List Price: | |
| Price: | $10,498.00 |
| You Save: | $4,800.00 (31% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

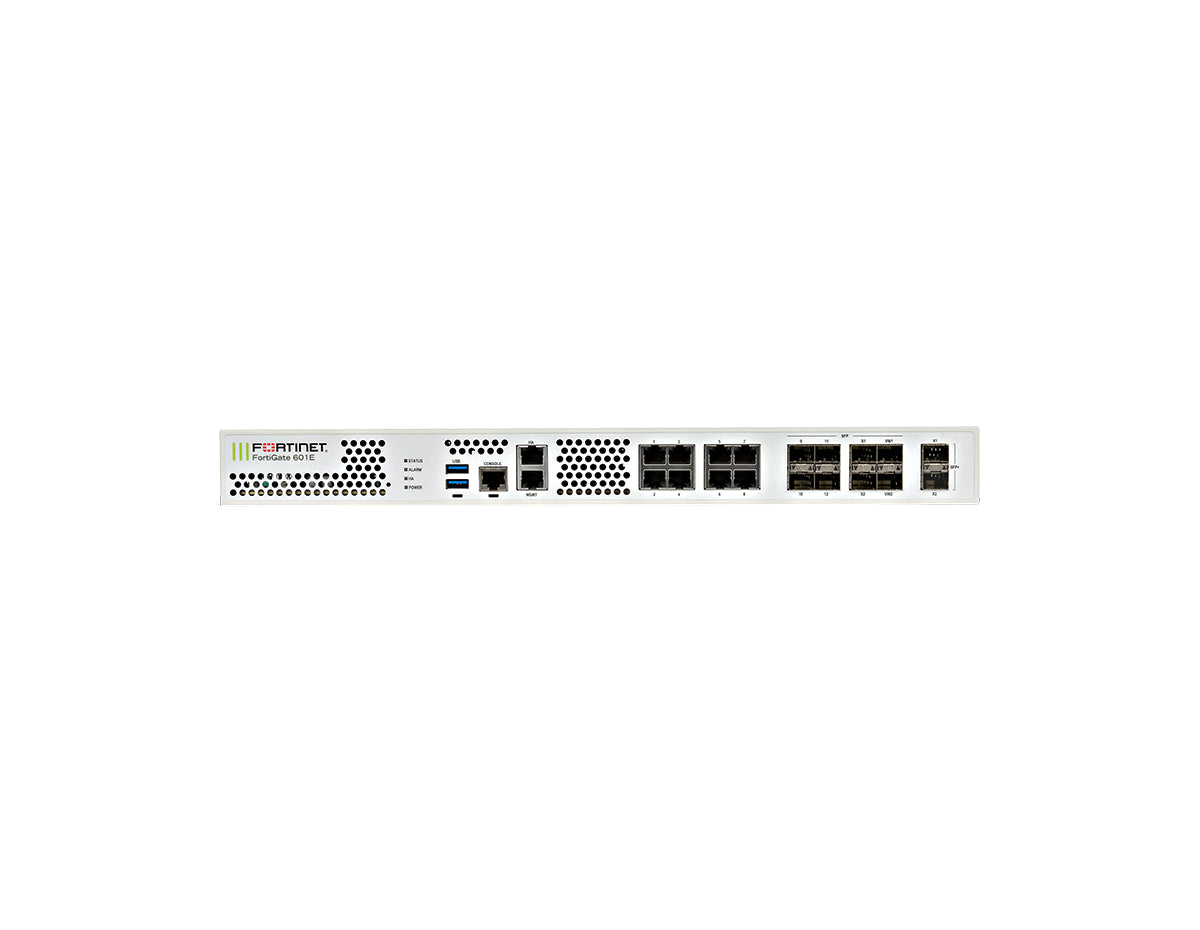

Fortinet FG-601E Firewall
The Fortinet FG-601E is a member of The FortiGate 600E Series. This product offers enhanced network visibility, enabling the identification of applications, users, and devices before they pose security risks. It is equipped with a diverse range of AI and machine learning security features integrated into a unified security fabric platform, ensuring comprehensive, in-depth, and automated secure networking. It provides advanced edge protection, encompassing web, content, and device security, as well as network segmentation and secure SD-WAN to simplify and mitigate risks in hybrid IT networks.
Quick Specs:
- Firewall Throughput: 40.5 Mpps
- NGFW
- 2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports)
- 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated
- 2x 240 GB onboard SSD storage.
Please see the related tabs for the FG-601E datasheet and compatible accessories.
Accessories
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
|
| SP-FG300E-PS |
AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F.
|
Specifications
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 27 Gbps |
| Firewall Latency (64 byte UDP packets) | 1.54 μs |
| Firewall Throughput (Packets Per Second) | 40.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 450.000 |
| Firewall Policies | 10.000 |
| IPsec VPN Throughput (512 byte packets) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50000 |
| SSL-VPN Throughput | 7 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 10000 |
| SSL Inspection Throughput | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 5500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 800000 |
| Application Control Throughput | 15 Gbps |
| IPS Throughput | 10 Gbps |
| NGFW Throughput | 9.5 Gbps |
| Threat Protection Throughput | 7 Gbps |
| CAPWAP Throughput | 18 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Operating Temperature | 32–104°F (0–40°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
Properties
| Properties | FG-601E |
| Description |
2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage.
|
| Product Family | Mid Range Firewalls |
| Product Type | Firewall |
| GE RJ45 Interfaces | 8 |
| GE RJ45 Management Ports | 2 |
| 10 GE SFP+ Slots | 2 |
| GE SFP Slots | 8 |
| USB Port | 2 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Local Storage | 2x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| Form Factor | Rack Mount, 1 RU |
| Power Required | 100–240V AC, 50–60 Hz |
| Maximum Current | 6A@100V |
| Power Consumption (Average / Maximum) | 129 W / 244 W |
| Dimensions in. | 1.75 x 17.0 x 15.0 |
