FORTINET FG-600F FIREWALL
| Model: | FG-600F |
| Detail: |
|
| List Price: | |
| Price: | $12,896.10 |
| You Save: | $5,526.90 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

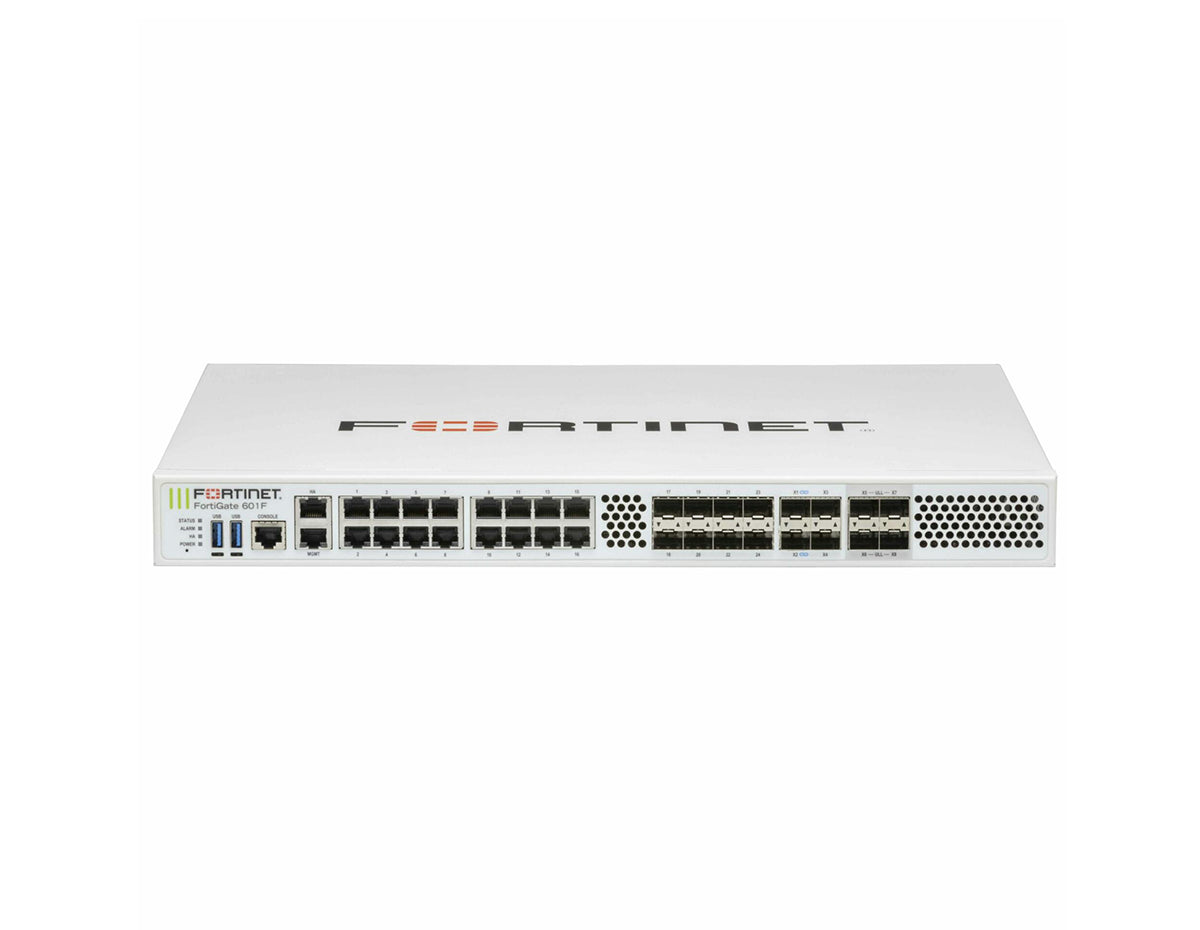

Fortinet FG-600F Firewall
The FG-600F is a NGFW with Universal ZTNA which enables automated control of user access regardless of their location. The FG-600F provides dynamic segmentation that delivers end-to-end security even across multi-cloud environments. It is equipped with a purpose-built security processor SPU which can deliver power up to 520 Gbps, making it the perfect security solution for your enterprise. It also includes 2x SFP (SX 1 GE) transceivers.
Quick Specs:
- Firewall Throughput: 105 Mpps
- Ultra-Fast Threat Protection
- 16x GE RJ45 ports
- 8x GE SFP ports + 4x 10GE SFP+ ports + 4x 25GE SFP28/10GE SFP+ Ultra Low Latency Slots
Please see the related tabs for the FG-600F datasheet and compatible accessories.
Accessories
| Optional Accessories | |
| FN-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
| FN-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots. |
| FN-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
| FN-TRAN-SFP+GC | 10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots |
| FN-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots. |
| FN-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
| FN-TRAN-SFP+ER | 10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots |
| FN-TRAN-SFP+BD27 | 10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately) |
| FN-TRAN-SFP+BD33 | 10GE SFP+ transceiver module, 30KM long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately) |
| FN-TRAN-SFP28-SR | 25GE/10GE Dual Rate SFP28 transceiver module, short range for all systems with SFP28/SFP+ slots |
| FN-TRAN-SFP28-LR | 25GE SFP28 transceiver module, long range for all systems with SFP28 slots |
| SP-FG400F-PS | AC power supply for FG-400/401F, FG-600/601F, power cable SP-FGPCOR-XX sold separately. |
Specifications
| Specifications | Fortinet FG-600F Firewall |
| Interfaces and Modules | |
| Hardware Accelerated GE RJ45 Interfaces | 16 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated 10GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated 25GE SFP28/ 10GE SFP+ Ultra Low Latency Slots | 4 |
| GE RJ45 MGMT/HA Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Onboard Storage | 0 |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 14 Gbps (IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled.) |
| NGFW Throughput | 11.5 Gbps IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled. NGFW performance is measured with Firewall, IPS and Application Control enabled. |
| Threat Protection Throughput | 10.5 Gbps IPS (Enterprise Mix), Application Control, NGFW, and Threat Protection are measured with Logging enabled. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled. |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
139 / 137.5 / 70 Gbps |
| Firewall Latency (64 byte, UDP) | 4.12 μs / 2.5 μs ( Latency based on Ultra Low Latency (ULL ports)) |
| Firewall Throughput (Packet per Second) | 105 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 550 000 |
| Firewall Policies | 10 000 |
| IPsec VPN Throughput (512 byte) (IPsec VPN performance test uses AES256-SHA256) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 |
| Client-to-Gateway IPsec VPN Tunnels | 50 000 |
| SSL-VPN Throughput (Uses RSA-2048 certificate) |
4.3 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10 000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) (SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
9 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) (SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
7500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) (SSL Inspection performance values use an average of HTTPS sessions of different cipher suites) |
840 000 |
| Application Control Throughput (HTTP 64K)* *IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. |
32 Gbps |
| CAPWAP Throughput (HTTP 64K) | 64.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 96 |
| Maximum Number of FortiAPs (Total / Tunnel) |
1024 / 512 |
| Maximum Number of FortiTokens | 5000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) | 44.45 x 432 x 380 |
| Weight | 15.6 lbs (7.1 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 1 RU |
| AC Power Consumption (Average / Maximum) |
169 W / 255 W |
| AC Power Input | 100–240V AC, 50/60Hz |
| AC Current (Maximum) | 6A@100V |
| Heat Dissipation | 871 BTU/h |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Operating Environment and Certifications | |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Storage Temperature | -31°–158°F (-35°–70°C) |
| Humidity | 5%–90% non-condensing |
| Noise Level | 55 dBA |
| Airflow | Side and Front to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB |
| Certifications | USGv6/IPv6 |
Properties
| Properties | Fortinet FG-600F Firewall |
| Description | 4x 25G SFP28 slots, 4 x 10GE SFP+ slots, 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies. |
| Product Family | FortiGate 600F Series |
| Product Type | Firewall |
